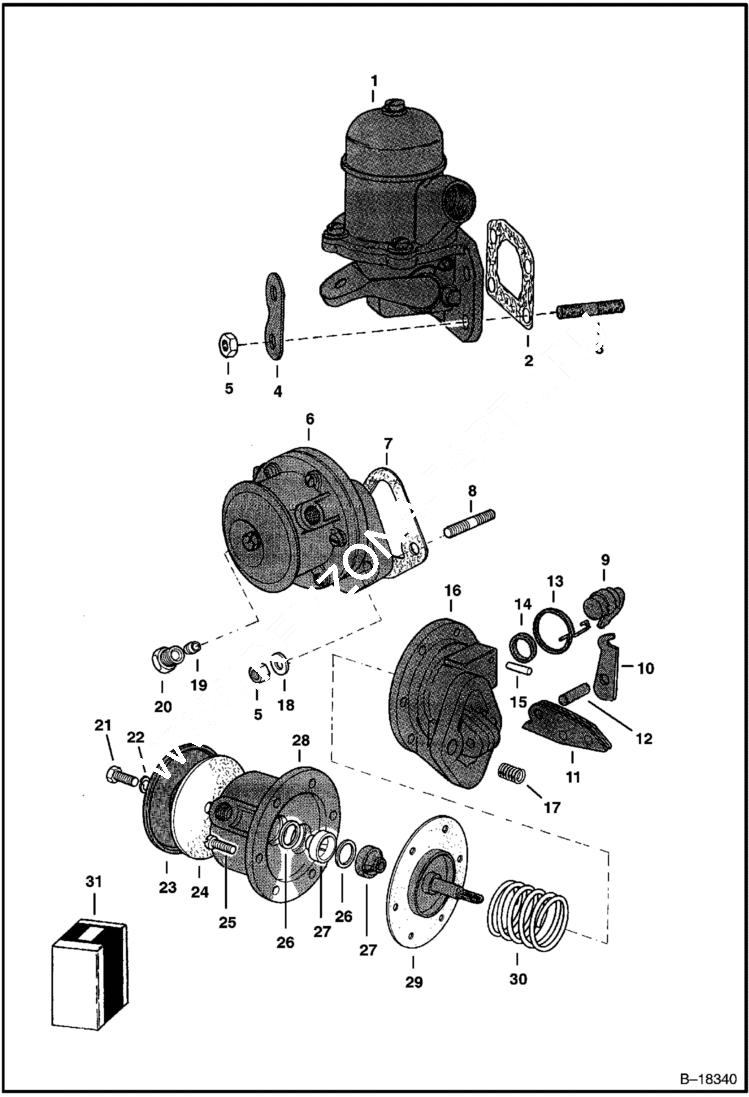

Запчасти Bobcat 900s FUEL PUMP (Perkins) POWER UNIT

1

PUMP NLA - Order 6630862 - (Spec LD 22557) - Was 6510283 - A

1

6630862

PUMP

2

6510282

GASKET

3

3726840

STUD

4

6510284

PLATE retainer

5

3490194

NUT

6

6515748

PUMP (Spec. LD 22557)

7

6668045

GASKET Was 6515751 - A

8

3726846

STUD Was 3725636 - A

9

3725631

PRIMER fuel oil

10

LEVER NSS

11

ARM NLA

12

PIN NSS

13

3725632

SPRING

14

WASHER NLA - Was 3820228 - A

15

3725633

PIN

16

BODY NLA

17

SPRING NSS

18

3727372

WASHER plain

19

57F3

SLEEVE

20

3490354

NUT inlet port

21

BOLT NLA

22

WASHER NSS

23

COVER NLA

24

GASKET NSS - valve

25

BOLT NLA

26

GASKET NSS - valve

27

VALVE NSS

28

HEAD NLA

29

DIAPHRAGM NSS

30

SPRING NLA

31

997709

KIT repair - For 6510283 Pump

31

3725635

PUMP repair - For 6515748 Pump

31

3739248

PUMP KIT repair - For 6630862 Pump
