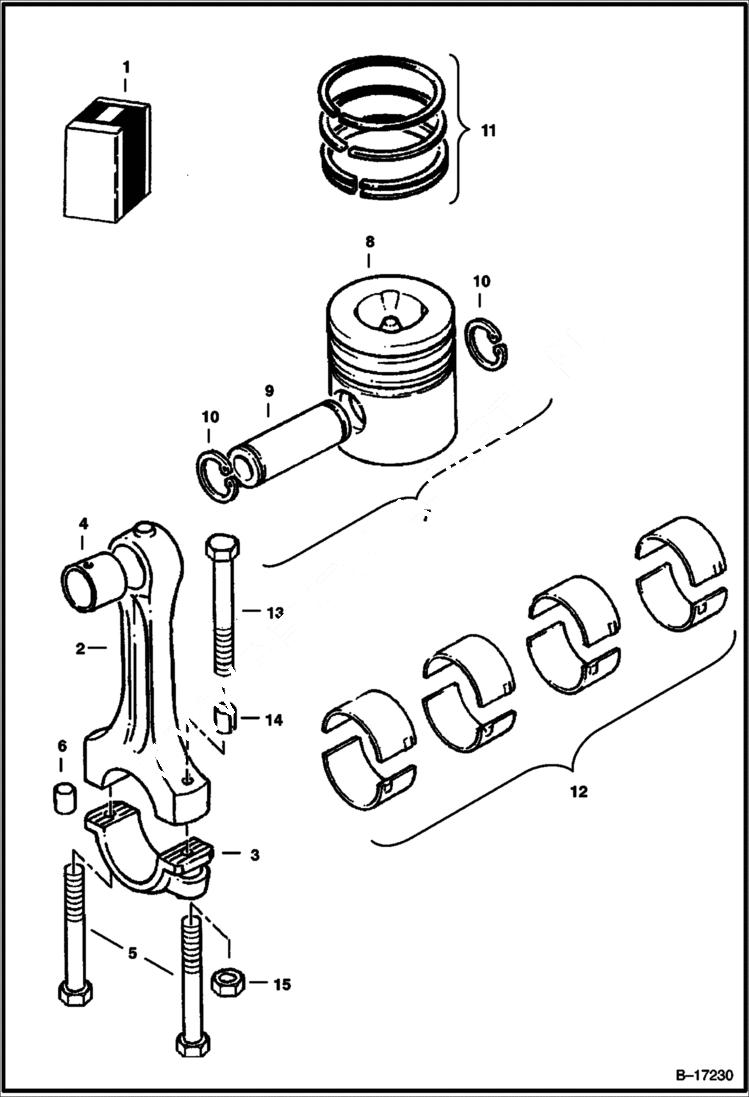

Запчасти Bobcat 900s CONNECTING ROD & PISTON POWER UNIT

1

6672179

KIT Rod, Connecting - W/Ref. 2 - 6

1

93152-7

ROD Rod, connecting - W/Ref. 2, 3 & 13-15 - Was 6675910 - A

2

ROD NSS - Connecting - Order Ref. 1

3

CAP NSS - Connecting - Order Ref. 1

4

6672180

BUSHING

5

6670883

BOLT

6

6670884

PIN Dowel

7

PISTON NLA - High Grade - W/Ref. 8-10 - Order 6670885 - Was 6672286 - A

7

6670885

PISTON Low Grade - W/Ref. 8-10 - Was 6671133 - A

8

PISTON NSS - Order Ref. 7

9

PIN NSS - Order Ref. 7

10

6670886

RETAINER

11

6670887

KIT Rings - Std. - For One Piston

12

6668226

KIT rod bearing - std. - set of 8 halves - some bearings come W/O notches

12

6668227

KIT Rod Bearing - (-) 0.25mm - Set of 8 Halves

12

6668228

KIT Rod Bearing - (-) 0.50mm - Set of 8 Halves

12

6668229

KIT Rod Bearing - (-) 0.75mm - Set of 8 Halves

13

6515679

SCREW

14

6675834

THIMBLE

15

6599646

NUT
