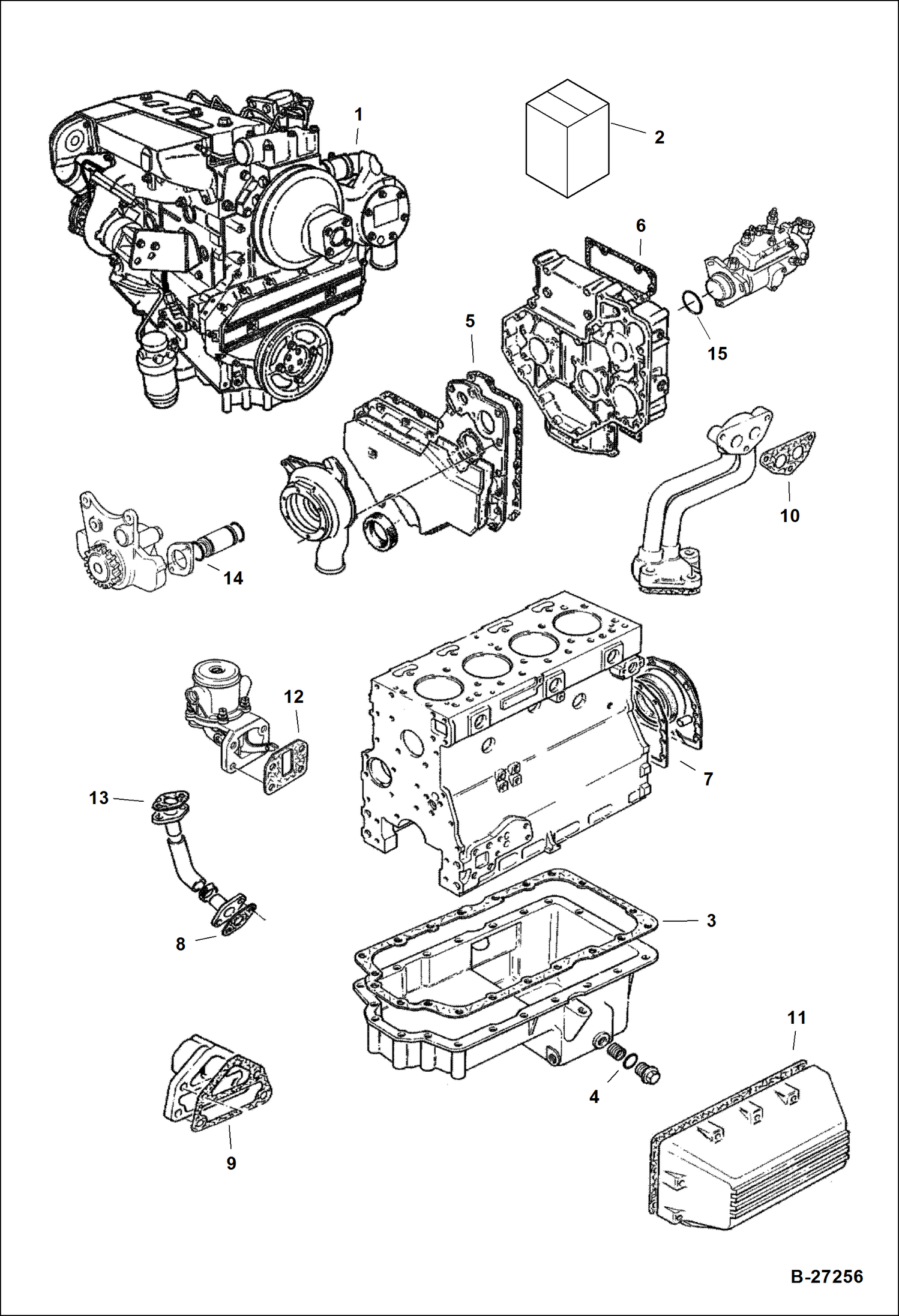

Запчасти Bobcat 900s ENGINE & LOWER GASKET KIT POWER UNIT

1

ENGINE NLA - Order 6669595REM or 6686580 long block kit - Was 6669595 - A

1

6669595REM

ENGINE, PERKINS 1004-40T does not include starter, alternator, flywheel, pump mount or turbo

1

6672270

SHORT BLOCK engine - includes plugs, cylinder block, liner, crankshaft, connecting rods, main bearings, big end bearing, thrust washer, seal & housing

2

6672166

GASKET KIT lower - W/Ref. 3-16

3

3727656

GSKT See Illustration LUBRICATION SYSTEM/ B17234 - oil pan

4

6649447

O-RING See Illustration LUBRICATION SYSTEM/ B17234 - drain plug

5

6670915

GASKET See Illustration TIMING GEARS/ B17232 - damper

6

6668257

GASKET See Illustration TIMING GEARS/ B17232 - cover

7

6674359

GASKET See Illustration CYLINDER BLOCK/ B17226 - rear cover

8

6668578

GASKET See Illustration TURBO CHARGER - MANIFOLD EXHAUST/ B17241 turbo hose

9

6668510

GASKET See Illustration FILTER OIL - COOLER OIL/ B17236 adapter

10

6668529

GASKET See Illustration FILTER OIL - COOLER OIL/ B17236 pipe

11

6668522

GASKET See Illustration FILTER OIL - COOLER OIL/ B17236 cover

12

6668035

GASKET See Illustration FUEL PUMP/ B17244 fuel pump

13

6670980

GASKET See Illustration TURBO CHARGER - MANIFOLD EXHAUST/ B17241 turbo hose

14

6668289

O-RING See Illustration PUMP OIL - VALVE RELIEF/ B5537 pipe

15

6673114

O-RING See Illustration FUEL INJECTOR SYSTEM/ B15180 injection pump
