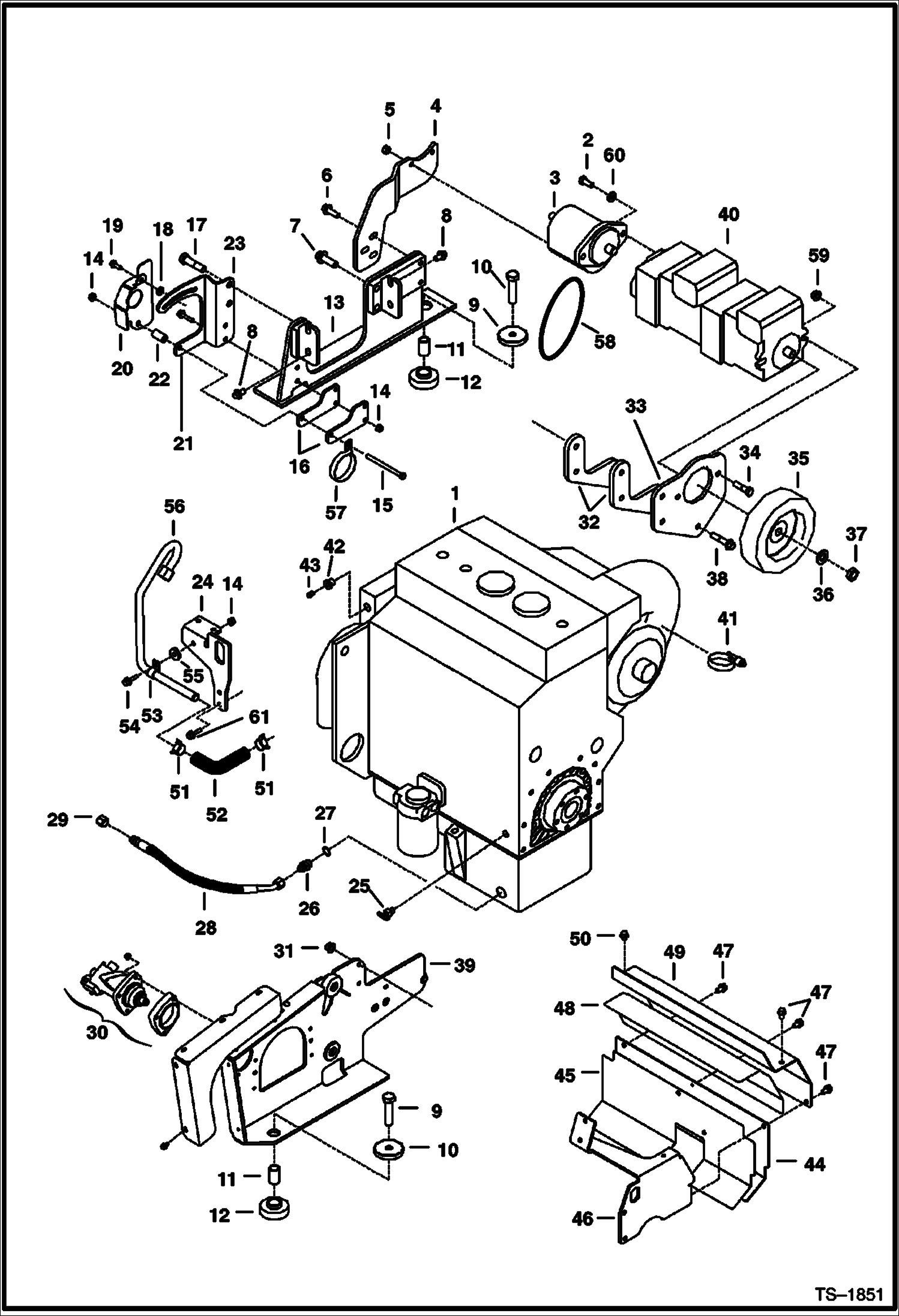

Запчасти Bobcat 900s ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

1

ENGINE See Illustration ENGINE & UPPER GASKET KIT/ B17225

2

17C820

BOLT

3

6668882

GEAR PUMP See Illustration GEAR PUMP/ B17556

4

6805023

MOUNT pump - Was 6596848 - C

5

1DM12

LOCK NUT

6

35C824

BOLT

7

29CM1650

BOLT

8

29CM1220

BOLT

9

6802984

WASHER

10

17C1248

BOLT

11

SPACER NLA - tube - 1.675'' long - Order 6806113 - Was 6803511 - A

11

6806113

SPACER tube - 1.75'' long

11

SPACER NLA - tube - 1.525'' long - Order 6806112 - Was 6804742 - A

11

6806112

SPACER tube - 1.60'' long

12

6661785

MOUNT, ENG

13

MOUNT ASSY NLA - front engine - Order 6811194 & 6805743 - Was 6596841 - A

14

57D6

NUT 5 Was 55D000006B - D

15

17C680

BOLT Was 35C000680B - A

16

6628129

PLATE alternator

17

1CM1665

SCREW

18

25E16

WSHR

19

35C520

BOLT

20

6803142

SHIELD alternator

21

35C624

BOLT

22

6803151

SPACER

23

6596840

BRACKET alternator

24

6800742

BRACKET

25

6513679

VALVE

26

15K6

ADAPTER

27

6571723

WASHER retainer

28

6805079

HOSE Was 6564639 - C

29

36K6

CAP

30

STARTER See Illustration STARTER/ E2395

31

55D8

NUT

32

6596847

MOUNT pump

33

6596846

MOUNT pump

34

17C832

BOLT

35

6800477

PULLEY pump

35

6805533

PULLEY pump

36

6576033

WASHER

36

6805550

WASHER

37

92D12

NUT

37

6805549

NUT

38

35C840

BOLT

39

MOUNT ASSY NLA - rear engine - Order 6805974 & 6805563 - Was 6800320 - A

40

PUMP See Illustration HYDROSTATIC PUMP/ C3237 - NLA - Order 6674238, 6805533, 6805550 & 6805549 - Was 6670816 - A

40

6674238

PUMP, HYD TANDEM

41

42HC250

CLAMP Was 6671626 - A

42

19F4

BUSHING

43

VALVE NLA - air bleed - Was 6672330 - A

44

6803434

SHIELD See Illustration ENGINE & ATTACHING PARTS/ TS1850 Lower heat-use only w/muffler 6669678 - Ref. 4

44

6804531

SHIELD See Illustration ENGINE & ATTACHING PARTS/ TS1850 Lower heat-use only w/ muffler 6672966 - Ref. 27

45

6803493

INSULATION lower

46

6804951

SHIELD See Illustration COOLING SYSTEM/ TS1854 - Was 6803433 - A

47

84G3712

BOLT 5

48

6803492

INSULATION upper

49

6803431

SHIELD See Illustration ENGINE & ATTACHING PARTS/ TS1850 - upper heat - use only w/muffler 6669678

49

6804530

SHIELD See Illustration ENGINE & ATTACHING PARTS/ TS1850 - upper heat - use only w/muffler 6672966

50

84G3708

SCREW

51

5HM29

HOSECLAMP Was 5HM00027B - C

52

6804081

HOSE breather

53

30H65

CLIP

54

35C620

BOLT 5

55

6704484

WASHER

56

6804047

TUBELINE See Illustration ENGINE & ATTACHING PARTS/ TS1850

57

30H60

CLIP

58

6617875

BELT alternator

59

55D8

NUT

60

6557929

WASHER

61

6668573

SCREW
