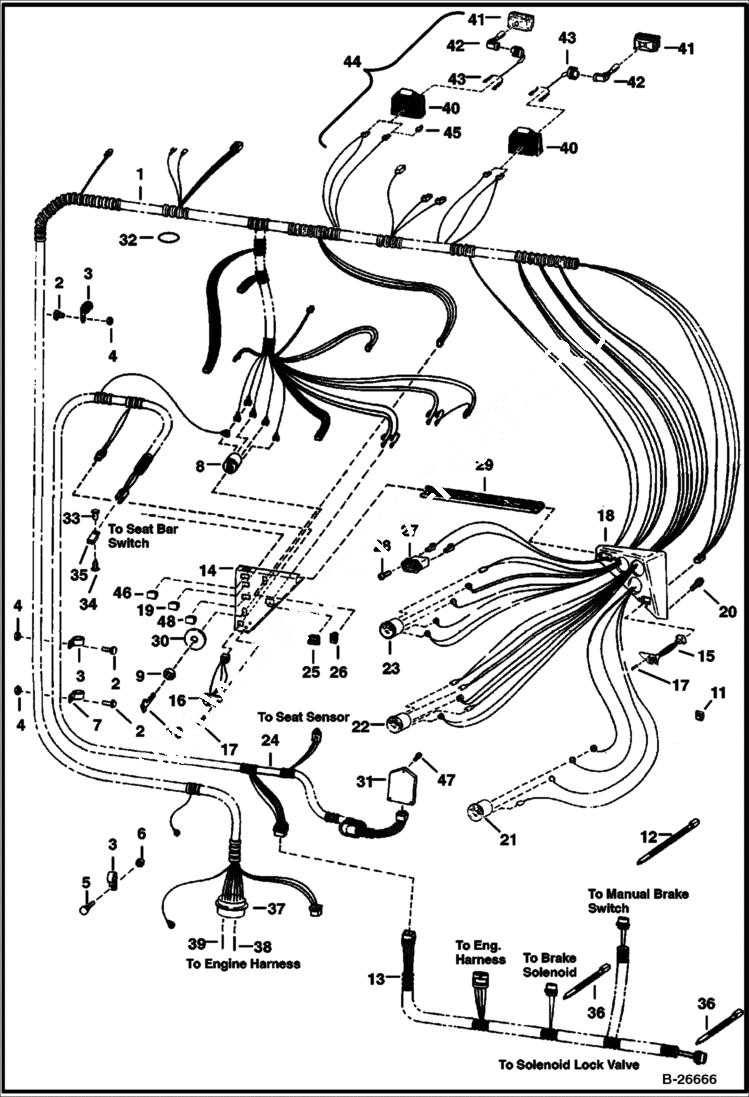

Запчасти Bobcat 900s CAB ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

1

6714617

HARNESS

2

35C410

BOLT 5

3

30H56

CLIP

4

83D4

NUT 10

5

35C412

BOLT

6

61D4

NUT 5

7

30H29

CLAMP

8

6665606

SWITCH ignition - W/Ref. 9 & 10

9

6674202

NUT Was 6598721 - B,D

10

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 67095277 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6660594

BUTTON on/off

12

6610510

TIE

13

6716073

HARNESS Was 6714279 - A

14

6712152

PANEL L.H.

15

6667904

SWITCH aux. controls module - W/Ref. 11 - 5 - pin connector

16

6667905

SWITCH traction override

16

SWITCH NLA - traction/seat sendor override - Order 6674220 - Was 6673005 - A

16

6674220

SWITCH, OVERRIDE TRACTION push to operate

17

6669225

BOLT

18

6706896

PANEL R.H.

19

6665314

PLUG rocker switch - Was 6719038 - A

20

6702642

SCREW

21

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

21

6669663

GAUGE eng temp - W/O clamp

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

6712135

HARNESS

25

6671036

LIGHT two speed

26

6636018

LIGHT indicator

27

6664886

HOURMETER

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

6709027

PLATE brake start

31

CONTROLLER NLA - W/traction lock - Order Kit 6717702 - Was 6668767 - A

31

6680445

CONTROLER Was 6674224 - A

32

6707674

PLUG round plugs - 1.28'' (32,5 mm) dia. hole in cab

33

6665321

RIVET plastic male

34

6665322

RIVET plastic female

35

6665000

CLIP

36

6665527

TIE never modify

37

6664584

CONNECTOR Also Order Ref. 38 & 39 - Was 6665683 - A

38

6664827

PIN

39

6664040

PIN

40

6578824

HOUSING rubber

41

6649478

BULB HOUSING

42

6667934

BULB

43

6578528

HARNESS light

44

6577801

LIGHT

45

6519548

CONNECTOR

46

6665410

SWITCH headlights

47

91G412

SCREW cross recess pan head

47

25G412

CAPSCRW10 hex socket button head

48

6668814

SWITCH bucket positioning on/off
