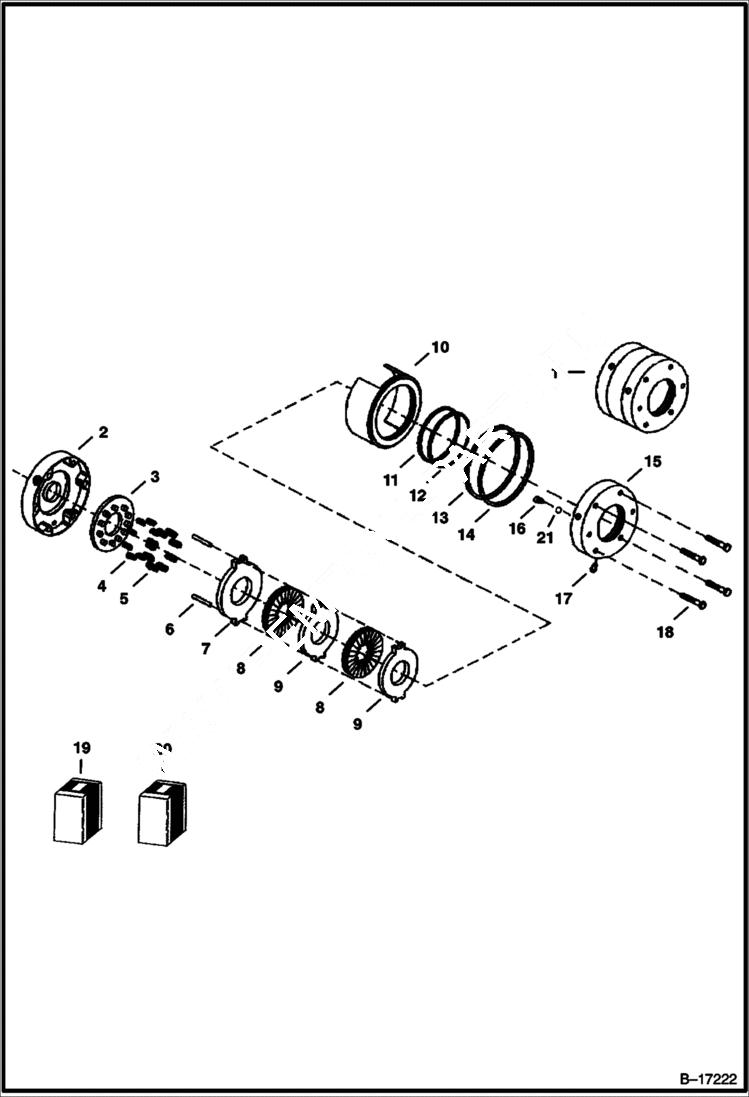

Запчасти Bobcat 900s DISC BRAKE (Ausco) (S/N 562211955 & Above, 516511094 & Above) HYDROSTATIC SYSTEM

1

6670157

BRAKE disc - Ref. 2 - 18

2

6675112

HOUSING

3

6675113

RETAINER spring

4

SPRING NSS - compression - Was 6675114 - A

5

SPRING NSS - compression - Was 6675115 - A

6

PIN NSS - torque - Was 6675119 - A

7

DISC NSS - primary - Was 6675117 - A

8

DISC NSS - rotating - Was 6675116 - A

9

DISC NSS - stationary - Was 6675118 - A

10

6675122

PISTON

11

O-RING NSS - Was 6675125 - A

12

BACKUP-RING NSS - Was 6675124 - A

13

O-RING NSS - Was 6675121 - A

14

BACKUP-RING NSS - Was 6675120 - A

15

6675123

PLATE power

16

6195215

BLEEDER bleeder - Was 6675127 - A

16

90K3

PLUG W/Ref. 21 - Was 90KV3 - D

17

PLUG NLA - Was 6675111 - A

18

6675126

BOLT

19

6675247

KIT o-ring - Ref. 11-14

20

6675248

KIT stack - Ref. 4-9

21

95K4

O-RING
