Запчасти Bobcat 900s DISC BRAKE (Mico) (S/N 562211954 & Below, 516511093 & Below) HYDROSTATIC SYSTEM

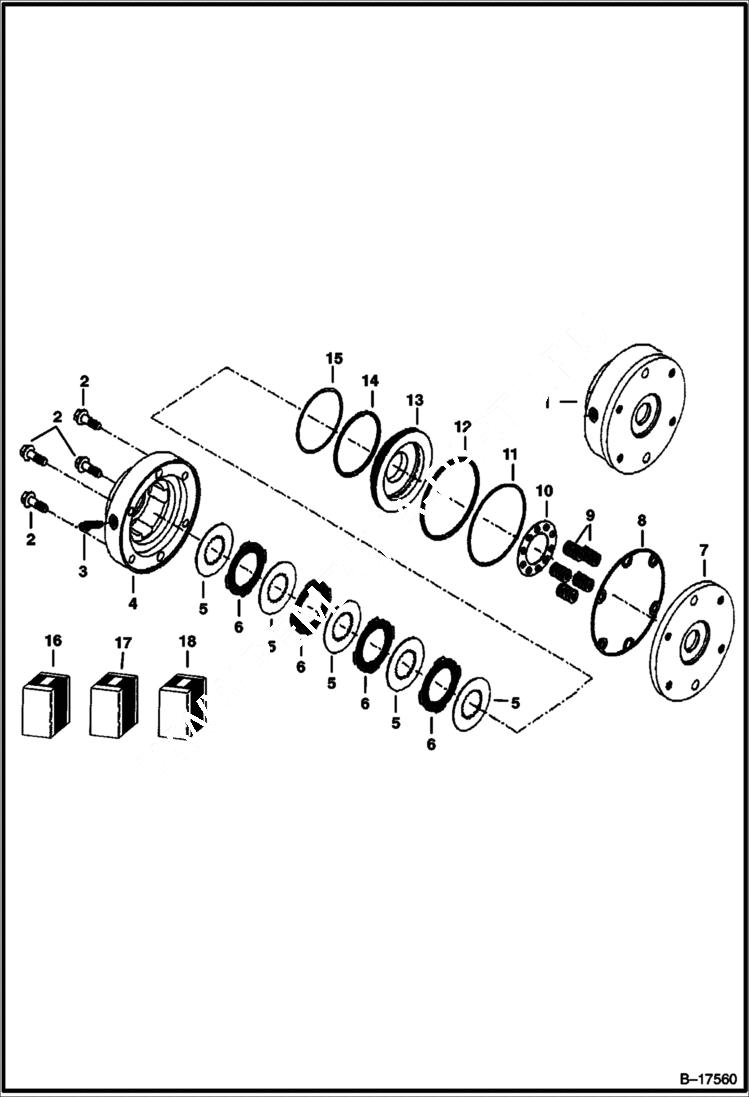

Схема запчастей Bobcat 900s - DISC BRAKE (Mico) (S/N 562211954 & Below, 516511093 & Below) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

BRAKE NLA - disc - Ref. 2 - 15 - Order 6670157 brake, 17C000860B bolt (2), 6701097 washer (2) & 6530862 hose (1) - Was 6670156 - A

1

BRAKE NLA - Order 6670157 brake, (2) 17C000860B bolt & (2) 6701097 washer

2

6672565

BOLT

3

6632021

SCREW bleeder - Was 6672566 - A

4

6672567

HOUSING

5

6672569

PLATE friction

6

6672568

DISC

7

6672578

COVER

8

SEAL NLA - Order 6672581 - Was 6672577 - A

9

6672576

SPRING

10

6672575

GUIDE spring

11

6672574

O-RING back-up

12

6672573

O-RING

13

6672572

PISTON

14

6672571

O-RING

15

6672570

O-RING back-up

16

6672580

KIT lining - Ref. 5, 6 & 8

17

6672581

KIT o-ring repair - Ref. 8, 11, 12, 14 - 15

18

6672582

KIT spring - Ref. 8 & 9

Выбрано товаров: 19
