Запчасти Bobcat 900s CHARGE PUMP (Gear Pump End) HYDROSTATIC SYSTEM

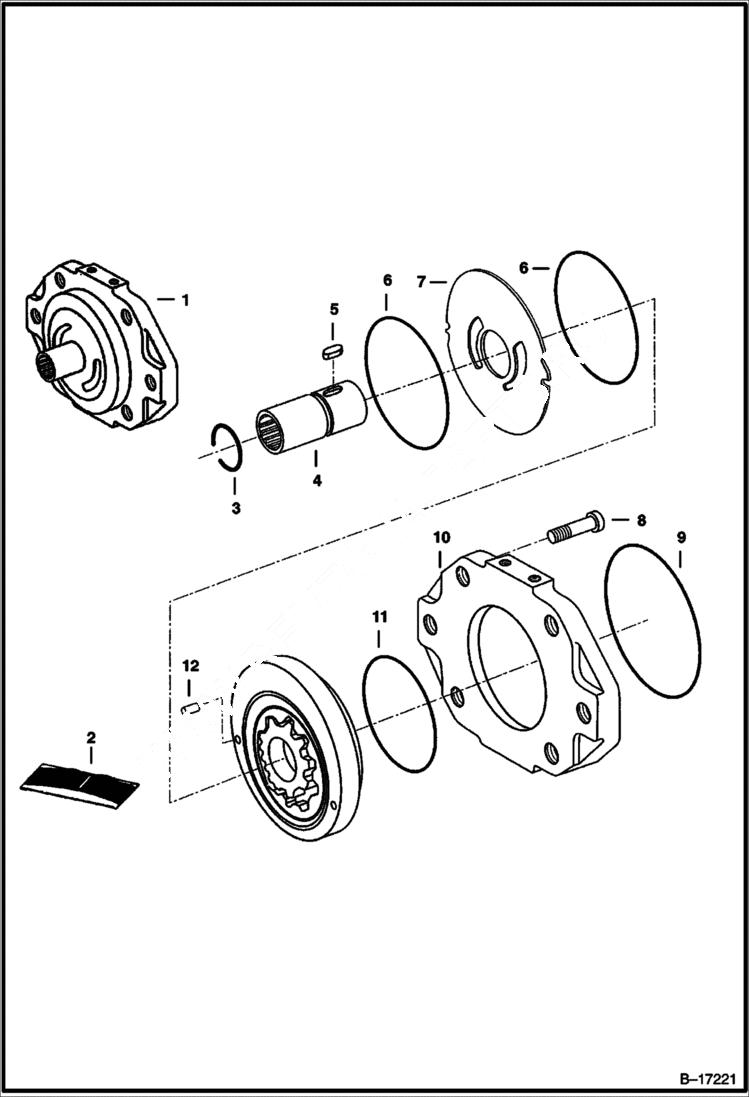

Схема запчастей Bobcat 900s - CHARGE PUMP (Gear Pump End) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6671824

CHARGE PUMP W/Ref. 2 - 12 - Was 6671740 - A

2

6672016

SEAL KIT See Illustration HYDROSTATIC PUMP/ C3237 REF. 28

3

6682945

SNAP RING Was 6671814 - A

4

6674926

SHAFT Was 6671815 - A

5

6674927

KEY Was 6671816 - A

6

6967564

RING Was 6671817 - A

7

6671822

WEAR PLATE wear

8

6671820

BOLT

9

6671821

O-RING

10

6682972

FLANGE Was 6674928 - A

11

6671818

O-RING

12

6682950

PIN Was 6671829 - A

Выбрано товаров: 12
