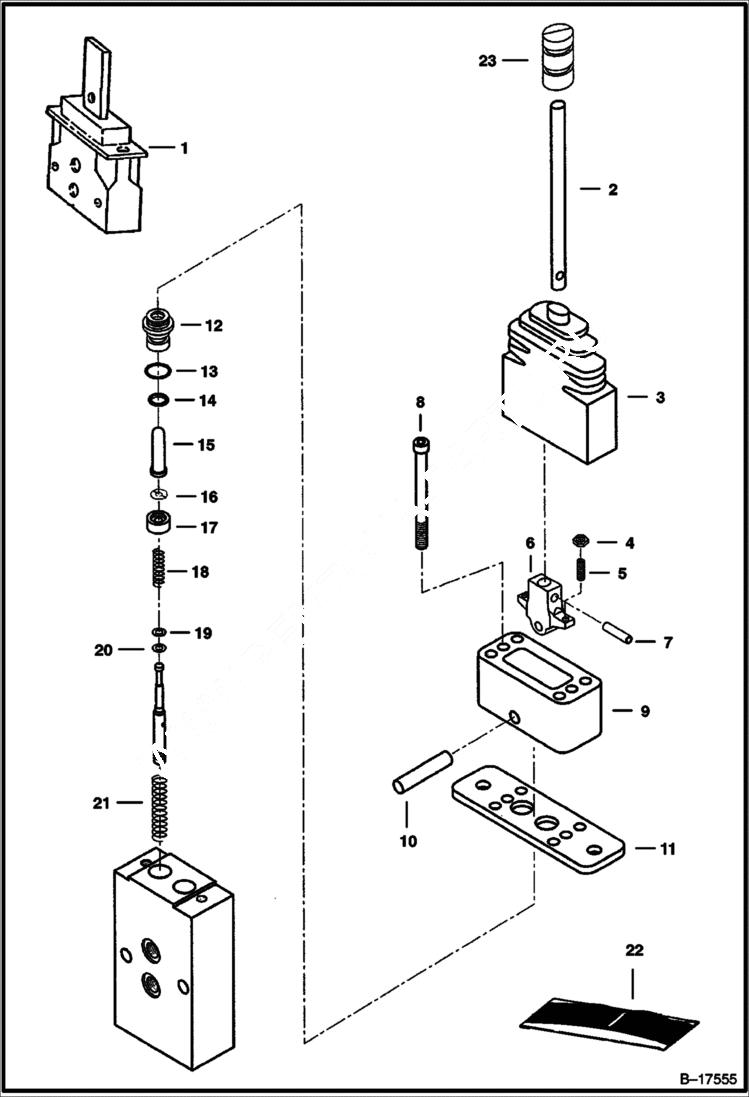

Запчасти Bobcat 900s CONTROLLER HYDROSTATIC SYSTEM

1

6672953

CONTROLLER W/Ref. 2 - 21

2

6673755

LEVER

3

6671720

BOOT

4

NUT NLA - Was 6671721 - A

5

SCREW NLA - Was 6671722 - A

6

ACTUATOR NLA - Order 6672953 controller - Was 6671723 - A

7

6671724

SPRING

8

6671725

BOLT

9

6671726

BASE handle

10

PIN NLA - dowel - Was 6671727 - A

11

6671728

PLATE

12

GUIDE NLA - Order 6672953 - A

13

6671730

O-RING

14

6675926

SEAL Was 6671731 - A

15

PLUNGER NLA - Order 6672953 - A

16

6671733

DISC locking

17

GUIDE NSS - spring - Was 6671734 - A

18

6671735

SPRING

19

SHIM NLA - .2 mm - Was 6671736 - A

20

6675585

WASHER .5 mm - Was 6671737 - A

21

6671738

SPRING return

22

KIT NLA - W/ Ref. 13 & 14 - Order Ref. 13, 14 - Was 6672017 - A

23

6671719

GRIP
