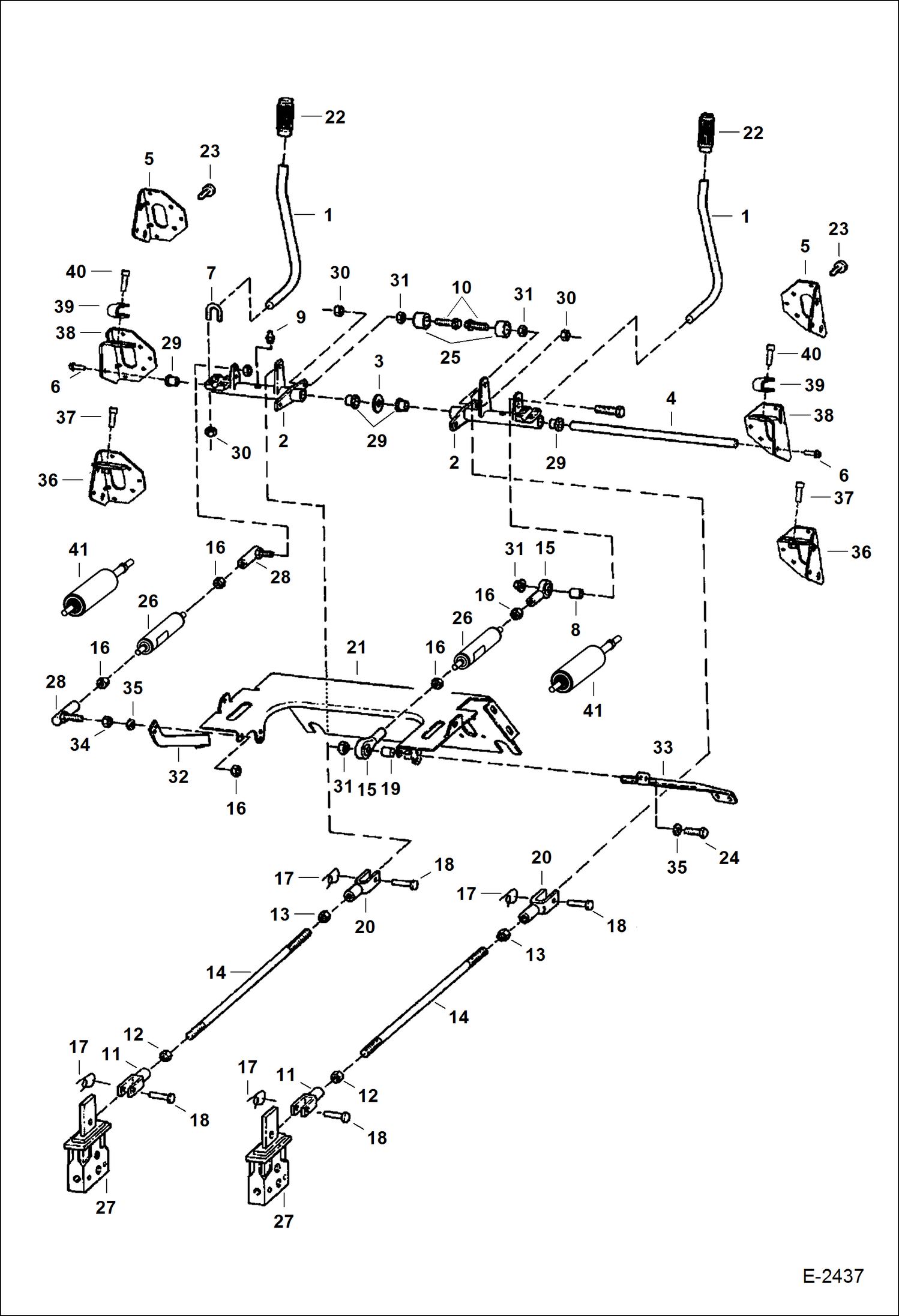

Запчасти Bobcat 900s HAND CONTROLS HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

6713544

BELLCRANK

3

6599741

WASHER wave

4

ROD NLA - Use W/Ref. 6 - Order 6716545 rod & (2) 45C000620B bolt - Was 6576250 - A

4

6716545

ROD Use W/Ref. 6 - 45C000620B BOLT

5

6577230

BRACKET

6

17C616

BOLT 5

6

45C620

BOLT Was 45C000624B - B

7

6732997

U-BOLT Was 6700768 - A

8

6708314

BUSHING, SPACER

9

6518200

FITTNG, GREASE 10

10

6705966

BOLT

11

2J6208

YOKE

12

8D6

NUT 5

13

13D6

NUT Was 8D000004B - B

14

6802725

LINK steering - Was 6667802 - D

15

6512954

ROD END R.H. threads

16

86D6

NUT

17

6631418

RING, RETAINING

18

4F6106

PIN

19

6705484

BUSHING

20

6671666

CLEVIS L.H. thread - I.D. only

21

6707475

PANEL non- AHC models - Was 6713877 - A

21

6716681

PANEL

22

6702621

GRIP not Use W/multi-switch handles

23

84G3712

BOLT 5

24

17C636

BOLT

25

6704435

WEAR CAM

26

GAS SPRING NLA - Japan Option - Order Ref. 41 - Was 6649551 - A

27

CONTROLLER See Illustration CONTROLLER/ B17555

28

6599744

BALL JOINT

29

6703879

BUSHING, PLASTIC W/tab

30

83D6

NUT 5

31

95D6

NUT Was 91D000006B - A

32

6703551

BRACE L.H.

33

6708064

BRACE R.H.

34

59D6

NUT

35

25E18

WASHER

36

BRACKET NLA - R.H. - Order Ref. 38-40 - Was 6733022 - A

36

BRACKET NLA - L.H. - Order Ref 38-40 - Was 6733024 - A

37

93G824

BOLT Was 73G824 - A

38

7128600

BRACKET RH

38

7128601

BRACKET LH

39

7121779

PAD

40

73G828

BOLT

41

7188108

GAS SPRING
