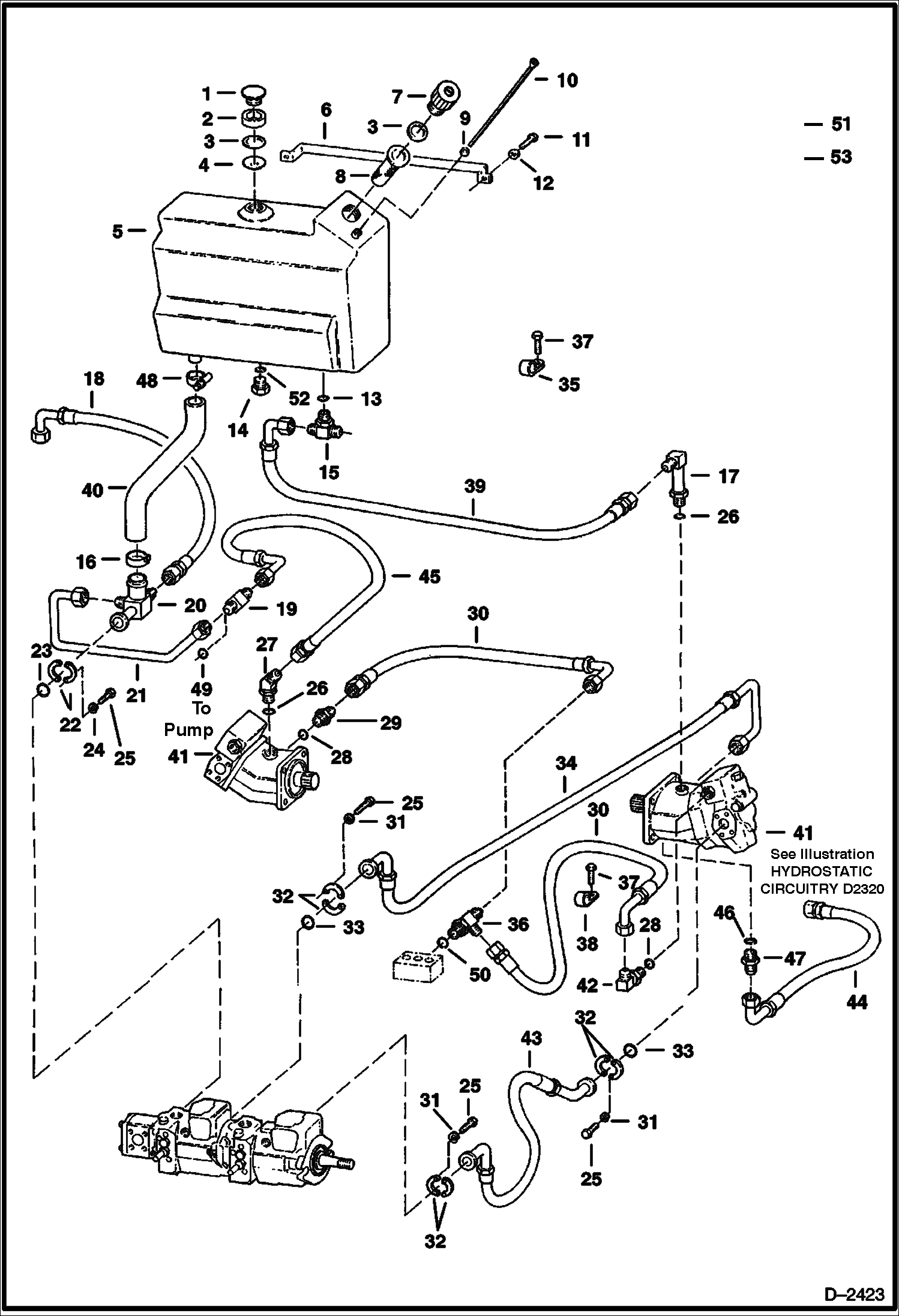

Запчасти Bobcat 900s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6727475

CAP, OIL HYD breather - Also Order Ref. 3 & 2 - Was 6577785 - A

2

6703427

FOAM FILTER foam

3

6700631

GASKET

4

6701552

BAFFLE

5

6596877

TANK hyd.

6

6596934

BAND

7

6728149

CAP , HYD NON VENTED fill - Also Order Ref. 3 - Was 6532508 - A

8

7120881

SCREEN, FILLER Was 6569219 - A

9

25K20010

O RING 10

10

6577459

DIPSTICK O-Ring - W/Ref. 9

11

84G3716

SCREW 5

12

619021

WASHER, 5

13

75K8

O RING 10

14

90KV6

PLUG W/Ref. 49 - tapered boss

15

6800810

TEE

16

5HM55

CLAMP

17

6804339

CONNECTOR W/Ref. 26 - Was 6802614 - A

17

97K12

O'RING flared end

18

6802389

HOSE

19

6802870

TEE W/Ref. 51

20

6627875

CROSS

21

6802832

TUBELINE

22

19J20

CLAMP

23

55K222

O'RING

24

4E7

WASHER

25

17C624

BOLT 5

26

99K12

O RING

27

18KB1212

FITTING, HYD ELBOW W/Ref. 26 - Was 18KV00008B - A

27

97K12

O'RING flared end

28

99K6

O RING boss end

29

15KB0606

FITTING, HYD CONNECTOR W/Ref. 28

29

97K6

O RING flare end

30

6618196

HOSE

31

4E6

WASHER

32

20J12

FLANGE split flange

33

55K214

O-RING

34

6671499

HOSE

35

30H60

CLIP

36

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 50 - Was 21KV00005B - A

36

97K6

O RING flare end

37

35C616

BOLT 5

38

30H31

CLAMP 10

39

6803198

HOSE

40

6628039

HOSE

41

6670817

MOTOR See Illustration HYDROSTATIC MOTOR/ B17212

42

17KB0606

FITTING W/Ref. 28 - Was 17KV00005B - A

42

97K6

O RING flare end

43

6671498

HOSE

44

6803680

HOSE

45

6802855

HOSE

46

99K10

O'RING

47

6804048

CONNECTOR W/Ref. 46 - Was 6803219 - A

48

6672281

CLAMP

49

95K8

O-RING tapered boss

49

75K8

O RING 10 flat boss

50

99K5

O-RING

51

75K10

O RING 10

52

6802834

TUBELINE

53

17KB1010

FITTING, HYD ELBOW W/Ref. 46 - Was 17KV00007B - A

53

97K10

O-RING 10 flare end
