Запчасти Bobcat 900s HYDRAULIC CONTROL VALVE (W/BICS Control Valve) (S/N 562211687 & Above, 516511066 & Above) HYDRAULIC SYSTEM

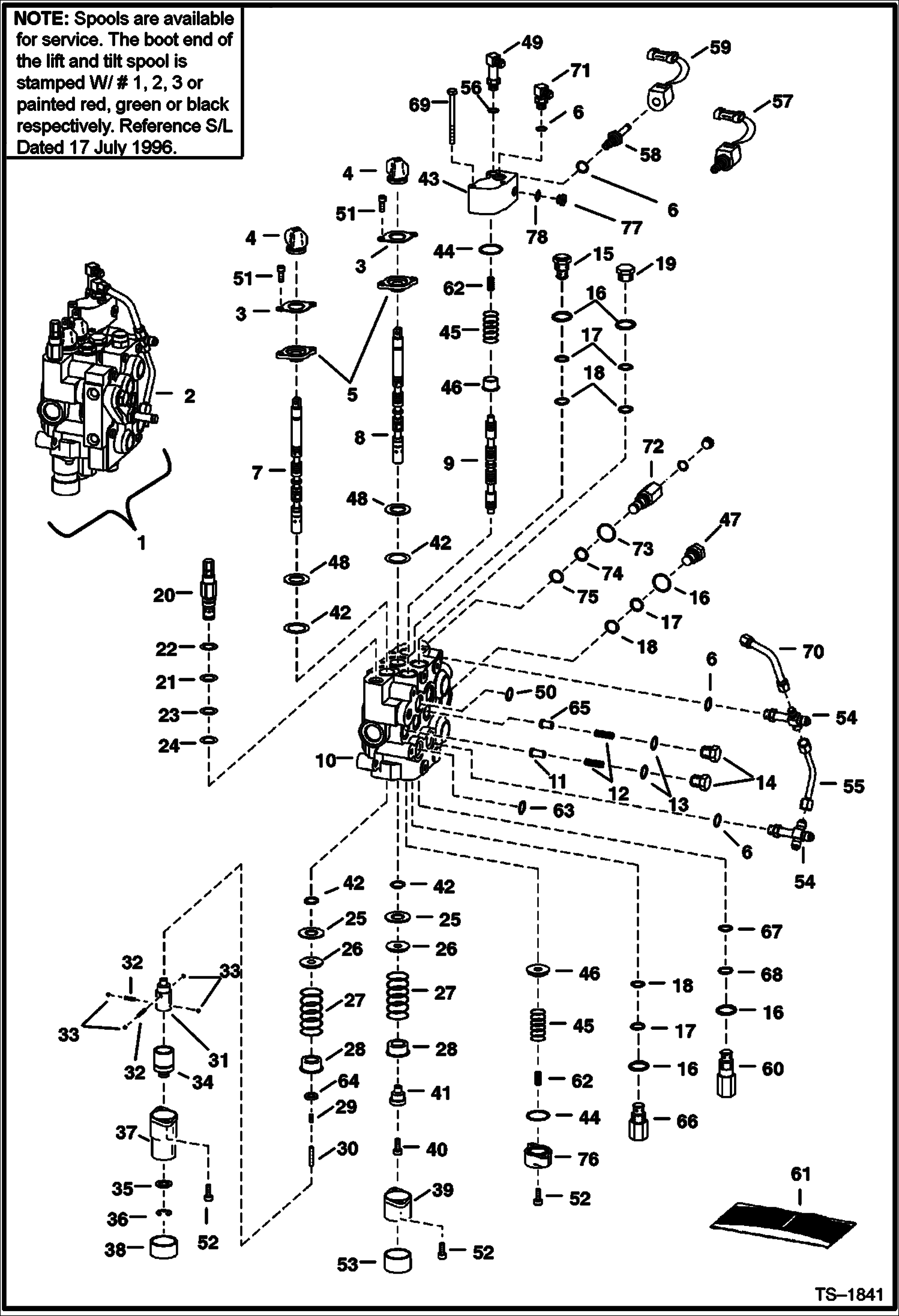

Схема запчастей Bobcat 900s - HYDRAULIC CONTROL VALVE (W/BICS Control Valve) (S/N 562211687 & Above, 516511066 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE NLA - W/Fittings - Ref. 2 - 56 - Order 6808046 service valve - Was 6805104 - A

2

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

3

6589564

RETAINER

4

6587763

BOOT

5

6589565

BUSHING

6

79K6

O RING 10 flat boss face

6

99K6

O RING tapered boss face

7

6666588

SPOOL lift - # 1 or Red - SEE NOTE

7

6666589

SPOOL lift - # 2 or Green-SEE NOTE

7

6666590

SPOOL lift - # 3 or Black - SEE NOTE

8

6666591

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666592

SPOOL tilt - # 2 or Green - SEE NOTE

8

6666593

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18

20

6674146

VALVE main relief - W/Ref. 21-24

21

O-RING NSS

22

WASHER NSS - back-up

23

O-RING NSS

24

RING NSS - glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 Was 6665846 - A

43

6800790

END CAP

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

6804049

ELBOW

50

55K204

O RING 10

51

29G412

BOLT

52

29G416

BOLT 1'' long

53

6662848

CAP

54

6817553

CROSS W/Ref. 6 - flat boss face - Was 6805241 - A

54

97K6

O RING flare end

55

6577690

TUBE

56

99K6

O RING tapered end

57

6665084

SOLENOID W/Ref. 58 & 59

58

6666616

STEM

58

6586459

SEAL KIT

59

6717706

COIL, 10 VOLT w/nut - pwm - 10 volt

59

6676566

NUT

60

6678552

VALVE PORT RELIEF & ANTI-CAV. - 3500 PSI - USE IN TILT CYLINDER BASE END PORT - W/Ref. 16 - Was 6671632 - A

60

6673904

SEAL KIT W/Ref. 16, 67, 68

61

6816250

KIT, SEAL one spool - Ref. 4, 42, 48, 51, 52 & 64 - Was 6803605 - A

61

6816253

KIT, SEAL complete - Ref. 4, 13, 16-18, 21-24, 42, 44, 48, 50-52 & 63 - also Order 6816250 seal kit - Was 6809448 - A

61

6632279

KIT, SEAL main relief - Ref. 21-24

61

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A

62

6595131

SPRING .72'' OD

63

55K212

O RING 10

64

54K20002

O'RING 10

65

6596569

SEAT

66

6671583

RELIEF VALVE

67

O-RING NSS - kit - Order Ref. 60

68

O-RING NSS - kit - Order Ref. 60

69

29G436

BOLT

70

6805171

TUBE

71

17KB0606

FITTING Was 17KV00005B - A

71

97K6

O RING flared end

72

6805137

PLUG W/Ref. 73-75

73

79K7

O RING 10

74

58K012

O-RING 10

75

58K11

O RING 10

76

6588781

END CAP

77

90KV5

PLUG

78

95K6

O'RING

Выбрано товаров: 92
