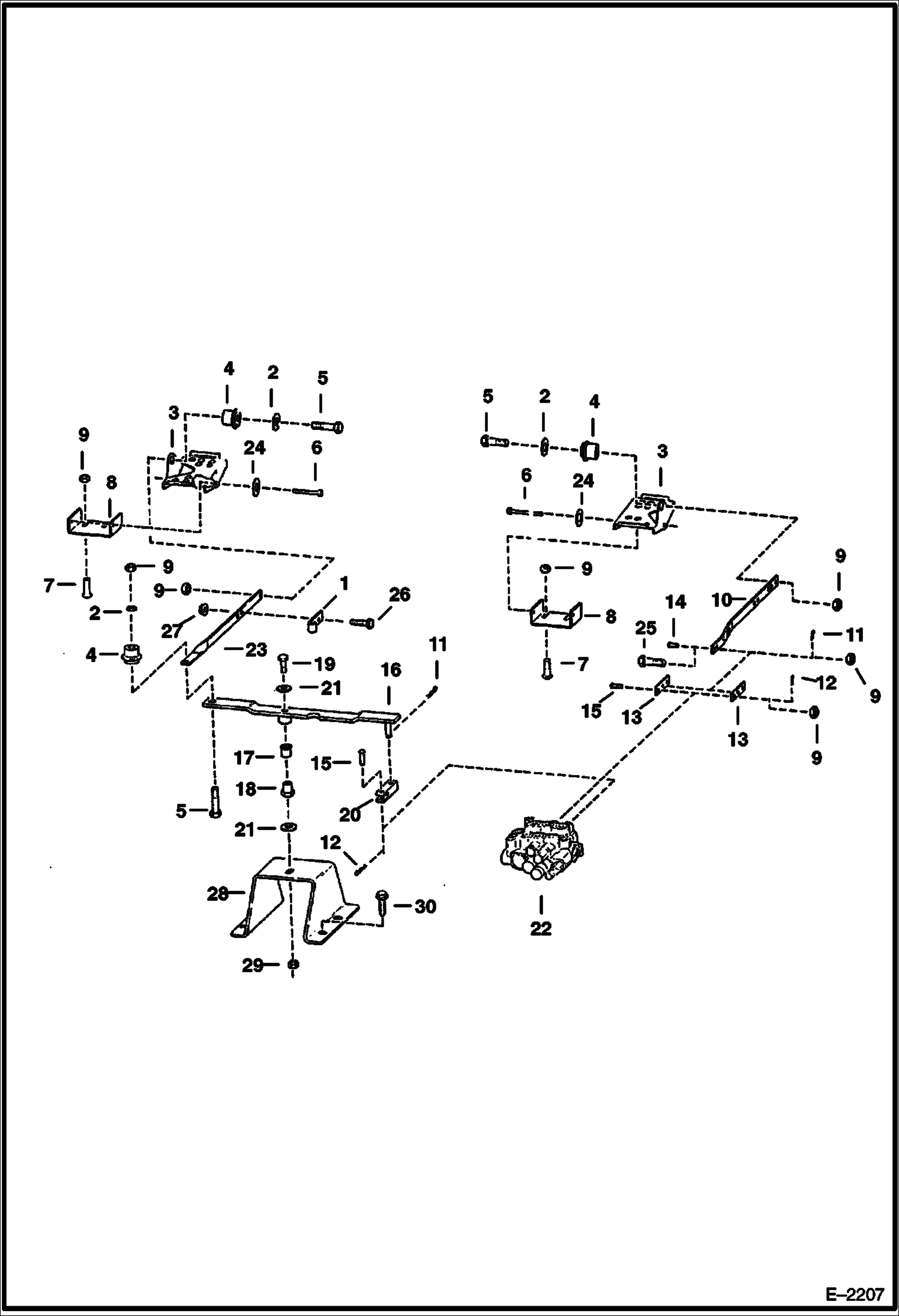

Запчасти Bobcat 900s CONTROL PEDALS HYDRAULIC SYSTEM

1

6563151

LINK latch

2

6563914

WASHER

3

7115219

PEDAL Was 6726680 - A

4

6665701

BUSHING, PRESS FIT

5

17C624

BOLT 5

6

6564657

PIN

7

7C620

BOLT Was 37C000616B - B

8

6726679

MOUNT Was 6564658 - A

9

95D6

NUT Was 57D000006B - B

10

6710329

BAR

11

6631418

RING, RETAINING Was 1306637B - B

12

6513495

COTTER PIN cotter

13

6708009

LINK

14

4F6106

PIN

15

6564654

PIN

16

6706108

LEVER

17

6512026

BUSHING

18

6803360

BUSHING pivot

19

31C636

BOLT Was 35C000616B - B

20

6706105

YOKE

21

619021

WASHER, 5

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17572

23

6710328

LINK

24

25E21

WASHER 5 Used if serrations on pins are too long

25

17C620

BOLT

26

17C616

BOLT 5

27

83D6

NUT 5

28

6803008

BRACKET

29

97D6

NUT 10

30

84G3716

SCREW 5
