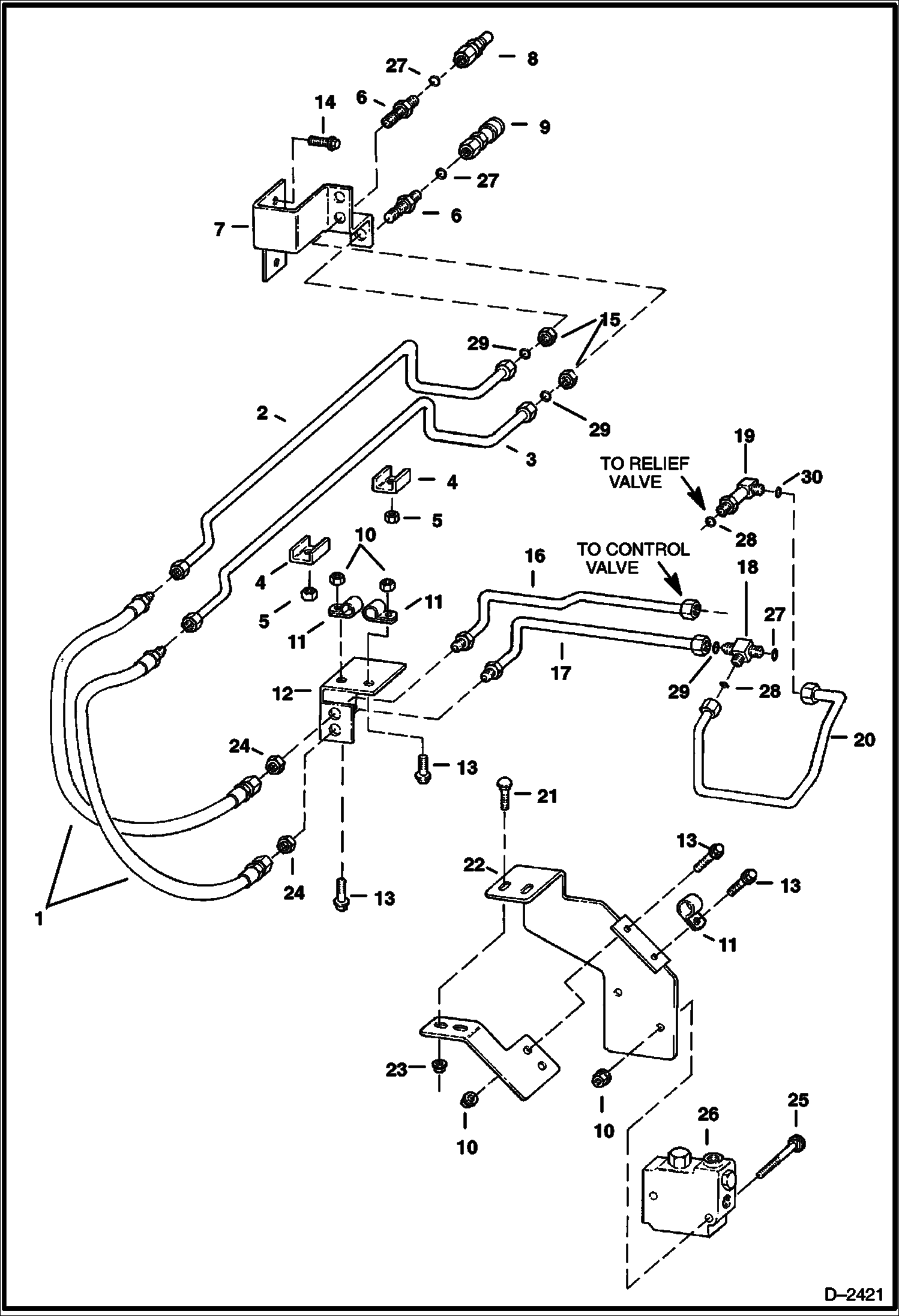

Запчасти Bobcat 900s AUXILIARY HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6670648

HOSE

2

TUBELINE NLA - Order Kit # 6806101 - Was 6803689 - A

2

6805924

TUBELINE

3

TUBELINE NLA - Order Kit # 6806101 - Was 6803688 - A

3

6805925

TUBELINE

4

6800262

CLAMP

5

85D8

NUT, 5

6

6802042

ADAPTER

7

6802038

BRACKET coupler

7

6805921

BRACKET coupler

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

55D6

NUT

11

30H31

CLAMP 10

12

6803069

BRACKET

13

35C616

BOLT 5

14

84G3716

SCREW 5

15

61E12

NUT

16

6803085

TUBELINE

17

6803084

TUBELINE

18

6802536

TEE

19

42E606

FITTING W/Ref. 28, 30

20

6802559

TUBELINE

21

37C620

BOLT

22

6803010

BRACKET

23

6803027

BRACKET

24

86F8

NUT 5 Was 86F000006B - B

25

35C540

BOLT

26

VALVE See Illustration BUCKET POSITION VALVE/ C3394

27

75K12

O'RING 10

28

55K12

O'RING W/Ref. 18

29

55K18

O'RING

30

75K6

O-RING
