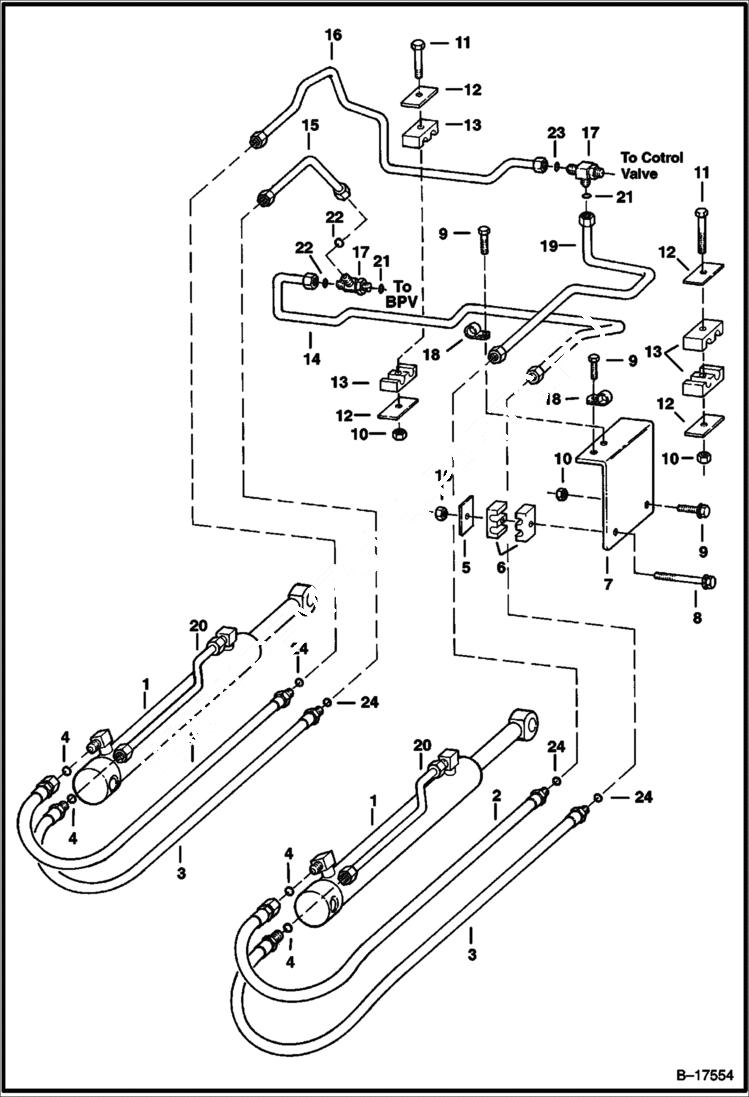

Запчасти Bobcat 900s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B14034 LIFT

2

6671893

HOSE

3

6802375

HOSE

4

55K16

O'RING

5

6595356

PLATE

6

6595353

CLAMP

7

6627878

BRACKET

8

37C656

BOLT

9

37C616

BOLT

10

55D6

NUT

11

35C632

BOLT

12

6652521

PLATE

13

6701892

CLAMP

14

6803083

TUBELINE

15

6803082

TUBELINE

16

6803081

TUBELINE

17

46E810

FITTING W/Ref. 21

18

30H31

CLAMP 10

19

6802384

TUBELINE

20

6800627

TUBELINE

21

75K10

O RING 10

22

55K14

O-RING

23

55K12

O'RING

24

58K016

O-RING 10 Was 58K14 - B
