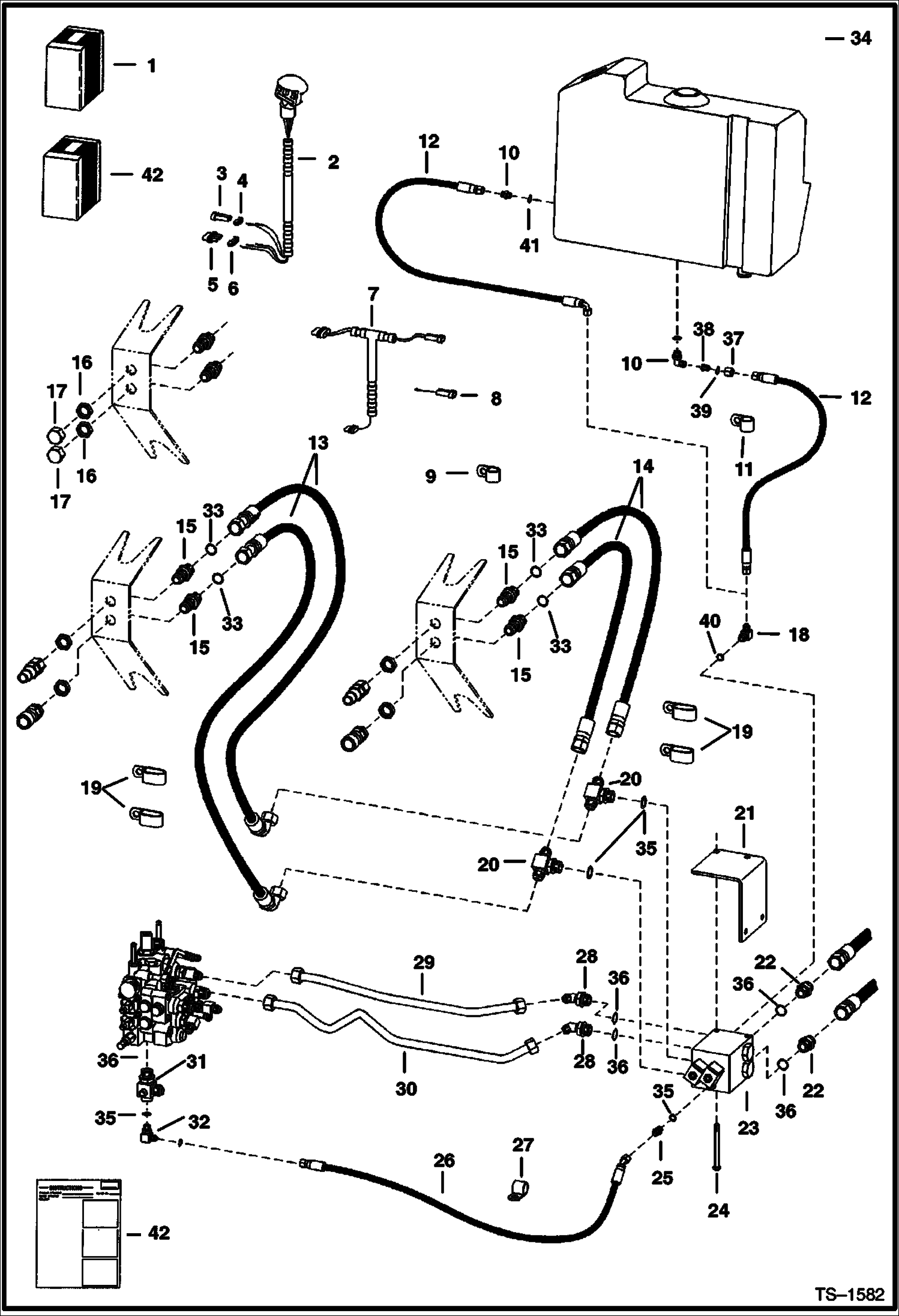

Запчасти Bobcat 900s REAR AUXILIARY HYDRAULIC KIT ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 2 -14, 19-32 - Order 6800087

2

6680414

HANDLE ASSY. 2-switch - Was 6705921 - A

3

6640699

CONNECTOR

4

6640700

LOCK

5

6641179

CONNECTOR 2-pin

6

6641180

LOCK Use W/ 2-pin connector

7

6710435

HARNESS

8

HARNESS NLA - ground wire - not required

9

30H38

CLIP

10

17KB0808

FITTING, HYD ELBOW C-Series - Was 17KV00006B - A

10

15K5

FITTING G-Series - W/Ref. 41

11

30H35

CLAMP 10

12

6802064

HOSE C-Series

12

6708597

HOSE G-Series

13

6802377

HOSE

14

6802378

HOSE

15

6802043

FITTING W/face seal o-ring

15

58K012

O-RING 10 face seal

16

86F5

NUT jam

17

36K5

CAP

18

17KB0404

FTG HYD ELBOW 90 Was 17KV00003B - A

18

97K4

O'RING flare end

19

31H42

CLIP

20

43E606

FITTING W/Ref. 35

20

55K12

O'RING face seal

21

6627877

MOUNT

22

83K8

ADAPTER

23

6665572

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362 DIVERTER

24

17C680

BOLT

25

41E606

ADAPTER W/Ref. 35

25

55K12

O'RING face seal

26

6802379

HOSE

27

30H23

CLAMP

28

44E1212

HYD FTG W/Ref. 36

28

55K18

O'RING

29

6803086

TUBELINE

30

6803087

TUBELINE

31

6803088

CROSS HYDR

32

42E606

FITTING

32

55K12

O'RING face seal

33

75K8

O RING 10

34

75K10

O RING 10

35

75K6

O-RING

36

75K12

O'RING 10

37

80F6

NUT

38

9K2

ADAPTER W/Ref. 39 - Was 9KV00002B - A

39

97K4

O'RING flare end

40

99K4

O'RING boss end

41

79K6

O RING 10 boss end

42

6900421

INSTRUCTIONS
