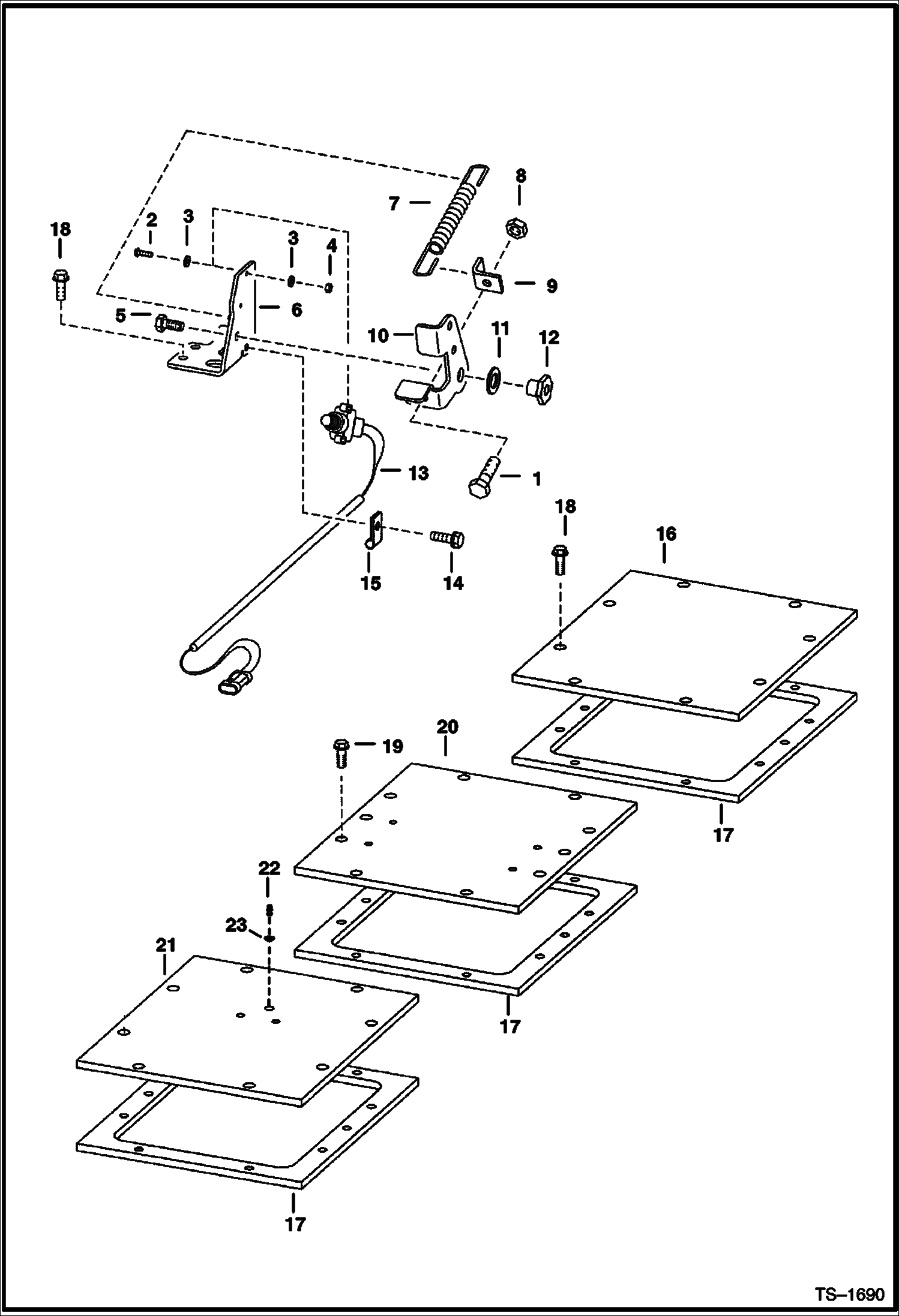

Запчасти Bobcat 900s DISC BRAKE DRIVE TRAIN

1

84G3712

BOLT 5

2

23G812

SCREW

3

25E8

WSHR

4

12D8

NUT

5

17C610

BOLT

6

6707313

PEDAL MOUNT

7

6585860

SPRING

8

95D6

NUT

9

6707315

ANGLE

10

6707314

PEDAL brake

11

6700170

WASHER plastic

12

6559479

NUT

13

6707337

SWITCH, LOCK TRACTION w/cover and connector

13

6664880

SWITCH

14

17C620

BOLT

15

30H23

CLAMP

16

COVER See Illustration DRIVE TRAIN/ TS1853 - front

17

6627897

GASKET

18

84G3720

BOLT

19

84G3716

SCREW 5

20

COVER See Illustration DRIVE TRAIN/ TS1853 - center

21

COVER See Illustration DRIVE TRAIN/ TS1853 - rear

22

6630488

BREATHER

23

6553411

BUSHING
