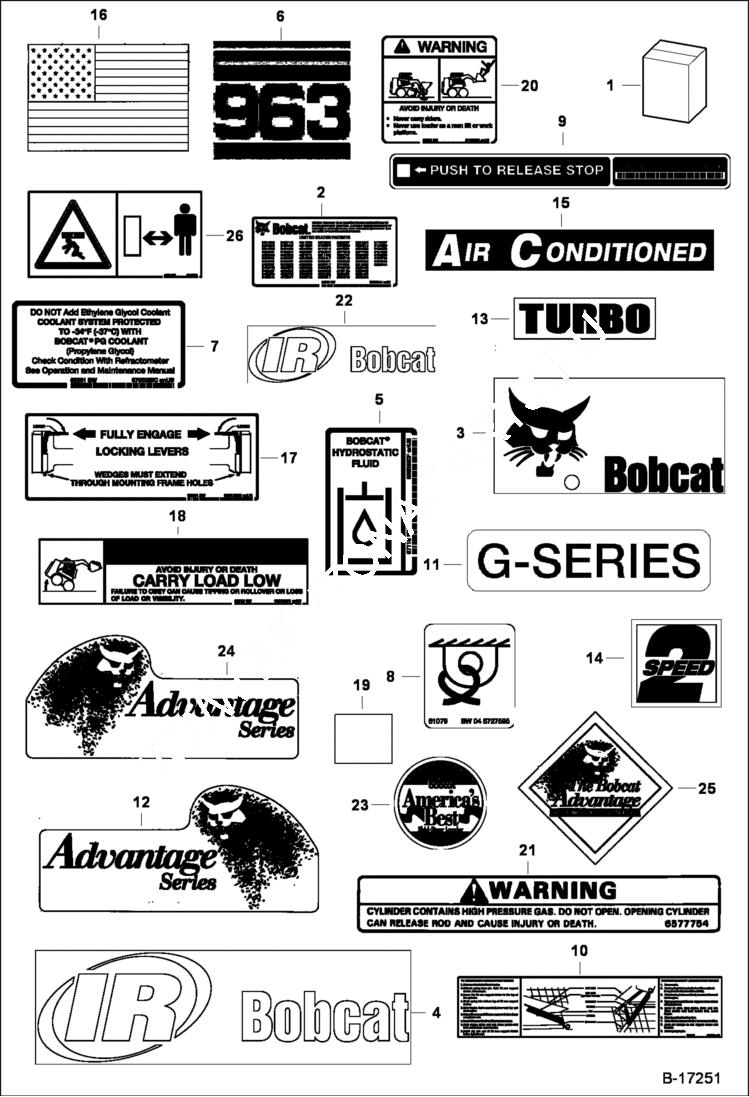

Запчасти Bobcat 900s DECALS (Outside) ACCESSORIES & OPTIONS

1

6901220

KIT See Illustration DECALS/ B17250

2

DECAL NLA - patent - Was 6557224 - C

3

6727309

DECAL, LOGO RH bobcat - R.H. - Was 6559070 - A

3

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - Was 6559071 - A

4

DECAL NLA - Logo - Was 6727311 - A

5

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

6

6627802

DECAL model 963

7

6708929

DECAL, COOLANT propylene glycol

8

6727595

DECAL Was 6595014 - B

9

6578368

DECAL, OPERATION push to release stop

10

6706558

DECAL, OPERATION lift arm support

11

6717907

DECAL G-Series

12

6718272

DECAL Advantage Series R.H. - not in kit

13

6727912

DECAL turbo - tailgate Was 6714526 - A

13

6727912

DECAL turbo - main frame

14

6729078

DECAL 2 Speed - Not In Kit

15

6729077

DECAL Air Conditioned - Not In Kit

16

6732026

DECAL U.S. Flag

17

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

18

6579528

DECAL, WARNING carry load low

19

6567651

SAFETY TREAD 3.5'' (88,9 mm) x 25'' (635 mm) - main frame

19

6800009

SAFETY TREAD 10'' (254 mm) x 25.5'' (647,7 mm) - pedal mount

19

6805923

SAFETY TREAD 7.4'' (1888 mm) x 20'' (508 mm) - lift arm stop

19

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

20

6710358

DECAL warning - no riders

21

6577754

DECAL, WARNING 5 gas spring

22

DECAL NLA - Ingersoll Rand - Was 6727310 - A

23

DECAL best

24

6718271

DECAL advantage series - L.H. - not in kit

25

6718275

DECAL bobcat advantage

26

6713507

DECAL stay clear - european - not in kit
