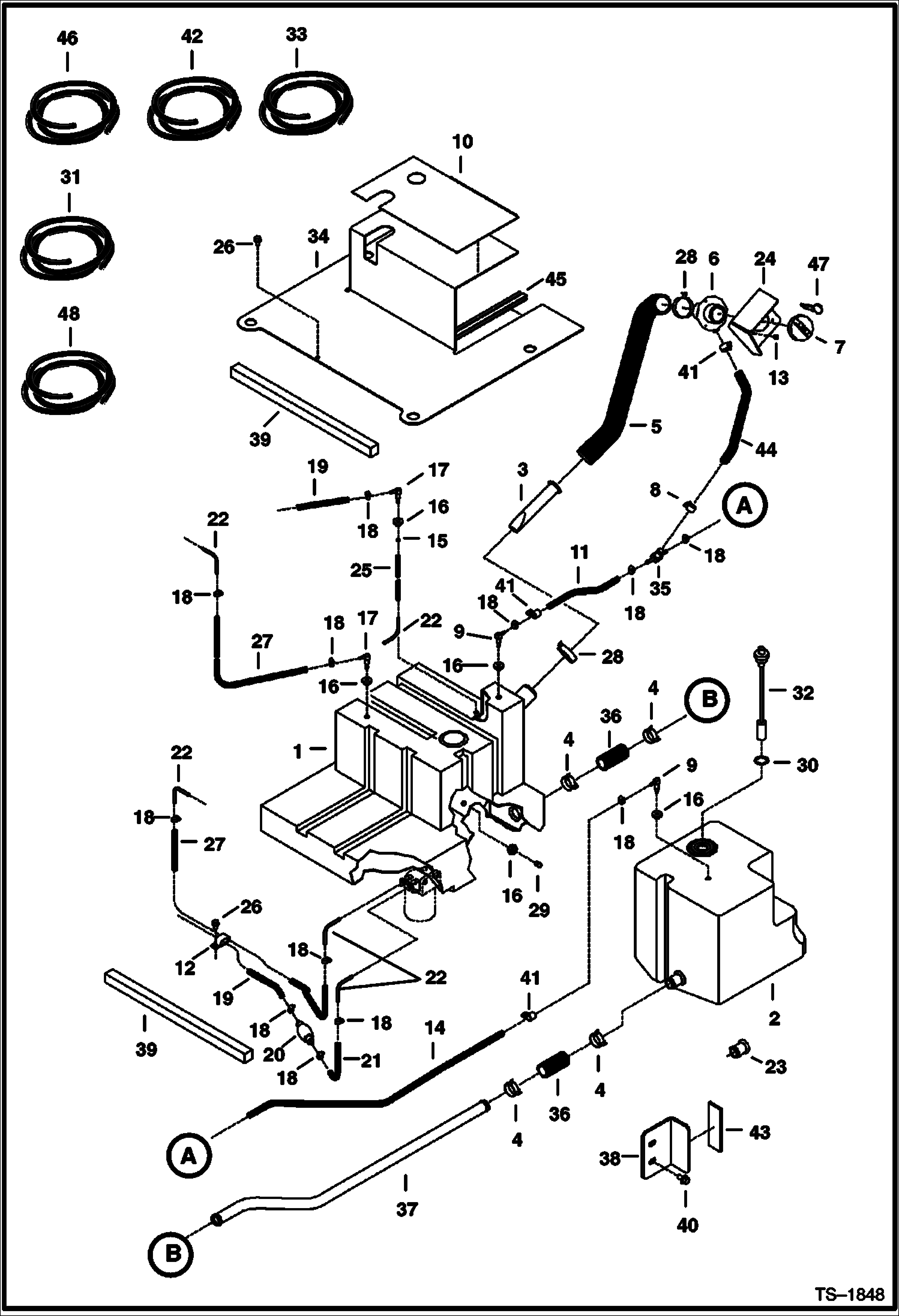

Запчасти Bobcat 900s FUEL SYSTEM MAIN FRAME

1

TANK NLA - 25 gal. - Order 6807186 , 6804639 , 5HM00023B & (2) of 6515575 - Was 6597173 - A

1

TANK NLA - 25 gal. - Order 6807186 & cover 6807157 - Was 6804575 - A

1

6807186

TANK 25 gal.

2

TANK NLA - Order 6804576 & 6673119 - Was 6802772 - A

2

6804576

TANK aux - 10 gal.

3

7120881

SCREEN, FILLER Was 6569219 - A

4

5HM40

HOSECLAMP

5

6579274

HOSE

6

6701449

FILLER TUBE

7

6661114

CAP. DIESEL green fuel fill

7

6661696

CAP, FUEL LOCKING locking - code PK510 - W/Ref. 47

8

5HM23

CLAMP

9

6553412

ELBOW

10

6803494

INSULATION

11

HOSE NLA - 16.5 (419 mm) long - Order Ref. 42

12

31H46

CLAMP Was 31H000027B - C

13

6706517

SCREW

14

HOSE NLA - 40.25'' (1022,35 mm) long - Order Ref. 42

15

6661213

RING, COMPRESSION

16

6553411

BUSHING 0.38'' ID

17

6598908

ELBOW

18

42HS04

CLAMP, HOSE Was 6515575 - A

19

HOSE NLA - 42.13'' (1070 mm) long - Order Ref. 33

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

21

HOSE NLA - 2.76'' (70 mm) long - Order Ref. 33

22

6597183

ELBOW See Illustration FUEL FILTER/ B15179

23

FITTING NSS - no longer needed - Was 6587972 - A

24

6804584

SHIELD Was 6628805 - A

25

HOSE NLA - 20.08'' (510 mm) long - Order Ref. 31

26

84G3712

BOLT 5

27

HOSE NLA - 61.42'' (1560 mm) long - Order Ref. 33

28

5HM58

CLAMP

29

6599645

PLUG, STEEL

30

79K14

O RING 10

30

6717579

GASKET

31

6569752

HOSE BULK/FT bulk - sold per foot

32

7216514

SENSOR, FUEL fuel - W/Ref. 30 - Was 6680449 - A

32

7216516

SENSOR, FUEL fuel - W/Ref. 30 - Was 6680439 - A

33

6577821

HOSE bulk - sold per foot

34

6802114

COVER

34

6807157

COVER

35

6804639

TEE

36

6802748

HOSE

37

6802771

TUBE

38

6803062

BRACKET

39

6597184

FOAM

40

35C816

BOLT

41

30H35

CLAMP 10

42

6577822

HOSE bulk - sold per foot

43

6803976

STRIP rubber

44

HOSE NLA - 25'' (635 mm) - Order Ref. 48

45

SEAL NLA - 13.5'' (342.9 mm) long - W/Ref. 46

46

6667586

SEAL Bulk - Sold Per Foot

47

6587458

KEY code PK010

48

6578172

HOSE bulk - sold per foot
