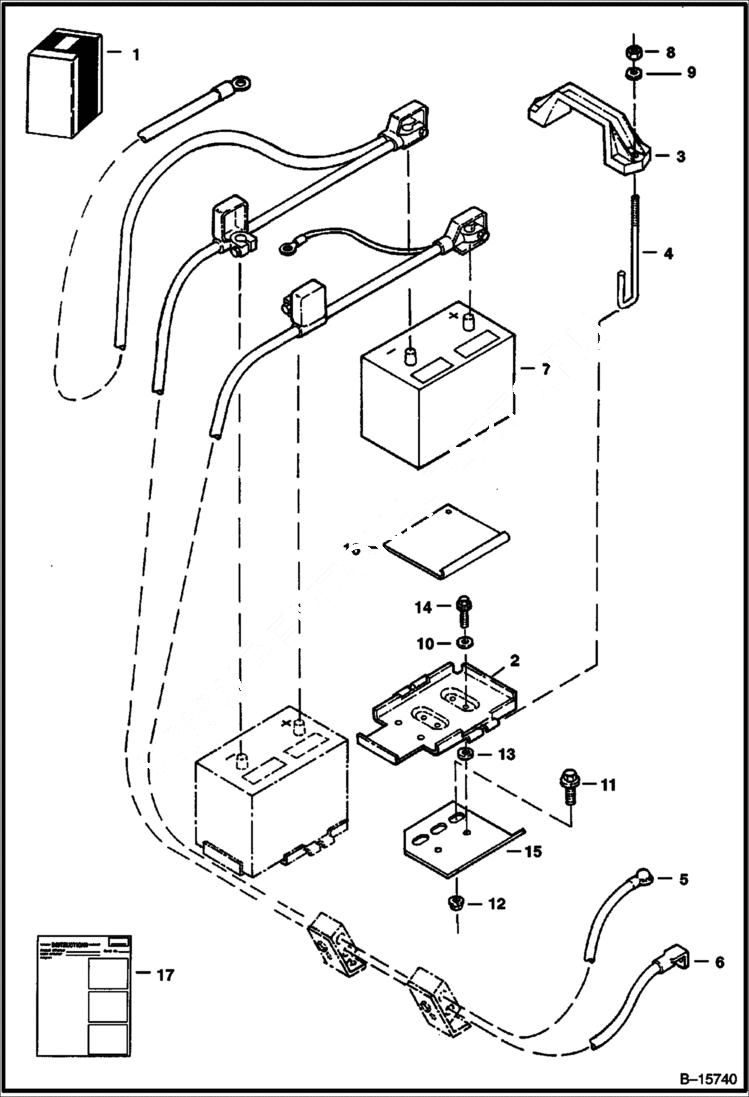

Запчасти Bobcat 900s BATTERY KIT (Dual) ACCESSORIES & OPTIONS

1

6808262

KIT W/Ref. 2-17

2

6712536

PAN

3

6569203

CLAMP

4

6808878

BOLT bent

5

6808226

CABLE positive

6

6808227

CABLE negative

7

6665427

BATTERY, DRY 950 AMP

8

59D5

NUT 5

9

25E15

WASHER

10

25E18

WASHER

11

31C1236

BOLT

12

53D12

NUT Was 83D000012B - B

13

6555455

WASHER Not In Kit - Use W/NLA 6808212 bracket

14

84G3716

SCREW 5

15

BRACKET NLA - Order 6809875 - Was 6808212 - A

15

6809875

BRACKET

16

6808263

BRACKET spacer

17

6901064

INSTRUCTIONS
