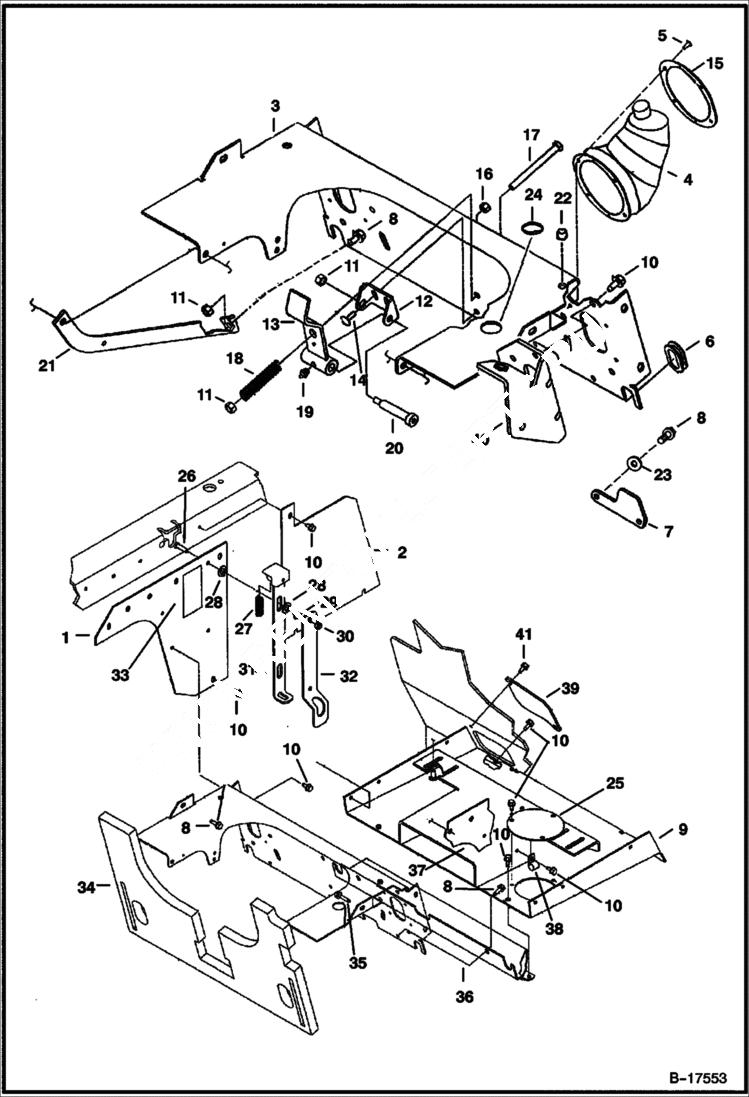

Запчасти Bobcat 900s PANELS MAIN FRAME

1

6718487

PANEL See Illustration SEAT & SEAT BAR/ B17571 - Was 6701346 - A

2

6597501

PANEL

3

6707475

PANEL Use only on non-AHCS model

3

6716681

PANEL

4

6532127

BOOT W/Ref. 15

5

6630207

RIVET 5

6

6577961

GROMMET

7

LEVER NSS - stop - Was 6703330 - A

8

84G3716

SCREW 5

9

6804638

PANEL Also order Ref. 25 to service 6597503 panel - Was 6597503 - A

10

84G3712

BOLT 5

11

95D6

NUT Was 85D000006B - B

12

6701951

MOUNT

13

6701950

ARM Use on AHCS loader

13

6805376

ARM Use on non-AHCS loader

14

10C512

BOLT

15

PLATE NLA - Order Ref. 4

16

59D5

NUT 5 Was 85D000005B - B

17

17C664

BOLT

18

6505082

SPRING

19

10H25

FITTING, GREASE 5

20

38C836

BOLT

21

6703551

BRACE See Illustration HAND CONTROLS/ E2437

22

6649949

PLUG

23

WASHER NSS - Was 616783B - A

24

6707674

PLUG Use only on non-AHCS model

25

6804634

COVER

26

6705489

BOLT

27

6702430

SPRING, COMPRESSION

28

6700170

WASHER plastic

29

6559479

NUT

30

59D6

NUT

31

LOCK See Illustration SEAT & SEAT BAR/ B17571

32

LOCK SHIELD See Illustration SEAT & SEAT BAR/ B17571

33

6705720

DECAL warning

34

6708181

INSULATION

35

84G3724

BOLT

36

6597506

COVER Use only on non-AHCS model

37

6710647

PANEL

38

30H23

CLAMP

39

COVER NLA - swing - Was 6577812 - A

39

6737088

COVER, ACCESS

40

BRACKET See Illustration HAND CONTROLS/ E2437 R.H. - Was 6733022 - A

40

BRACKET See Illustration HAND CONTROLS/ E2437 L.H. - Was 6733024 - A

41

84G3720

BOLT
