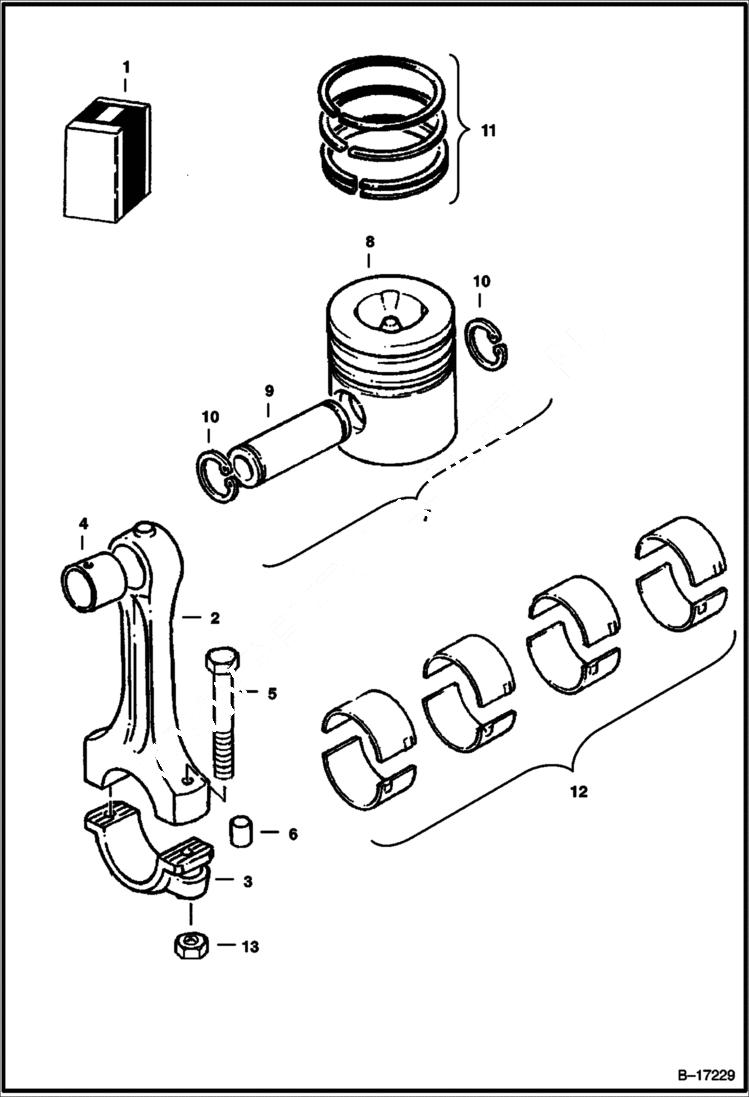

Запчасти Bobcat 900s CONNECTING ROD & PISTON POWER UNIT

1

93152-7

ROD Rod, connecting - W/Ref. 2 - 6 & 13 - Was 6675910 - A

2

ROD NSS - Connecting - Order Ref. 1

3

CAP NSS - Connecting - Order Ref. 1

4

6672180

BUSHING

5

6515679

SCREW

6

6675834

THIMBLE

7

6670885

PISTON Low Grade - W/Ref. 8-10

8

PISTON NSS - Order Ref. 7

9

PIN NSS - Order Ref. 7

10

6670886

RETAINER

11

6670887

KIT Rings - Std. - For One Piston

12

6668226

KIT Rod Bearing - Std. - Set of 8 Halves

12

6668227

KIT Rod Bearing - (-) 0.25mm - Set of 8 Halves

12

6668228

KIT Rod Bearing - (-) 0.50mm - Set of 8 Halves

12

6668229

KIT Rod Bearing - (-) 0.75mm - Set of 8 Halves

13

6599646

NUT
