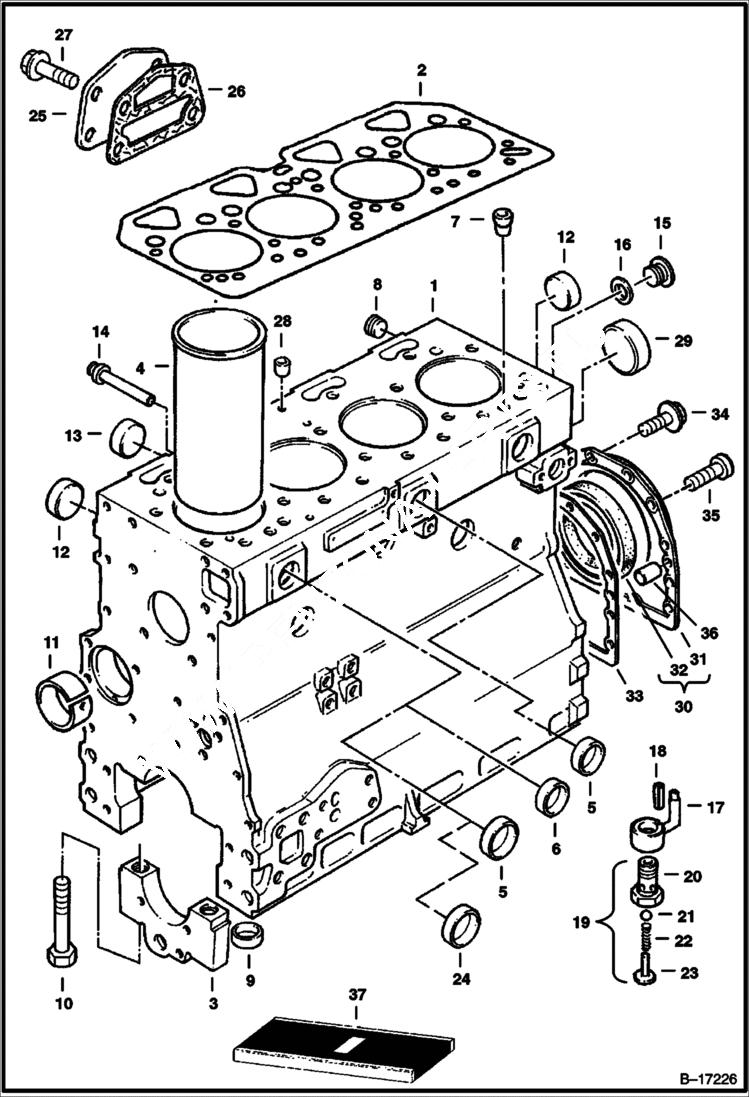

Запчасти Bobcat 900s CYLINDER BLOCK POWER UNIT

1

6670878

BLOCK Cylinder - W/Ref. 2, 3

2

6672182

GASKET Cyl. Head

3

CAP NSS - Bearing - Order Ref. 1

4

6671650

LINER Slip Fit

5

3490716

PLUG Block

6

6668206

PLUG Block

7

6672271

PIN Dowel - Was 6667271 - D

8

6911858

PLUG Was 6668207 - A

9

3725302

SLEEVE

10

6513096

BOLT

11

6670880

BUSHING

12

6668209

PLUG

13

6670939

PLUG

14

909703

PLUG

15

3725313

PLUG

16

6668211

WASHER

17

6672053

JET Injection

18

6672054

PIN Dowel

19

6668218

VALVE W/Ref. 20-23

20

BODY NSS - Order Ref. 1

21

6668219

BALL

22

6668220

SPRING

23

6668221

RETAINER

24

6668224

PLUG

25

6668222

PLATE

26

6668510

GASKET

27

6668223

SCREW

28

3739121

PLUG

29

6668210

PLUG

30

6671639

HOUSING

30

6688837

HOUSING

31

COVER NSS - Order Ref. 30

32

7031412

SEAL rear crankshaft seal - Was 6671638 - A

33

6674359

GASKET Was 997692B - A

34

6668212

SCREW

35

6670882

SCREW

36

1305481

PIN Dowel

37

6672167

GASKET KIT upper

37

6672166

GASKET KIT lower
