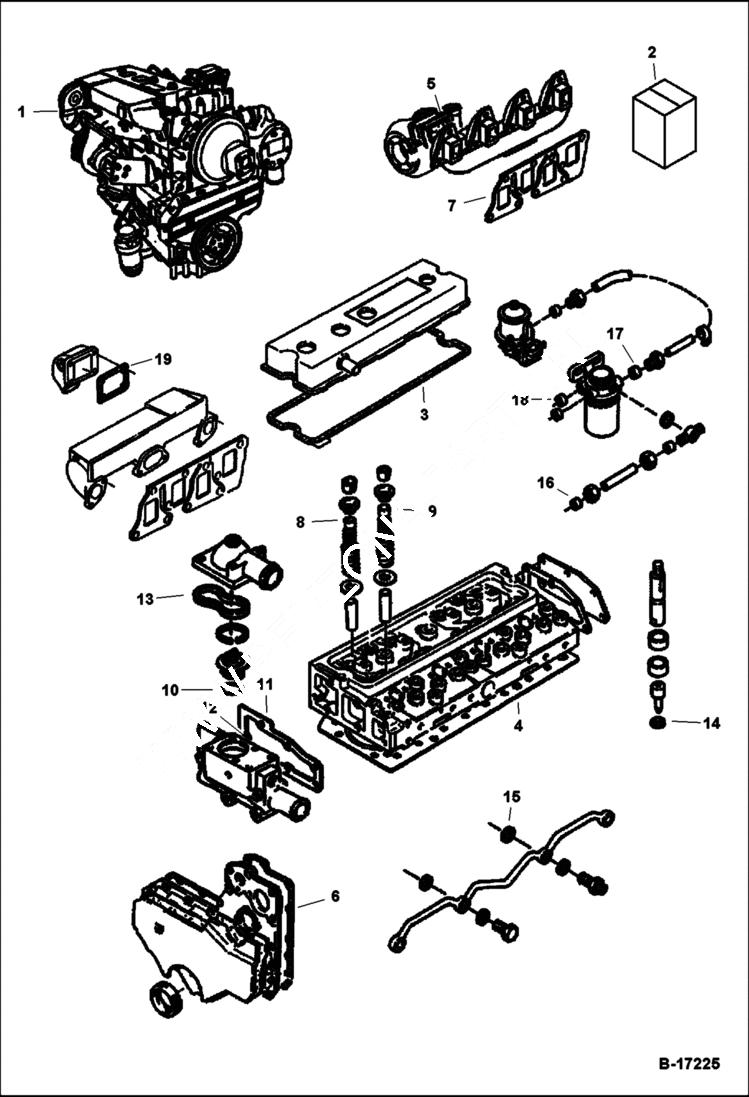

Запчасти Bobcat 900s ENGINE & UPPER GASKET KIT POWER UNIT

1

ENGINE NLA - Order 6669595REM or 6686580 long block kit - Was 6669595 - A

1

6669595REM

ENGINE, PERKINS 1004-40T W/O starter, alternator, flywheel, pump mount or turbo

1

6686580

KIT, BLOCK LONG W/O camshaft

1

6672270

SHORT BLOCK engine - includes plugs, cylinder block, liners, crankshaft, connecting rod, main bearings, big end bearings, thrust washer, seal & housing

2

6672167

GASKET KIT top - W/Ref. 3-20

3

6672781

GASKET See Illustration ROCKER ARM COVER/ B17235 - rocker arm cover

4

6672182

GASKET See Illustration CYLINDER BLOCK/ B17226 - head

5

6668510

GASKET See Illustration ENGINE & LOWER GASKET KIT/ B27256 See Illustration CYLINDER BLOCK/ B17226 - turbo mount - Was 6911978 - B,D

6

6670915

GASKET See Illustration TIMING GEARS/ B17232 - damper

7

6670967

GASKET See Illustration MANIFOLD/ B17240 - manifold

8

6670893

SEAL See Illustration CYLINDER HEAD/ B17231 - intake valve seal

9

6671645

SEAL See Illustration CYLINDER HEAD/ B17231 - exhaust valve seal - Was 6670898 - A

10

6670950

O-RING See Illustration WATER PUMP/ B17237 - thermostat

11

6670945

GASKET See Illustration WATER PUMP/ B17237 - thermostat housing

12

6677709

O-RING See Illustration WATER PUMP/ B17237 - thermostat housing

13

6674292

O-RING See Illustration WATER PUMP/ B17237 - water outlet

14

6670929

WASHER See Illustration FUEL INJECTOR SYSTEM/ B15180 - fuel injector

15

6670932

WASHER See Illustration FUEL INJECTOR SYSTEM/ B15180 - fuel pipe

16

3490132

SEAL See Illustration FUEL FILTER/ B15179 - union

17

3727375

FERRULE See Illustration FUEL FILTER/ B15179 - fuel filter

18

6672312

OLIVE See Illustration FUEL FILTER/ B15179 - fuel filter

19

6671011

GASKET See Illustration MANIFOLD/ B17240 - outlet
