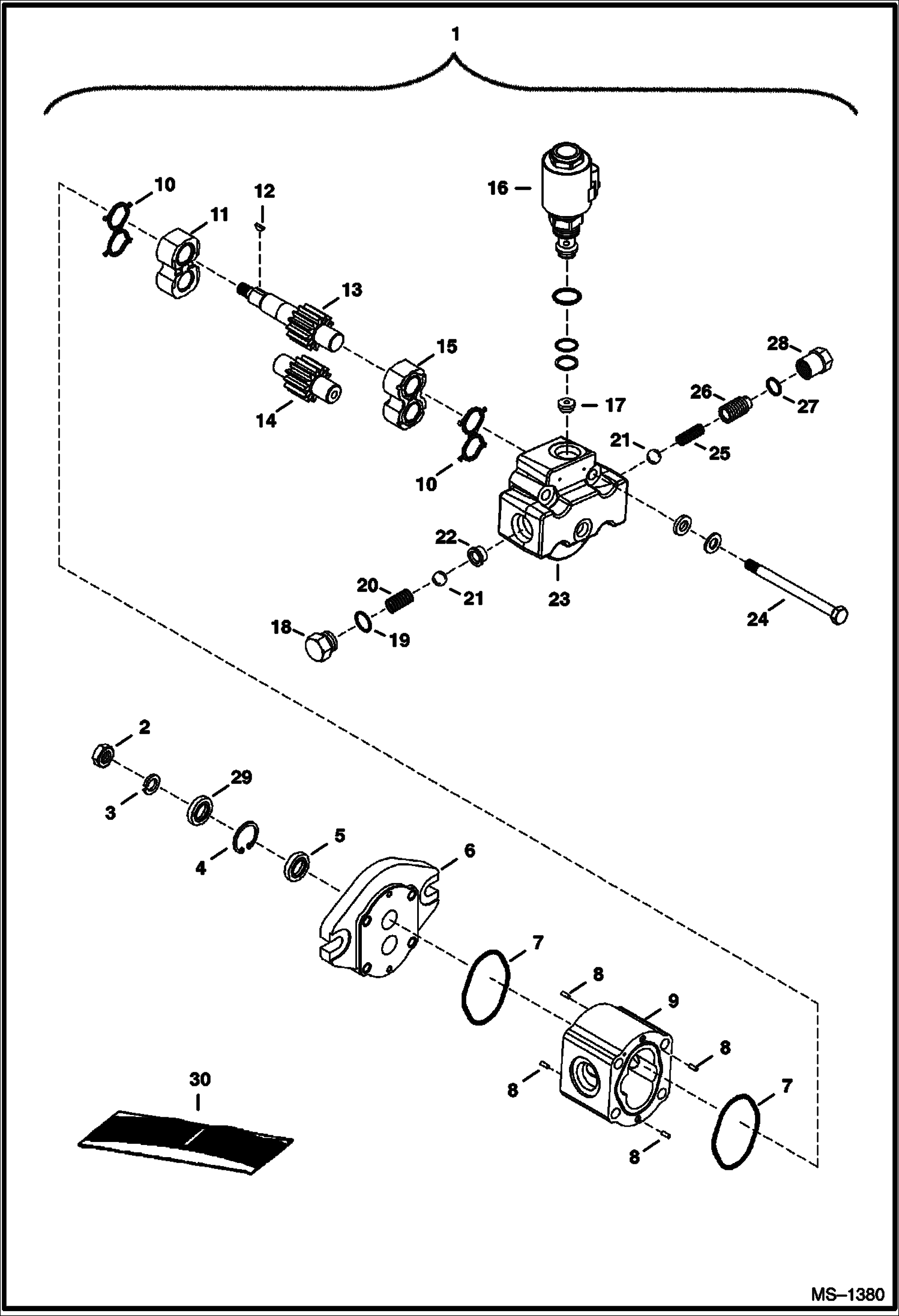

Запчасти Bobcat 900s HYDRAULIC FAN MOTOR POWER UNIT

1

6674740

HYD FAN

2

6675803

NUT

3

6675804

WASHER

4

6675816

SNAP RING

5

6675817

SEAL

6

6675821

FLANGE

7

6675815

SEAL

8

6662929

DOWEL PIN

9

BODY NSS

10

6675820

SEAL

11

HOLDER NSS

12

6675805

KEY

13

GEAR NSS

14

GEAR NSS

15

HOLDER NSS

16

6671025

COIL

16

6676549

STEM

16

54K20028

O RING 10

16

6668820

NUT

16

6672515

KIT, SEAL

17

6675806

ORIFICE

18

PLUG NSS

19

SEAL NSS

20

SPRING NSS

21

BALL NSS

22

RETAINER NSS

23

END COVER NLA - W/Ref. 18-22 & 25-28 - Order 6674740 (motor, fan drive) - Was 6679081 - A

24

6675823

SCREW

25

SPRING NSS

26

SCREW NSS

27

6675819

GASKET

28

PLUG NSS

29

6675818

SEAL dust

30

6675814

SEAL KIT Ref. 4, 5, 7, 10, 19 & 27
