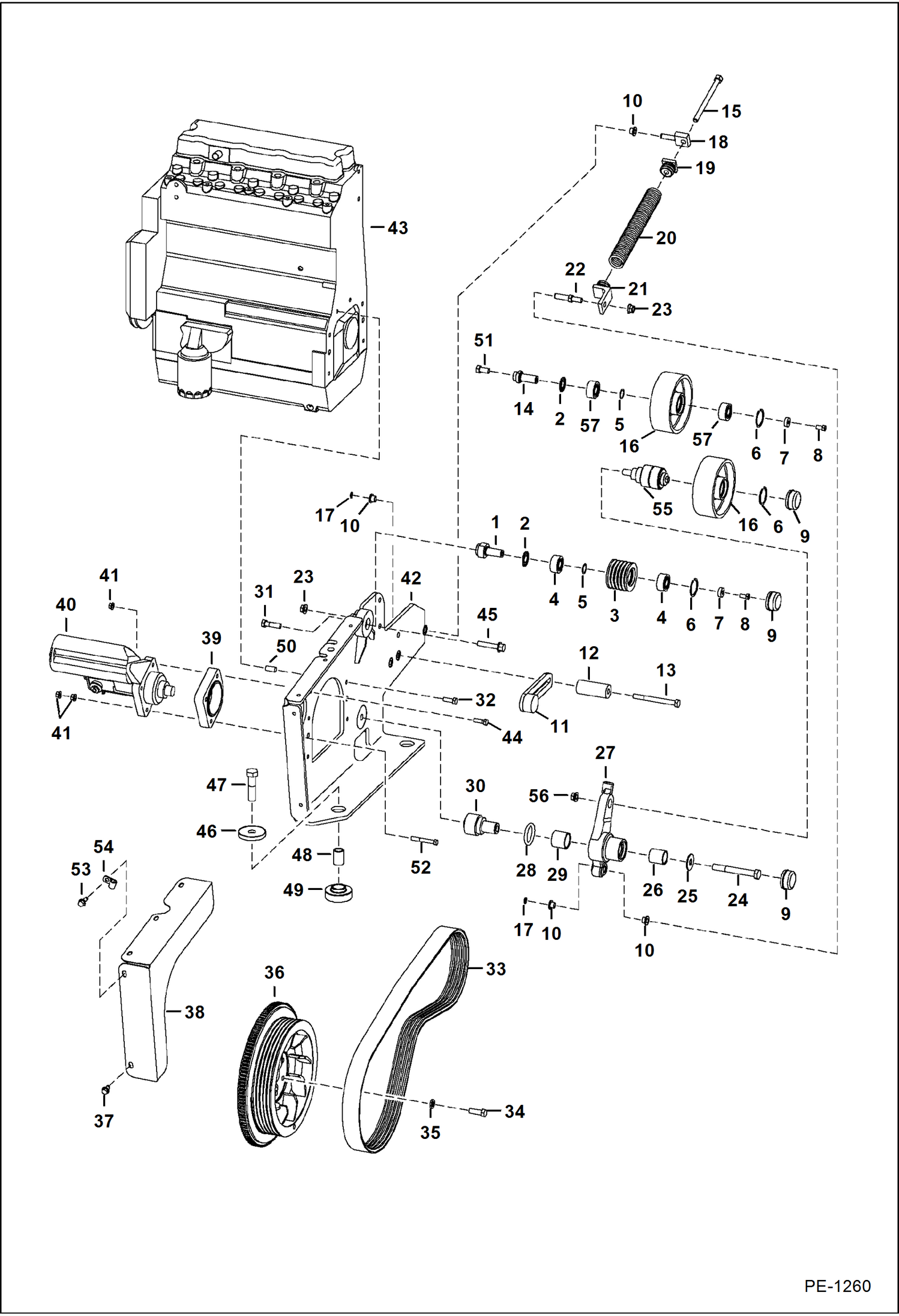

Запчасти Bobcat 900s ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

6800293

PIN top idler

2

6665307

SEAL

3

6800688

PULLEY top idler

4

6661229

BEARING - D

5

6701159

SHIM

6

6665308

SNAP RING

7

6707697

WASHER

8

17C612

BOLT 5

9

6660967

CAP Use 6658266 grease

10

1313116

BUSHING

11

6800238

STOP idler

12

6801005

SPACER 3.5'' (88.9 mm) long

12

6810144

WASHER .106'' thick

13

17C880

BOLT .5'' dia x 5'' length

13

17C828

BOLT .5'' x 1.75''

14

SPINDLE NSS - spindle - Order Ref. 55 & 56 - Was 6707654 - B

15

6800450

BOLT

16

6800475

IDLER drive

17

6518955

SNAP RING

18

6587182

SWIVEL PIN swivel

19

6568425

ADAPTER

20

6569498

SPRING ASSY

21

6596850

BRACKET idler

22

6596851

PIN idler

23

55D8

NUT

24

17C1080

SCREW

25

6596839

WASHER

26

6671035

BUSHING

27

6802839

LINK idler

28

6661377

SEAL

29

6802852

TEE

30

6802854

PIVOT PIN

31

17C828

BOLT

32

1CM1030

BOLT

33

6669565

BELT, DRIVE drive

34

18C824

BOLT

35

6557929

WASHER

36

6800808

FLYWHEEL ASSY engine

36

6515771

RING GEAR

37

84G3712

BOLT 5

38

6805563

SHIELD drive

39

6562480

SPACER starter

40

STARTER See Illustration STARTER/ E2395

41

97D6

NUT 10

42

6805974

MOUNT ASSY rear engine - Was 6800320 - A

43

ENGINE See Illustration ENGINE & UPPER GASKET KIT/ B17225

44

17C644

BOLT

45

35C840

BOLT

46

6802984

WASHER

47

17C1248

BOLT

48

6806112

SPACER tube

49

6661785

MOUNT, ENG engine

50

6924344

DOWEL Was 3725347 - A

51

BOLT NSS - Order Ref. 55 & 56 - Was 17C816 - B

52

17C652

BOLT

53

84G3716

SCREW 5

54

30H31

CLAMP 10

55

6691330

BEARING

56

95D8

NUT

57

SEAL NSS - Order Ref. 55 & 56 - Was 6661229 - A
