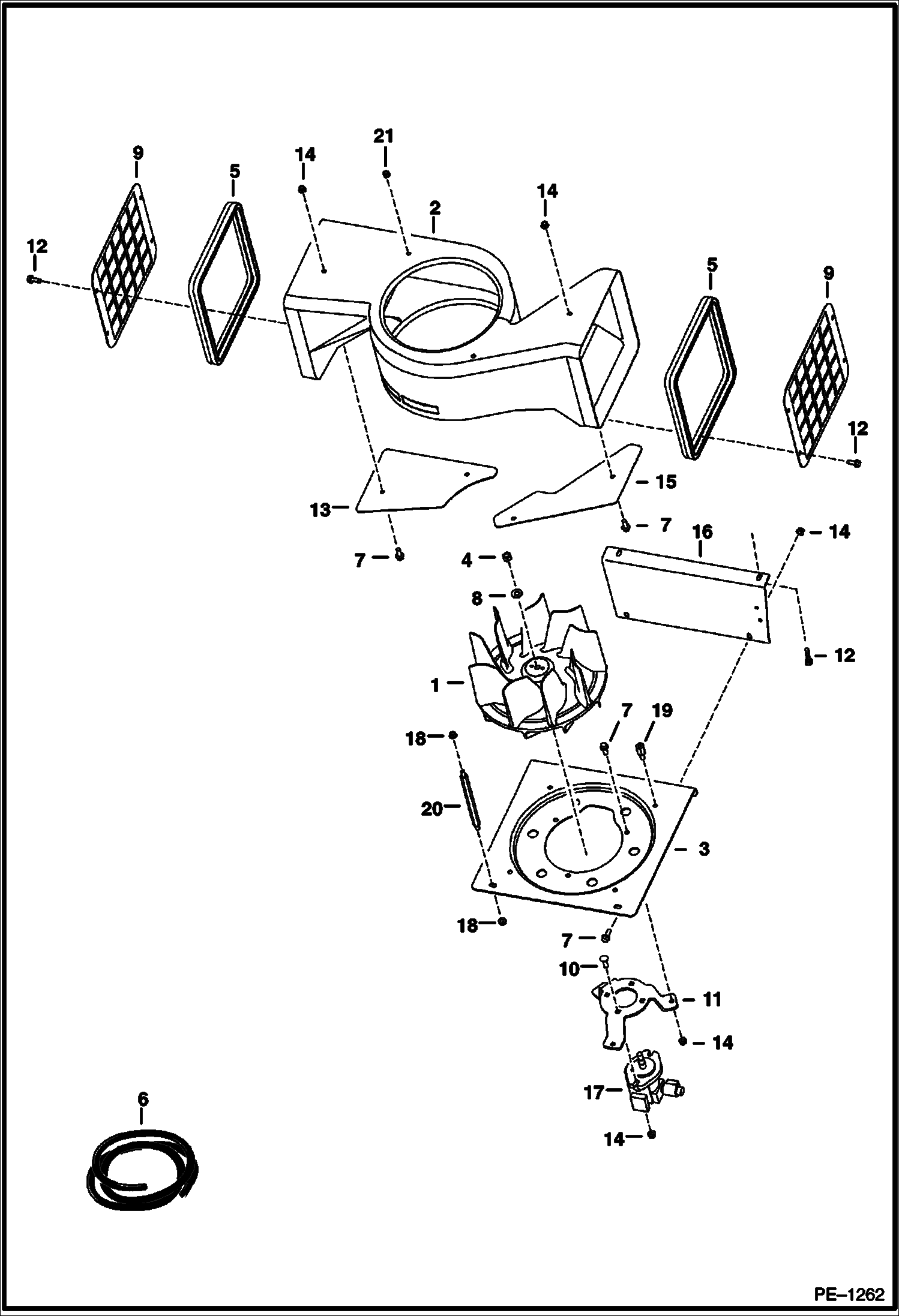

Запчасти Bobcat 900s COOLING SYSTEM POWER UNIT

1

6804741

FAN

2

6806151

HOUSING fan

3

6806179

MOUNT Was 6596939 - B

4

96D8

NUT

5

SEAL NLA - 47.44'' (1205 mm) long - Order Ref. 6

6

6667586

SEAL bulk - Sold Per Foot

7

35C616

BOLT 5

7

35C616

BOLT 5

7

35C616

BOLT 5

7

35C616

BOLT 5

8

25E18

WASHER

9

6596936

SCREEN

10

37C620

BOLT

11

6596940

BRACKET fan

12

84G3716

SCREW 5

13

6806081

PLATE

14

57D6

NUT 5

15

6806082

PLATE

16

6805818

BRACKET

17

6674740

HYD FAN See Illustration HYDRAULIC FAN MOTOR/ MS1380

18

97D6

NUT 10

18

97D6

NUT 10

18

97D6

NUT 10

18

97D6

NUT 10

19

6803150

SPACER

19

6803150

SPACER

20

6577605

SPACER

21

6674894

NUT spring
