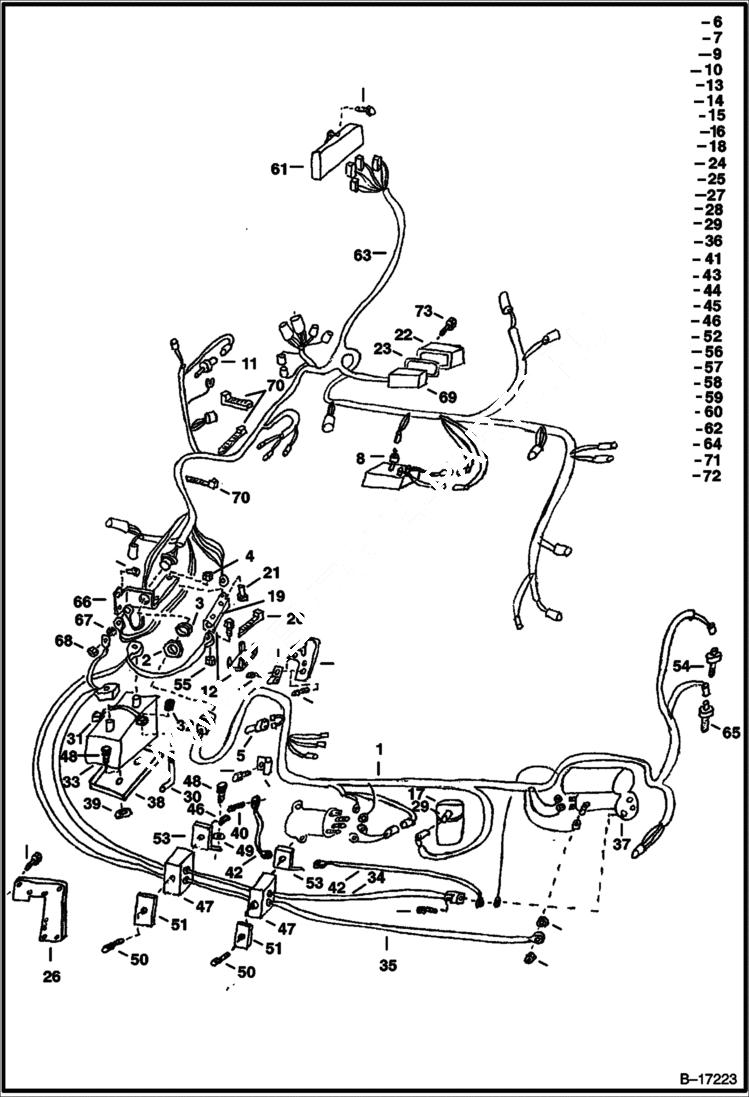

Запчасти Bobcat 900s ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6719160

HARNESS engine

2

6664972

NUT

3

6676172

WASHER

4

59D4

NUT 5

5

6718415

SWITCH eng. temp.

6

19F4

BUSHING

7

35C512

BOLT

8

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

9

7216516

SENSOR, FUEL fuel - W/Ref. 71 - Was 6680439 - A

10

ALTERNATOR See Illustration ALTERNATOR/ C3312 - Was 6661611 - B

11

6718417

SENDER hydro. temp. - 230 degrees

12

6675154

HOLDER fuse

13

84G3712

BOLT 5

14

27E5

WASHER

15

6672321

SWITCH temp. sensor/cold start

16

30H60

CLIP

17

6672584

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

17

6668819

FILTER, OIL HYD 9.5'' (241,3 mm) long

18

6679820

RELAY starter relay - Was 6674376 - A

19

6675155

FUSE, 100A mega

20

10C412

BOLT

21

25G410

CAPSCREW

22

6716621

COVER fuse box

22

6736071

KIT extreme applications - W/decal & insulation

22

6718774

DECAL relay/fuse

22

6731275

INSULATION

23

6725302

GASKET fuse cover

24

43C616

BOLT Was 45C000616B - B,D

25

6665357

LOCK yellow

26

6800809

BRACKET

27

37C616

BOLT

28

37C620

BOLT

29

6674315

SENSOR eng oil pressure

30

6808878

BOLT Was 6576280 - B,D

31

6569203

CLAMP

32

59D5

NUT 5

33

6665427

BATTERY, DRY 950 AMP

34

6715338

CABLE negative

35

6806355

CABLE less conduit - positive

36

85D6

NUT, 5

37

STARTER See Illustration STARTER/ E2395

38

6712536

PAN battery

39

6555455

WASHER

40

1CM1020

BOLT

41

61D4

NUT 5

42

6563025

CABLE negative - 22'' (558,80mm) long

43

6665527

TIE never modify

44

97D6

NUT 10

45

30H35

CLAMP 10

46

97D5

NUT

47

6715197

CLAMP

48

84G3716

SCREW 5

49

6E6

WASHER

50

17C540

BOLT

51

6715132

RETAINER

52

30H50

CLIP

53

6715307

BRACKET

54

6665371

SWITCH condition indicator

55

12D8

NUT

56

25E15

WASHER

57

12D10

NUT

58

57D6

NUT 5

59

14D10

NUT

60

35C616

BOLT 5

61

6678673

CONTROLLER Was 6678068 - A

62

6649481

LIGHT, WEDGE BASE base lamp

63

6719383

HARNESS controls

64

24F1

ELBOW

65

6684037

SENSOR rpm - Was 6658260 - B

66

6726504

BRACKET

67

53D6

NUT

68

59D6

NUT

69

6718659

HOUSING fuse

69

6654806

FUSE, 15A

69

6702444

FUSE 25A 5

69

6718034

FUSE, 30A

69

6679820

RELAY relay switch

70

6624289

STRAP, TIE

71

79K14

O RING 10

71

6717579

GASKET

72

6729058

HARNESS, MFR main frame - engine & controls

73

84G3112

BOLT 5 mount fuse box cover
