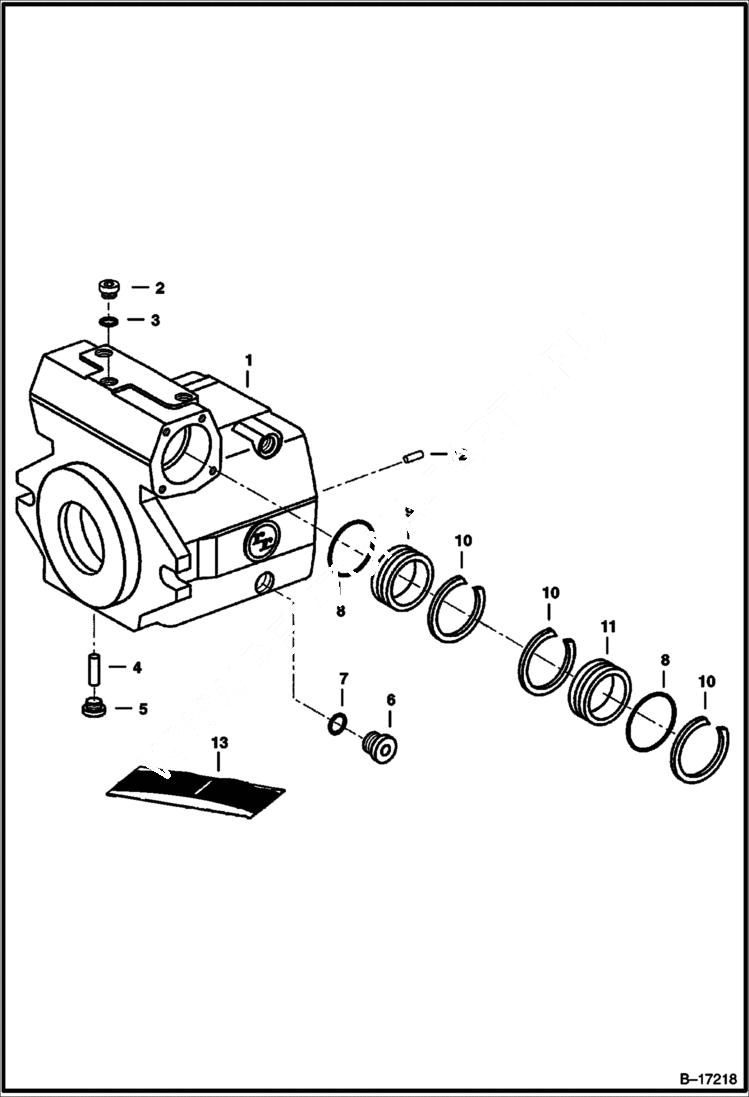

Запчасти Bobcat 900s HOUSING ASSY HYDROSTATIC SYSTEM

1

6671781

HOUSING See Illustration HYDROSTATIC PUMP/ B17215 - Ref. 2 & W/Ref. 2-12 on this page

2

6671783

PLUG

3

6671784

O-RING W/Ref. 2

4

6967414

PIN Was 6671789 - D

5

6682878

SCREW Was 6671790 - A

6

6671748

PLUG

7

6671787

O-RING W/Ref. 6

8

6671743

O-RING

9

6671785

BUSHING

10

6671786

V-RING

11

6671788

BUSHING

12

6671782

PIN

13

6672016

SEAL KIT See Illustration HYDROSTATIC PUMP/ C3237 REF. 28
