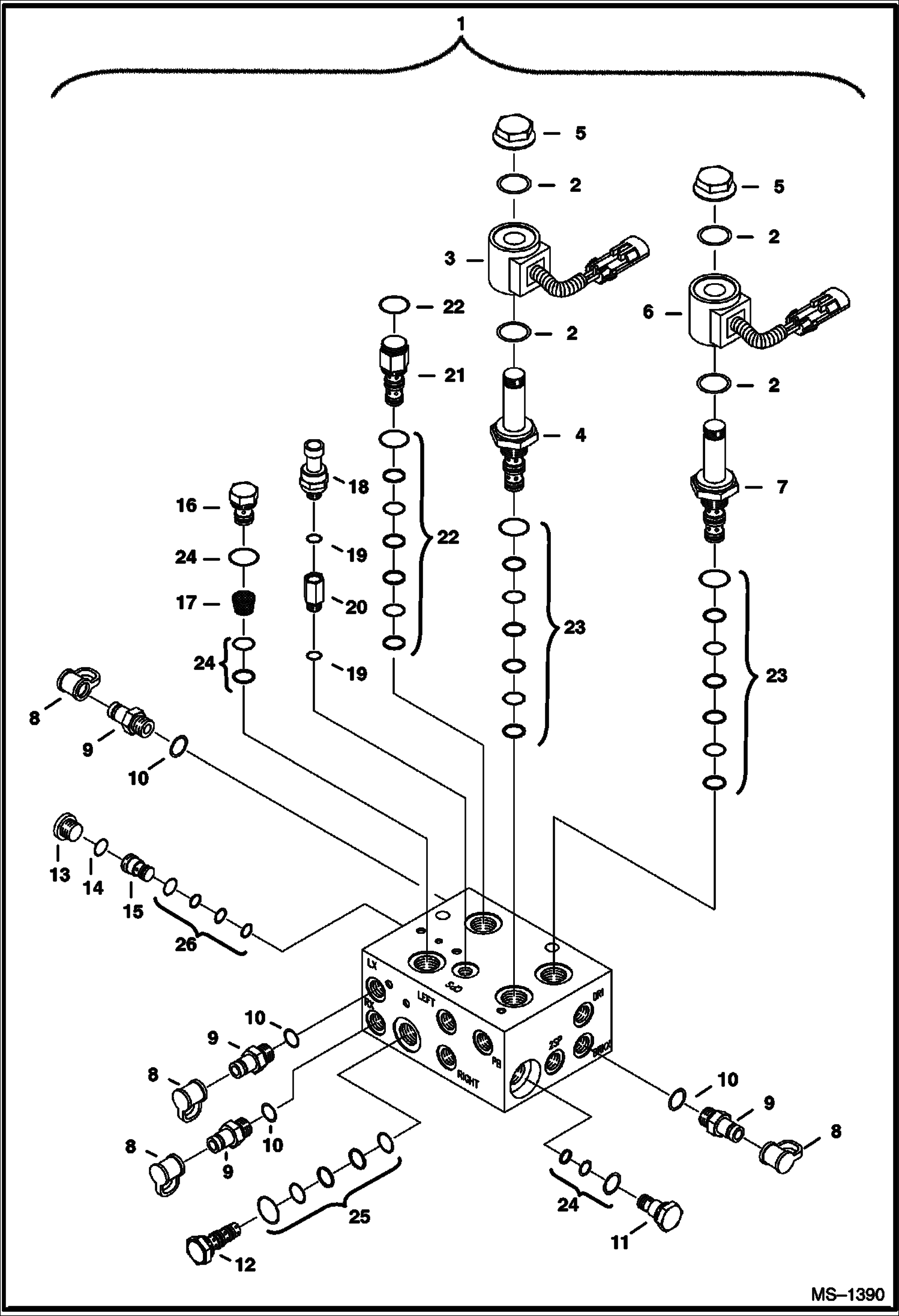

Запчасти Bobcat 900s VALVE ASSEMBLY (S/N 562216355 & Above, 516516057 & Above) HYDROSTATIC SYSTEM

1

6679101

VALVE Ref. 2 - 21

2

54K20028

O RING 10

3

6671025

COIL

4

6680401

VALVE W/Ref. 23

5

6668820

NUT

6

6675731

COIL

7

6680403

VALVE W/Ref. 23

8

6630367

CAP

9

6671613

COUPLER diagnostic - W/Ref. 10

10

75K6

O-RING

11

6675265

CHECK VALVE check - W/Ref. 24

12

6675262

VALVE shuttle - W/Ref. 25

13

6672762

PLUG W/Ref. 14

14

75K4

ORING

15

6675260

VALVE shuttle - W/Ref. 26

16

6675288

VALVE W/Ref. 17 & 24

17

6675927

SCREEN

18

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

19

79K3

O RING 10

20

6718948

SNUBBER W/Ref. 19

20

6675278

FILTER

21

6675264

VALVE directional - W/Ref. 22

22

6672760

SEAL KIT

23

6673188

SEAL KIT

24

6669087

SEAL KIT

25

6675263

SEAL KIT

26

6675261

SEAL KIT
