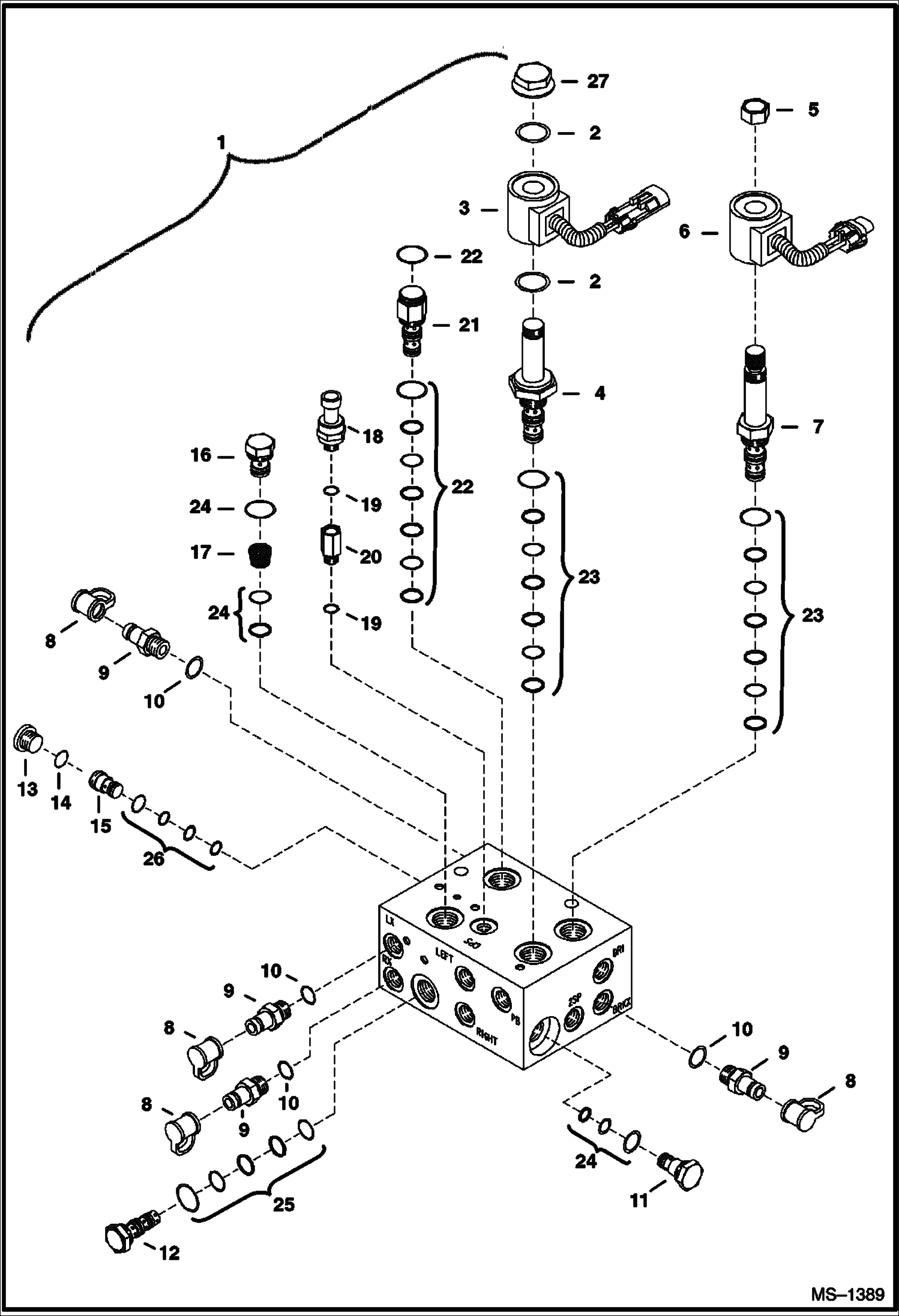

Запчасти Bobcat 900s VALVE ASSEMBLY (S/N 562216354 & Below, 516516056 & Below) HYDROSTATIC SYSTEM

1

6674677

VALVE NLA - Ref. 2 - 21- Order 6679101 - Was 6674677 - A

2

54K20028

O RING 10

3

6671025

COIL W/ female connector

4

6673193

VALVE W/Ref. 23

5

6675663

NUT

6

6675731

COIL W/ male connector

7

6673187

VALVE W/Ref. 23

8

6630367

CAP

9

6671613

COUPLER diagnostic - W/Ref. 10

10

75K6

O-RING

11

6675265

CHECK VALVE check - W/Ref. 24

12

6675262

VALVE shuttle - W/Ref. 25

13

6672762

PLUG W/Ref. 14

14

75K4

ORING

15

6675260

VALVE shuttle - W/Ref. 25

16

6675288

VALVE W/Ref. 17 & 24

17

6675927

SCREEN

18

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

19

79K3

O RING 10

20

6718948

SNUBBER W/Ref. 19

20

6675278

FILTER

21

6675264

VALVE directional - W/Ref. 22

22

6672760

SEAL KIT

23

6673188

SEAL KIT

24

6669087

SEAL KIT

25

6675263

SEAL KIT

26

6675261

SEAL KIT

27

6668820

NUT
