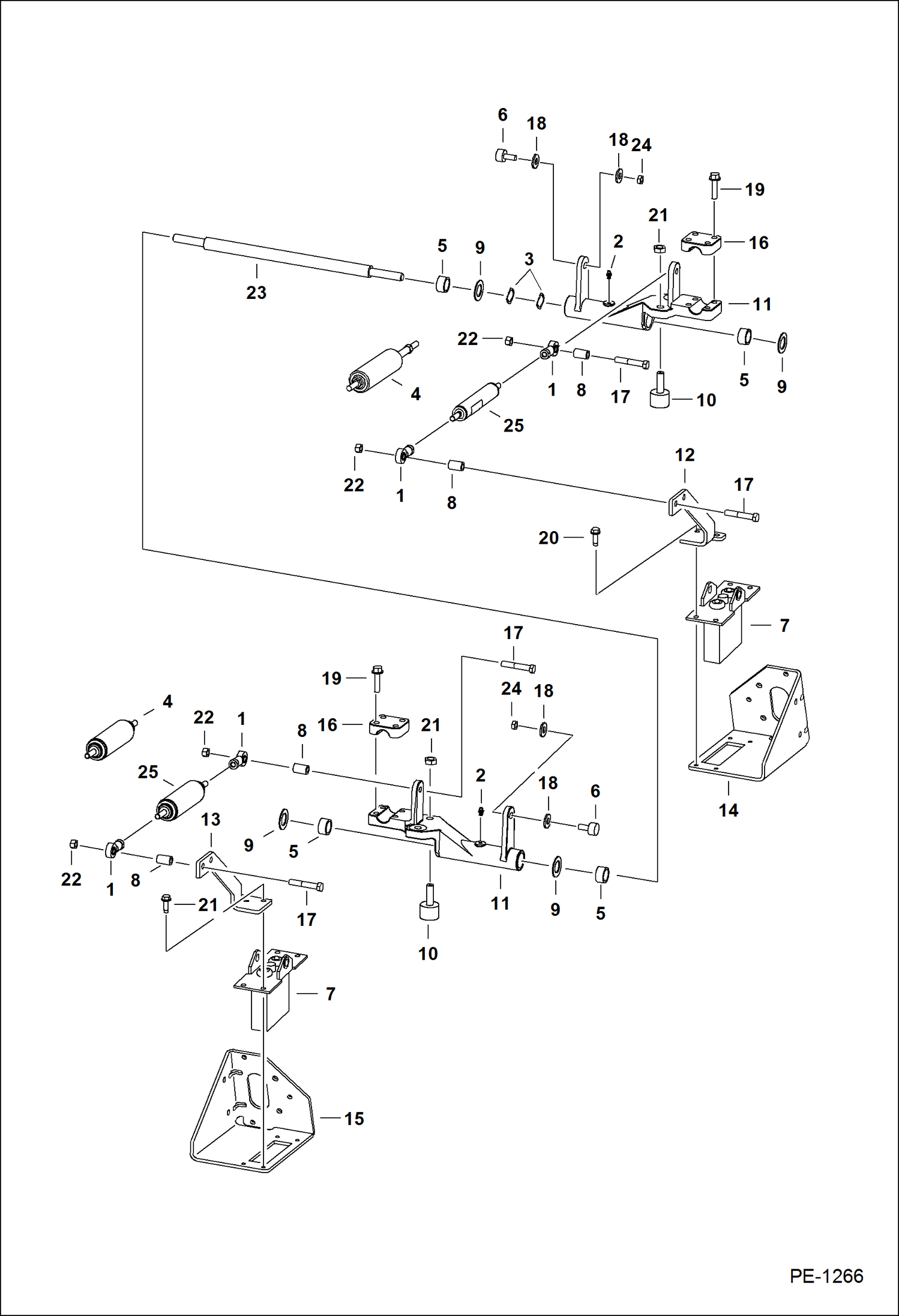

Запчасти Bobcat 900s HAND CONTROLS HYDROSTATIC SYSTEM

1

6512954

ROD END R.H. threads

2

6518200

FITTNG, GREASE 10

3

6599741

WASHER

4

GAS SPRING NLA - Japan Option - Order Ref. 25 - Was 6649551 - A

5

6673710

BEARING, NEEDLE needle

6

6673789

BEARING roller

7

CONTROLLER See Illustration CONTROLLER/ B17211

8

6708314

BUSHING, SPACER Was 6705484 - A

9

6716916

WASHER

10

6806295

STOP

11

6806296

BELLCRANK

12

6806301

BRACKET RH support

13

6806302

BRACKET LH support

14

6806305

BRACKET RH steering

15

6806306

BRACKET LH steering

16

6806309

CLAMP

17

17C636

BOLT

18

25E18

WASHER

19

35C624

BOLT

20

84G3116

SCREW

21

8D8

NUT

22

95D6

NUT

23

6806307

SHAFT steering

24

8D6

NUT 5

25

7188108

GAS SPRING
