Запчасти Bobcat 900s BUCKET POSITION VALVE HYDRAULIC SYSTEM

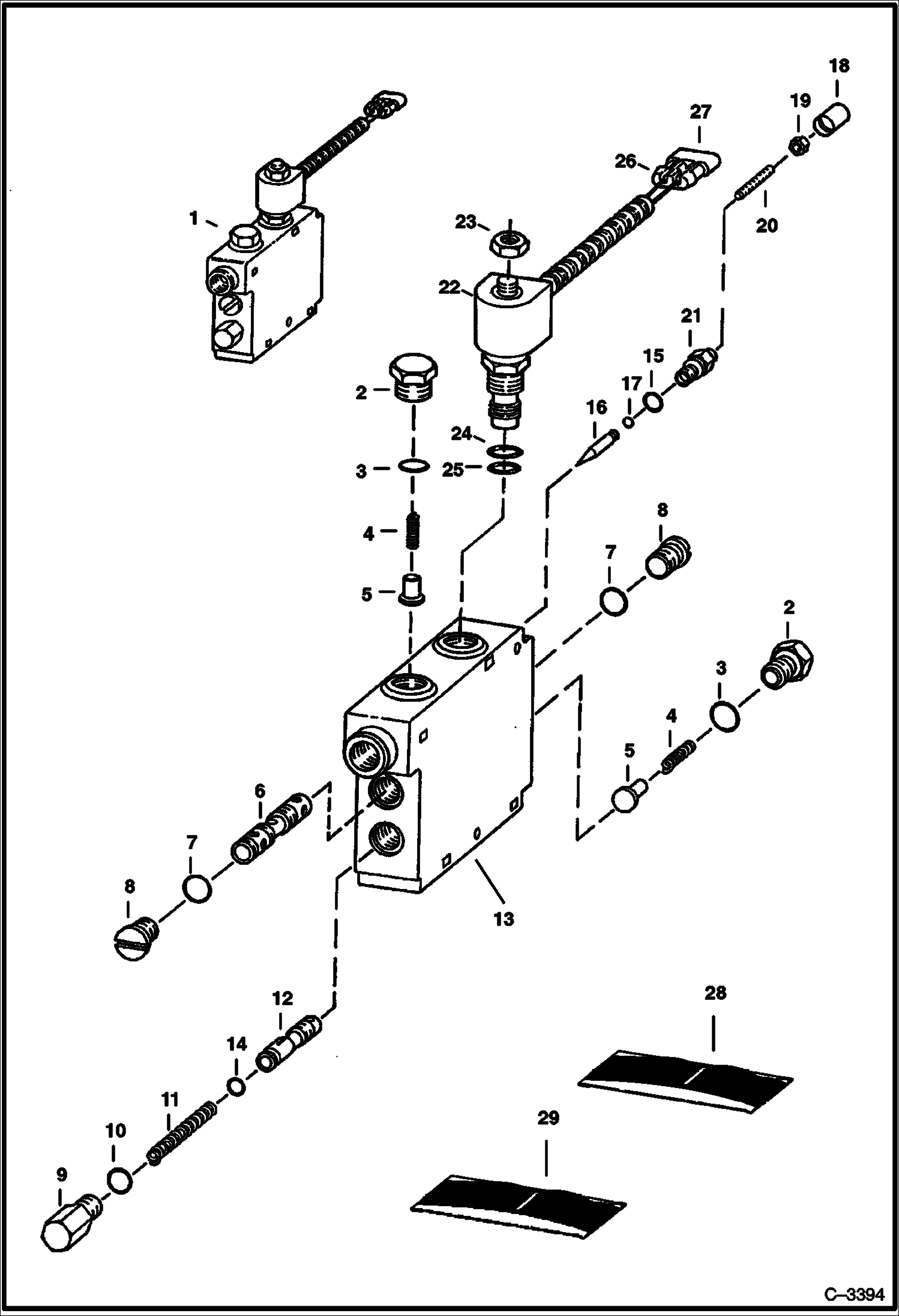

Схема запчастей Bobcat 900s - BUCKET POSITION VALVE HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6673958

VALVE W/Ref. 2 - 22

2

6647784

PLUG W/Ref. 3

3

79K10

O RING 10

4

6647785

SPRING

5

6647783

LOAD CHECK

6

SPOOL NSS

7

O-RING NSS

8

6676543

PLUG Was 6647780 - A

8

79K10

O RING 10

9

6667176

PLUG W/Ref. 10

10

79K10

O RING 10

11

6648294

SPRING

12

SPOOL NSS

13

BODY NSS

14

RETAINING RING NSS

15

O-RING NSS

16

6647777

PIN

17

O-RING NSS

18

COVER NSS

19

8D4

NUT Was 6631561 - A

20

6648293

SCREW

21

6647778

CAP

22

6672863

VALVE, SOLENOID Ref. 23-27

23

6671527

NUT

24

O-RING NSS - large - Order Ref. 28

25

O-RING NSS - small - Order Ref. 28

26

6641180

LOCK Use W/ 2-pin connector

27

6641179

CONNECTOR 2-pin

28

6670634

SEAL KIT Ref. 23, 24, 25

29

6667185

KIT, SEAL Ref. 3, 7, 10, 15, 17 & 18

Выбрано товаров: 30
