1

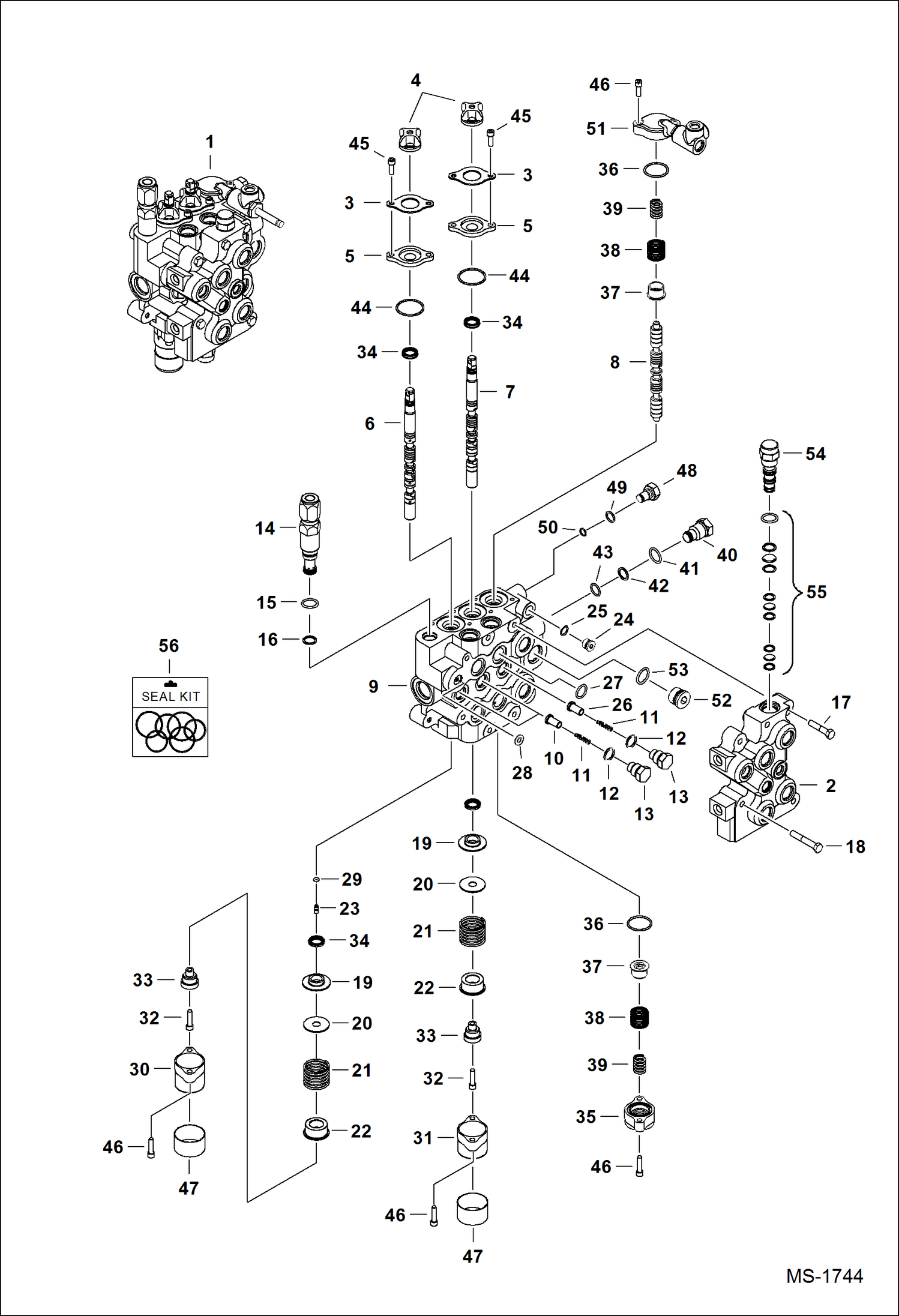

VALVE, CONTROL SERVICE See Illustration HYDRAULIC CONTROL VALVE/ NA6732 See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove
2
VALVE ASSY See Illustration BICS CONTROL VALVE/ PE1730 - BICS control
3
6589564
RETAINER
4
6587763
BOOT
5
6589565
BUSHING
6
7222716
SPOOL, LIFT lift - #1 or red - Was 6674297 - A
6
7222717
SPOOL, LIFT lift - #2 or green - Was 6674298 - A
6
7222718
SPOOL, LIFT lift - #3 or black - SEE NOTE - Was 6674299 - A
7
7108242
SPOOL, TILT
8
6588074
SPOOL auxiliary
9
BODY NSS - valve
10
6592115
SEAT load check
11
6592117
SPRING, LOAD CHECK
12
79K8
O RING 10
13
6592116
NUT load check - W/Ref. 12
14
6674146
VALVE main relief - W/Ref. 15-18 - press. to be set in field
15
6650102
O-RING
16
6650101
O-RING
17
43C524
BOLT
18
43C532
BOLT
19
6595663
BUSHING
20
7211397
WASHER, SPRING Was 6587523 - A
21
6587580
SPRING
22
6592100
COLLAR
23
6801167
PLUG plastic - 0.69'' long
24
24K8
PLUG W/Ref. 25 - socket head
25
95K12
O-RING
26
6596569
SEAT load check
27
55K212
O RING 10
28
55K204
O RING 10
29
54K20002
O'RING 10
30
6803092
BONNET .625 flange
31
7101345
BONNET, DETENT HYD VALVE
32
30G416
BOLT
33
6592109
ADAPTER
34
6683274
SEAL, SPOOL 10 Was 6665846 - A
35
6588781
END CAP .87'' thick
36
58K124
O RING 10
37
7108780
SLEEVE
38
6596332
SPRING
39
6595131
SPRING .72'' OD
40
6592720
PLUG W/Ref. 41-43
41
79K10
O RING 10
42
80K14
BACK-UP WASHER Was 73K000014B - B
43
6677106
O-RING
44
1K127
O-RING 10 Was 93K127 - A
45
29G412
BOLT
46
29G416
BOLT 1'' long
47
6662848
CAP
48
6806561
PLUG W/Ref. 49 & 50
49
79K7
O RING 10
50
25K20012
O RING 10
51
6805651
BLOCK aux
52
6812171
PLUG W/Ref. 53
53
95K6
O'RING
54
6689739
VALVE
55
6669734
KIT, SEAL
56
7123961
SEAL KIT, COMPLETE Includes all seal kits
56
6673904
SEAL KIT port relief - W/Ref. 41-43
56
7123962
SEAL KIT 3 spool - W/Ref. 4, 23, 29, 34, 36, & 44
56
7123963
SEAL KIT, EXTERNAL FITTING external fitting - W/Ref. 12, 25, 27, 28, 49, 50, & 53
56
6669734
KIT, SEAL pilot valve - Ref. 55
