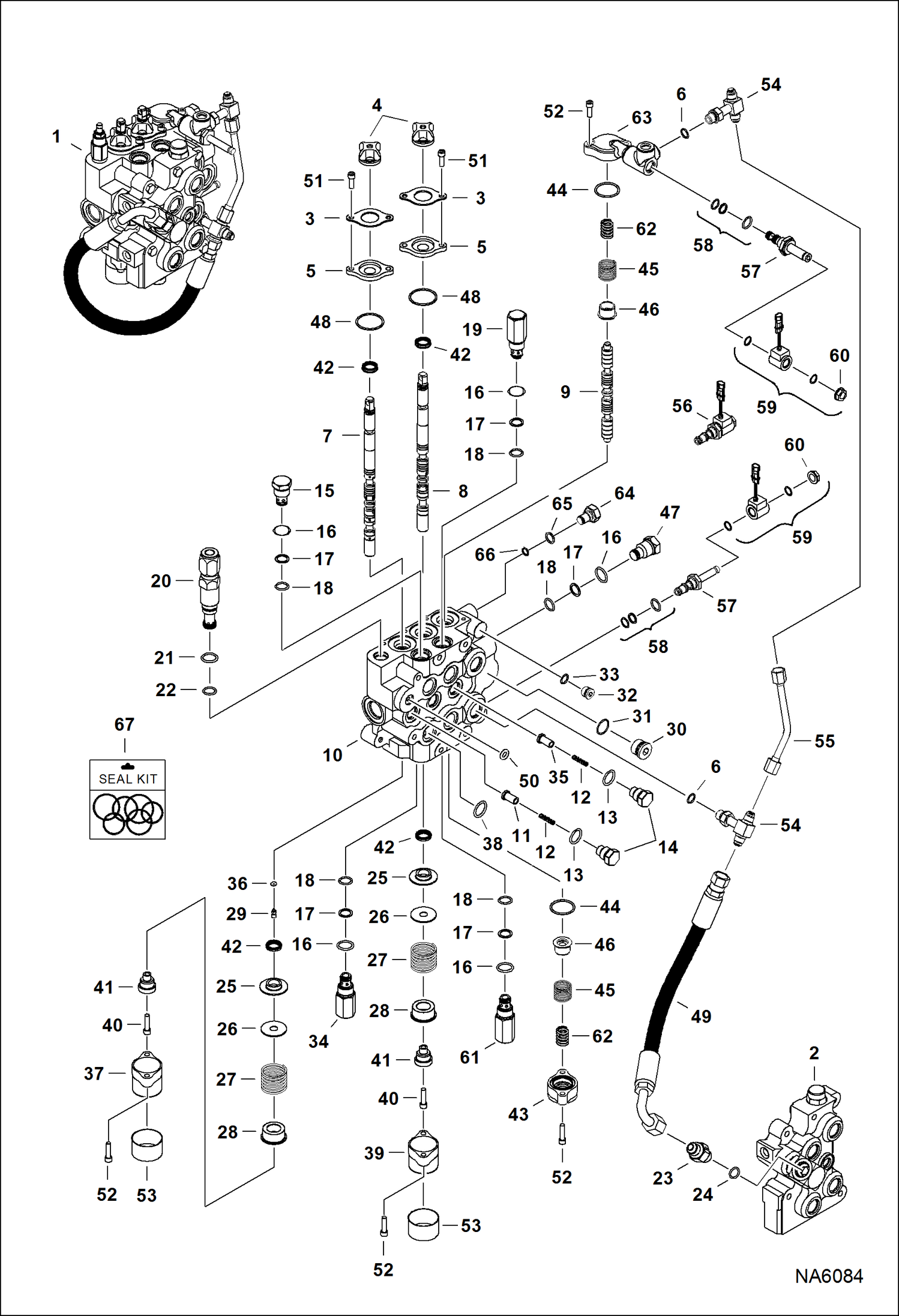

Запчасти Bobcat 900s HYDRAULIC CONTROL VALVE (Advanced Control System) (Spool Lock) (SN 516516046 & Above & 562216322 & Above) HYDRAULIC SYSTEM

1

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ MS1744 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing par

2

VALVE, BICS See Illustration BICS CONTROL VALVE/ PE1730 - NLA - Was 6814578 - A

3

6589564

RETAINER

4

6587763

BOOT

5

6589565

BUSHING

6

99K6

O RING tapered boss face

7

7222716

SPOOL, LIFT lift - #1 or red - SEE NOTE - Was 6674297 - A

7

7222717

SPOOL, LIFT lift - #2 or green - SEE NOTE - Was 6674298 - A

7

7222718

SPOOL, LIFT lift - #3 or black - SEE NOTE - Was 6674299 - A

8

SPOOL NLA - tilt - # 1 or Red - SEE NOTE - Order 7108242 - Was 6677662 - A

8

SPOOL NLA - tilt - # 2 or Green - SEE NOTE - Order 7108242 - Was 6677663 - A

8

7108242

SPOOL, TILT

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check - W/Ref. 13

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

6678574

RELIEF VALVE port relief - W/Ref. 16-18 - Was 6673184 - A

20

6674146

VALVE main relief - W/Ref. 21 - 24

21

6650102

O-RING

22

6650101

O-RING

23

6681933

CHECK VALVE W/Ref. 68

24

79K6

O RING 10

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6801167

PLUG plastic - 0.69'' long

30

90K8

PLUG W/Ref. 30 - socket head - Was 90KV00008B - A

31

95K12

O-RING

32

6812171

PLUG

33

75K6

O-RING

34

6679757

VALVE 4000 psi - Was 6671583 - A

35

6596569

SEAT

36

54K20002

O'RING 10

37

6803092

BONNET .625 flange

38

55K212

O RING 10

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6588781

END CAP .87'' thick

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

6801712

HOSE

50

55K204

O RING 10

51

29G412

BOLT

52

29G416

BOLT 1'' long

53

6662848

CAP

54

6805696

TEE W/Ref. 6

55

6806496

TUBELINE

56

6665084

SOLENOID

57

6676249

STEM, VALVE SOLENOID Was 6666616 - B

58

6586459

SEAL KIT

59

6717706

COIL, 10 VOLT pwm - 10 volt - w/nut

60

6679961

NUT coil

60

6676566

NUT

61

6678552

VALVE port relief & anti-cav.- W/Ref. 16-18 - 3500 PSI - use in tilt cylinder base end port - Was 6671632 - A

62

6595131

SPRING .72'' OD

63

6805651

BLOCK aux

64

6806561

PLUG W/Ref. 65-66

65

79K7

O RING 10

66

58K012

O-RING 10 Was 58K000012B - A

67

6816253

KIT, SEAL complete - Ref. 4, 13, 16-18, 31, 32, 38, 42, 44, 48, 50-52, 65 & 66 - Was 6809448 - A

67

6816250

KIT, SEAL one spool - Ref. 4, 36, 42, 48, 51 & 52 - Was 6803605 - A

67

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A

67

6586459

SEAL KIT W/Ref. 16-18
