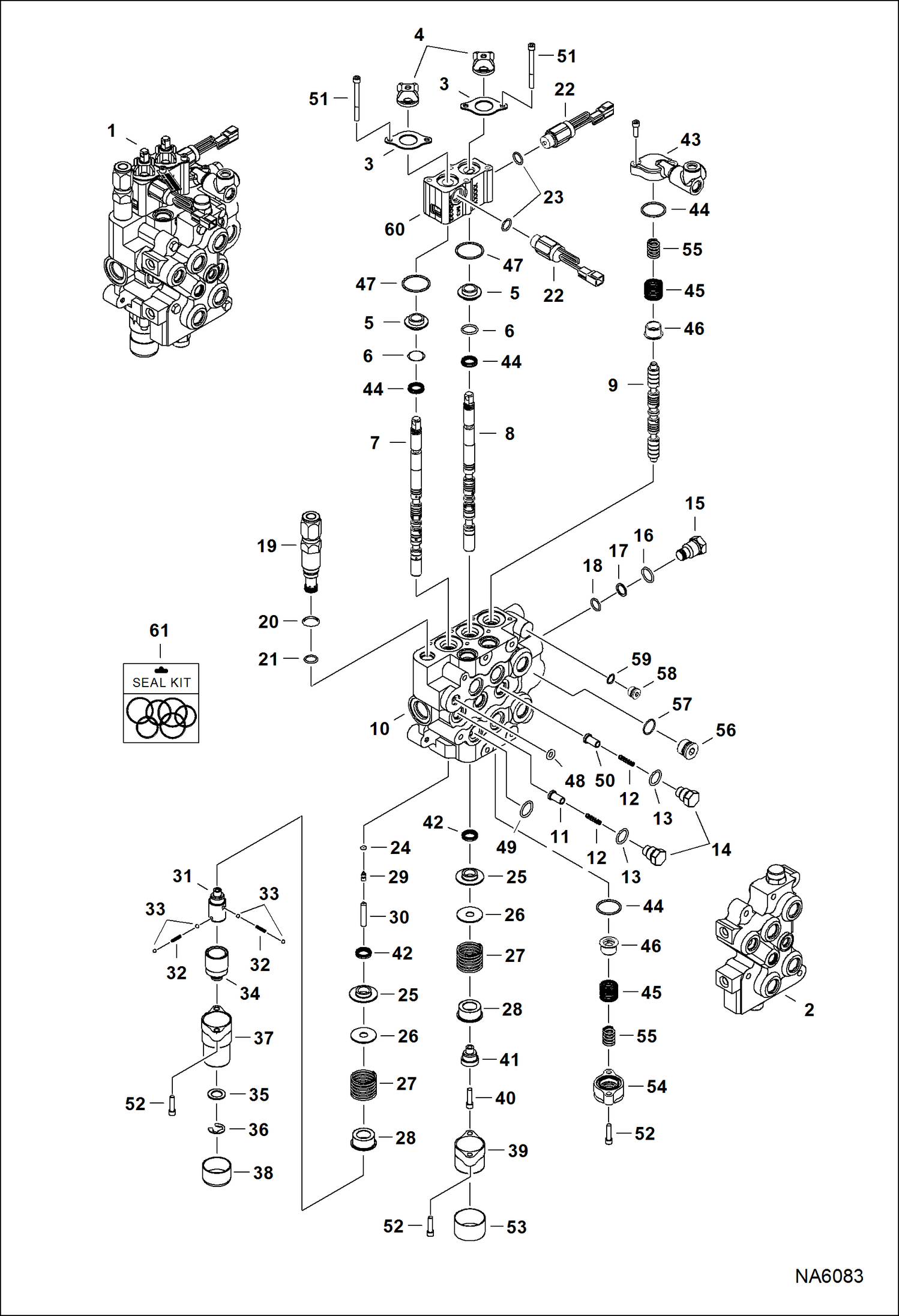

Запчасти Bobcat 900s HYDRAULIC CONTROL VALVE (Manual Control) (Service Valve) HYDRAULIC SYSTEM

1

VALVE, CONTROL SERVICE See BTI295 NLA - Was 6627702 - A

1

7229299

VALVE, CONTROL SERVICE See BTI295

2

VALVE, BICS See Illustration BICS CONTROL VALVE/ PE1730 - NLA - Was 6814269 - A

3

6589564

RETAINER

4

6587763

BOOT

5

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

6

82K019

O-RING alignment

7

6814511

SPOOL, LIFT lift lock - Was 6806731 - A

8

6815152

SPOOL, TILT

9

6588074

SPOOL

10

VALVE, CONTROL SERVICE body NLA - Order Ref. 1 - Was 6597568 - A

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT

15

6592720

PLUG

16

79K10

O RING 10

17

80K14

BACK-UP WASHER

18

58K014

O-RING 10 backup washer required

18

6677106

O-RING backup washer not required

19

6674146

VALVE

20

6650102

O-RING

21

6650101

O-RING

22

6677383

SOLENOID, LOCK SPOOL

23

79K8

O RING 10

24

54K20002

O'RING 10

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10

43

6805651

BLOCK

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE

47

1K127

O-RING 10

48

55K204

O RING 10

49

55K212

O RING 10

50

6596569

SEAT

51

29G444

BOLT

52

29G416

BOLT

53

6662848

CAP

54

6588781

END CAP

55

6595131

SPRING

56

24K8

PLUG

57

79K12

O RING 10

58

6812171

PLUG

59

75K6

O-RING

60

6812031

BLOCK spool lock

61

6816253

KIT, SEAL complete valve - Ref. 4, 13, 16-18, 24, 42, 44, 47-52, 57 & 59

61

6816252

SEAL KIT spool - Ref. 4, 24, 42, 47, 51 & 52

61

6809425

SEAL KIT Ref. 13 & 16-18
