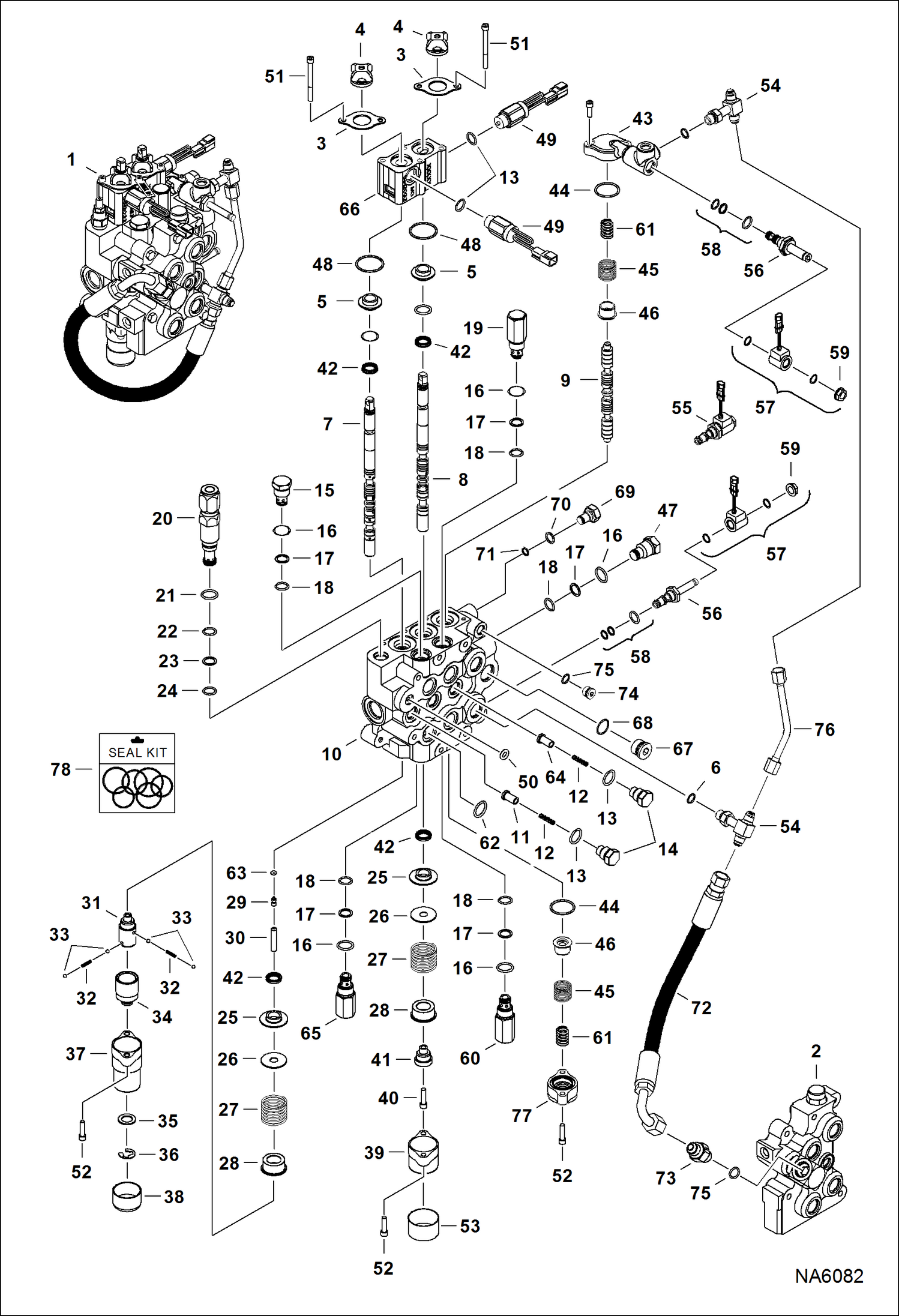

Запчасти Bobcat 900s HYDRAULIC CONTROL VALVE (W/BICS Control Valve) (SN 516516046 & Above & 562216322 & Above) HYDRAULIC SYSTEM

1

VALVE, CONTROL See BTI336 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts a

1

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6083 - NLA - Was 6814562 - A

2

VALVE, BICS See Illustration BICS CONTROL VALVE/ PE1730 - NLA - Was 6814269 - A

3

6589564

RETAINER

4

6587763

BOOT

5

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

6

82K019

O-RING alignment

7

SPOOL NLA - lift - # 1 - SEE NOTE - Order 6811411 - Was 6675736 - A

7

SPOOL NLA - lift - # 2 - SEE NOTE - Order 6811411 - Was 6675737 - A

7

6814511

SPOOL, LIFT Was 6811411 - A

8

SPOOL NLA - tilt - # 1 - SEE NOTE - Order 6811412 - Was 6675738 - A

8

SPOOL NLA - tilt - # 2 - SEE NOTE - Order 6811412 - Was 6675739 - A

8

6815152

SPOOL, TILT

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

6678574

RELIEF VALVE port relief - W/Ref. 16-18 - Was 6673184 - A

20

6674146

VALVE main relief - W/Ref. 21-24

21

6650102

O-RING

22

6650101

O-RING

23

6806496

TUBELINE

24

6588781

END CAP

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6805651

BLOCK aux

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

SOLENOID NLA - W/Ref. 13-3 ''(76,2mm) wire - Order 6677383 Solenoid

49

6676029

SOLENOID, LOCK SPOOL 127 mm (5'') wire - W/Ref. 13 - Was 6677383 - B,D

50

55K204

O RING 10

51

29G444

BOLT

52

29G416

BOLT 1'' long

53

6662848

CAP

54

6805696

TEE W/Ref. 16 - tapered boss face

54

97K6

O RING flare end

55

6665084

SOLENOID Ref. 56-59

56

6676249

STEM, VALVE SOLENOID Was 6666616 - B

57

6717706

COIL, 10 VOLT pwm - 10 volt - w/nut

58

6586459

SEAL KIT

59

6679961

NUT coil

59

6676566

NUT

60

6678552

VALVE port relief & anti-cav.-W/Ref. 16 - 3500 PSI - use in tilt cylinder base end port - Was 6671632 - A

60

6673904

SEAL KIT Ref. 16, 17 & 18

61

6595131

SPRING .72'' OD

62

55K212

O RING 10

63

54K20002

O'RING 10

64

6596569

SEAT

65

6671583

RELIEF VALVE

66

6812031

BLOCK lock - Was 6805657 - A

67

90K8

PLUG W/Ref. 68 - Was 90KV00008B - A

68

95K12

O-RING

69

6806561

PLUG W/Ref. 70-71

70

79K7

O RING 10

71

25K20012

O RING 10 Was 58K000012B - B

72

6801712

HOSE

73

6681933

CHECK VALVE

74

90KV5

PLUG

75

79K6

O RING 10

76

6816253

KIT, SEAL complete - Ref. 2, 4, 6, 13, 16-18, 29, 42, 44, 48, 52, 58, 62 & 63 - Was 6809448 - A

76

6816252

SEAL KIT two spool - Ref. 4, 29, 42, 48, 51 & 63 - Was 6806941 - A

76

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A
