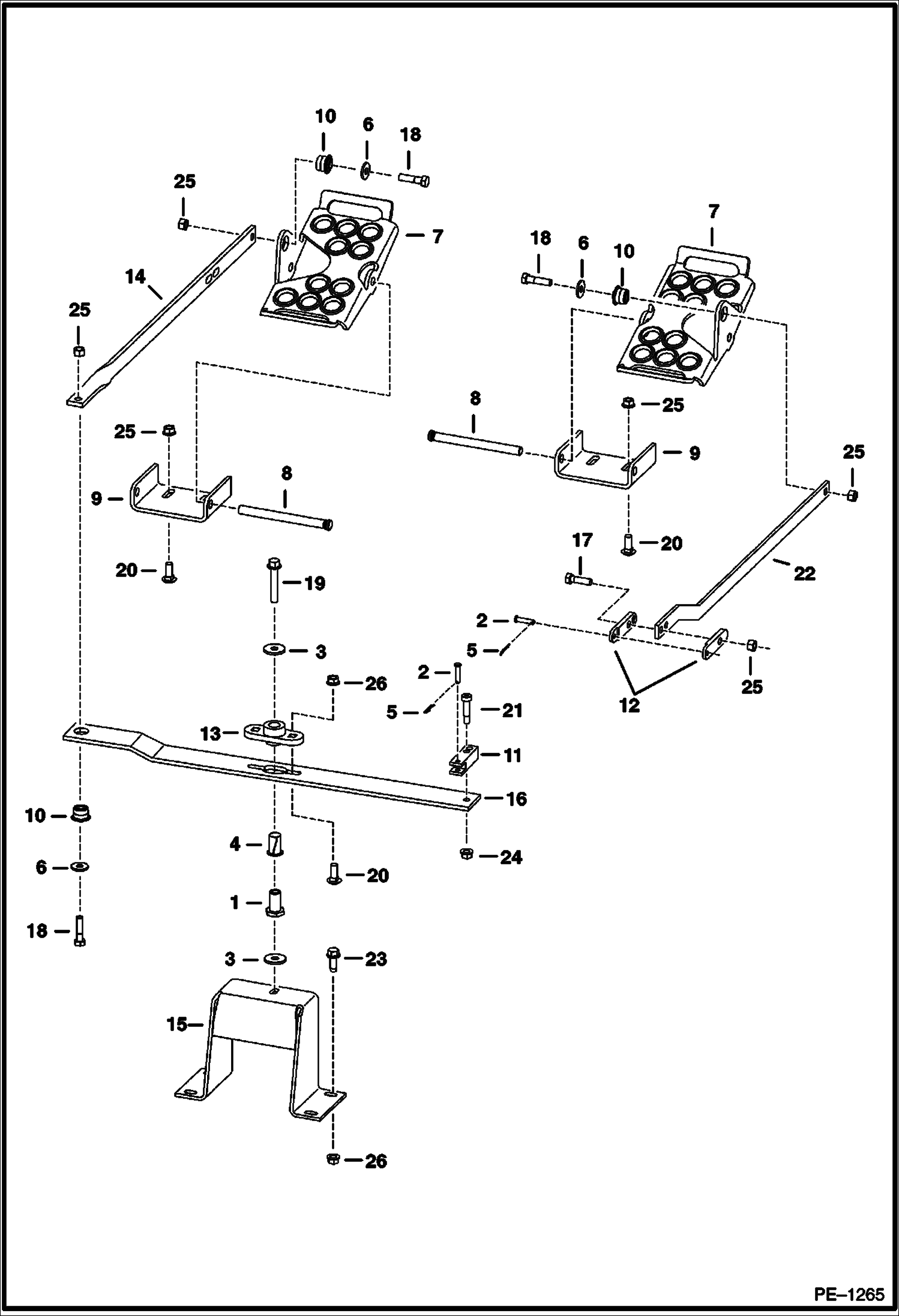

Запчасти Bobcat 900s CONTROL PEDALS HYDRAULIC SYSTEM

1

6803360

BUSHING pivot

2

6564654

PIN

3

619021

WASHER, 5

4

6512026

BUSHING flanged

5

6513495

COTTER PIN

6

6563914

WASHER

7

7115219

PEDAL Was 6726680 - A

8

6564657

PIN pivot

9

6726679

MOUNT Was 6564658 - A

10

6665701

BUSHING, PRESS FIT

11

6706105

YOKE

12

6708009

LINK valve

13

6708043

BUSHING flange

14

6710328

LINK pedal

15

6805869

BRACKET pivot

16

6805881

BELLCRANK

17

17C620

BOLT

18

17C624

BOLT 5

19

35C636

BOLT

20

7C620

BOLT Was 37C000616B - B

21

38C616

SCREW

22

6805879

LINK tilt

23

84G3716

SCREW 5

24

85D5

NUT 5

25

95D6

NUT

26

97D6

NUT 10
