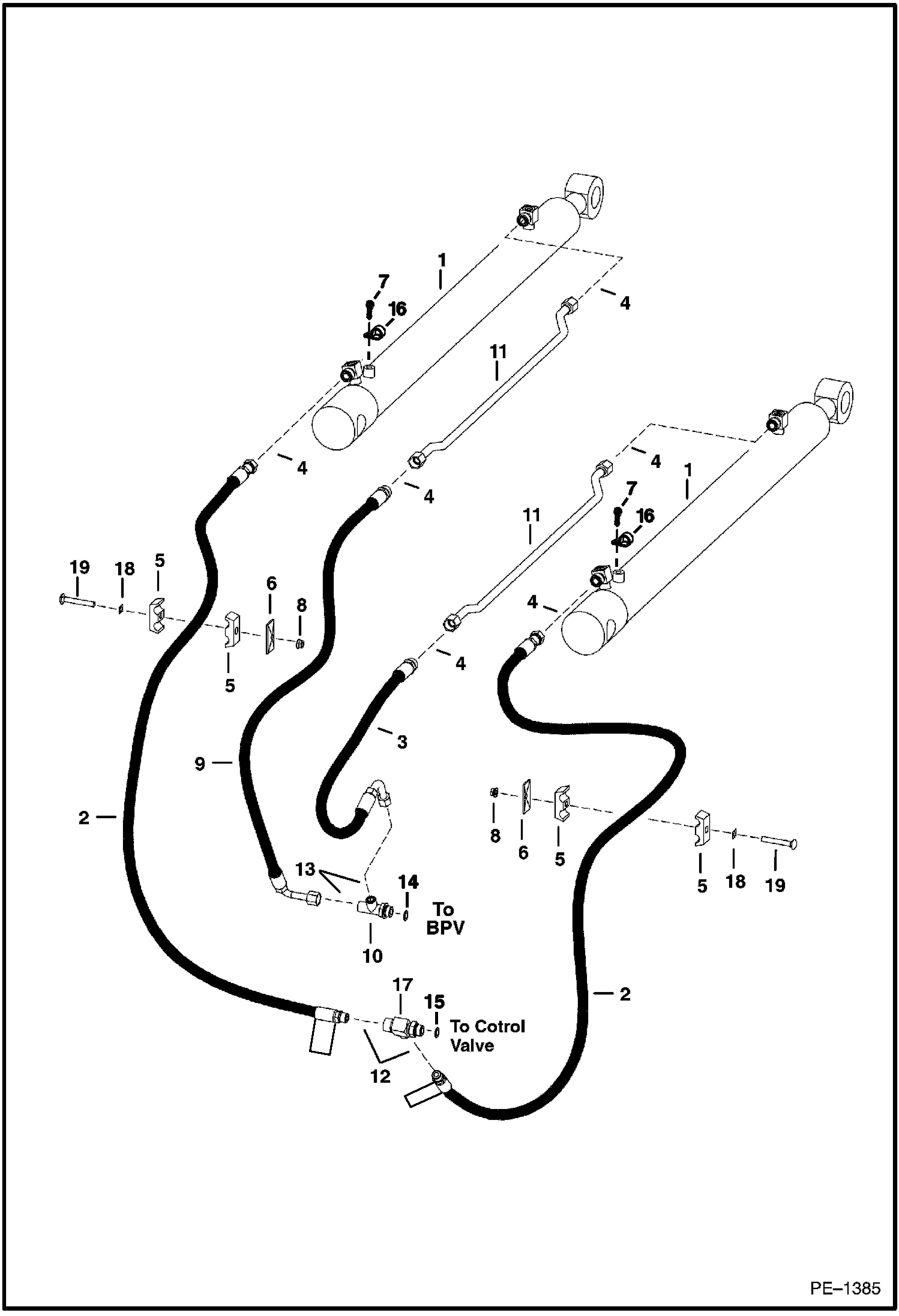

Запчасти Bobcat 900s HYDRAULIC CIRCUITRY (S/N 5622 & Above, 5165 & Above) HYDRAULIC SYSTEM

1

6597314

CYLINDER See Illustration LIFT CYLINDER/ B14034 LIFT

2

6810579

HOSE 73'' long - available only as an assembly W/danger decal installed

2

6809511

DECAL, DANGER

3

6810278

HOSE

4

55K16

O'RING

5

6592506

CLAMP

6

6592507

PLATE

7

35C610

BOLT 5

8

57D6

NUT 5

9

6810277

HOSE

10

46E810

FITTING W/Ref. 14

11

6800627

TUBELINE

12

75K8

O RING 10

13

55K14

O-RING

14

75K10

O RING 10

15

99K10

O'RING

16

30H38

CLIP

17

6810242

TEE W/Ref. 15

18

1612281

SPRINGNUT spring

19

37C644

BOLT
