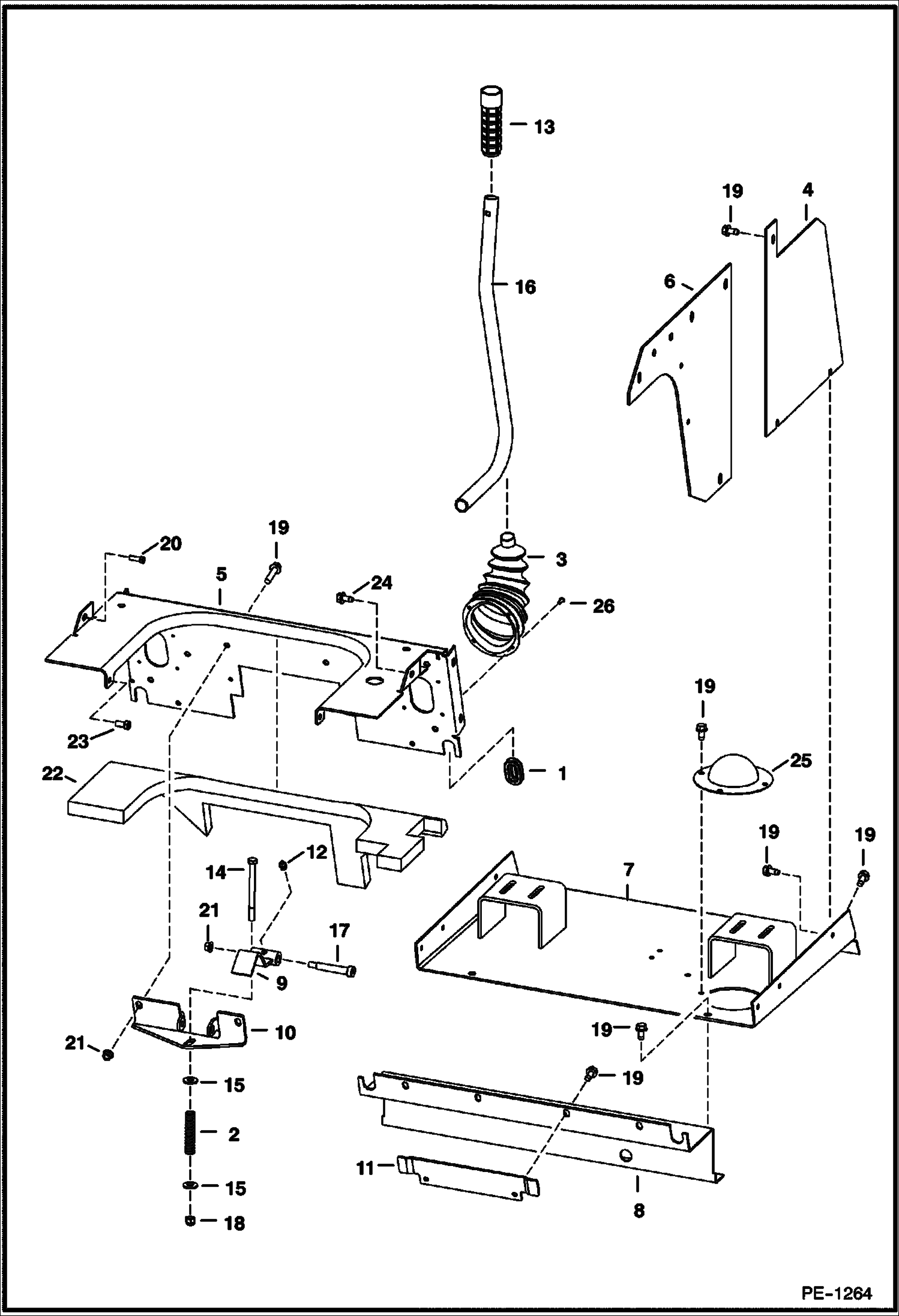

Запчасти Bobcat 900s PANELS MAIN FRAME

1

6577961

GROMMET

2

6505082

SPRING

3

6532127

BOOT

4

6597501

PANEL side

5

7106707

SHIELD Also Order 6734520 cover - Was 6718305 - A

6

6807202

PANEL side

7

6808130

FLOOR Was 6805868 - A

8

6808111

COVER lever - Was 6805870 - A

8

6809567

COVER lever

9

6806304

ARM

10

6806308

BRACKET

11

6806838

SHIELD

12

10H25

FITTING, GREASE 5

13

6702621

GRIP

14

17C672

BOLT

15

25E18

WASHER

15

25E18

WASHER ahc

15

6571991

GUIDE ahc

16

6702543

LEVER, STEERING

17

38C840

BOLT

18

59D6

NUT

19

84G3712

BOLT 5

20

84G3716

SCREW 5

21

95D6

NUT

22

6807159

INSULATION strg panel

23

17C612

BOLT 5

24

84G3724

BOLT

25

6565825

CAP dust

26

6630207

RIVET 5
