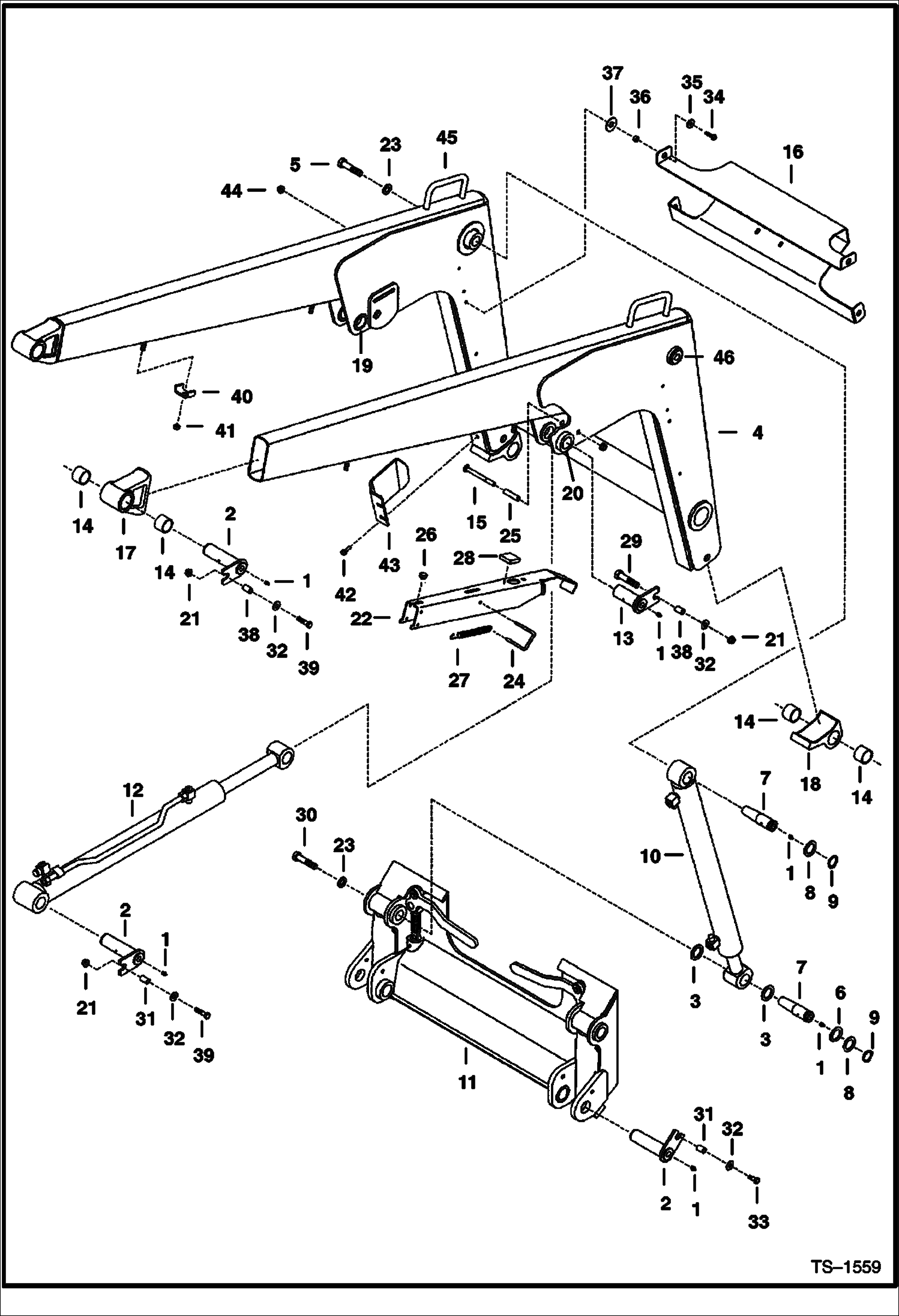

Запчасти Bobcat 900s LIFT ARMS & BOB-TACH MAIN FRAME

1

10H25

FITTING, GREASE 5

2

6597798

PIN

2

6803046

SHIM .134 (3.40 mm) - when needed

2

6803047

SHIM .075 (1.905 mm) - when needed

3

6631067

SEAL, OIL

4

6597770

LIFT ARMS

5

17C1256

BOLT

6

6584873

WASHER .075 '' (1.905mm) - when needed

7

6565864

PIN

8

6584872

WASHER

9

6538285

LOCK RING

10

CYLINDER See Illustration TILT CYLINDER/ B13926 TILT

11

BOB-TACH See Illustration BOB-TACH/ B17207

12

CYLINDER See Illustration LIFT CYLINDER/ B14034 LIFT

13

6597799

PIN

14

6730995

BUSHING, WEAR Was 6670762 - A

15

37C888

BOLT

16

6805922

STEP

17

6802618

PIVOT ASSY Weld On - W/Ref. 14

18

6597492

PIVOT ASSY Weld On - W/Ref. 14

19

6597489

BUSHING Weld On

20

6597488

BUSHING Weld On

21

55D8

NUT

22

6804533

STOP Lift Arm

23

6576033

WASHER

24

6714810

PIN Retainer

25

6802566

SPACER

26

6519178

BUMPER

27

6579072

SPRING

28

6704436

PAD Rubber - Self Adhesive

29

37C836

BOLT

30

17C1248

BOLT

31

6597768

SPACER Was 6628799 - A

32

27E8

WASHER 10

33

31C832

BOLT

34

37C880

SCREW

35

25E21

WASHER 5

36

6626323

BUSHING

37

6568498

WASHER friction

38

6597768

SPACER

39

17C836

BOLT

40

6800262

CLAMP

41

59D8

NUT 5

42

84G3720

BOLT

43

6802017

BRACKET hose

44

95D8

NUT

45

6568559

HANDLE grab

46

6810036

BUSHING Weld On
