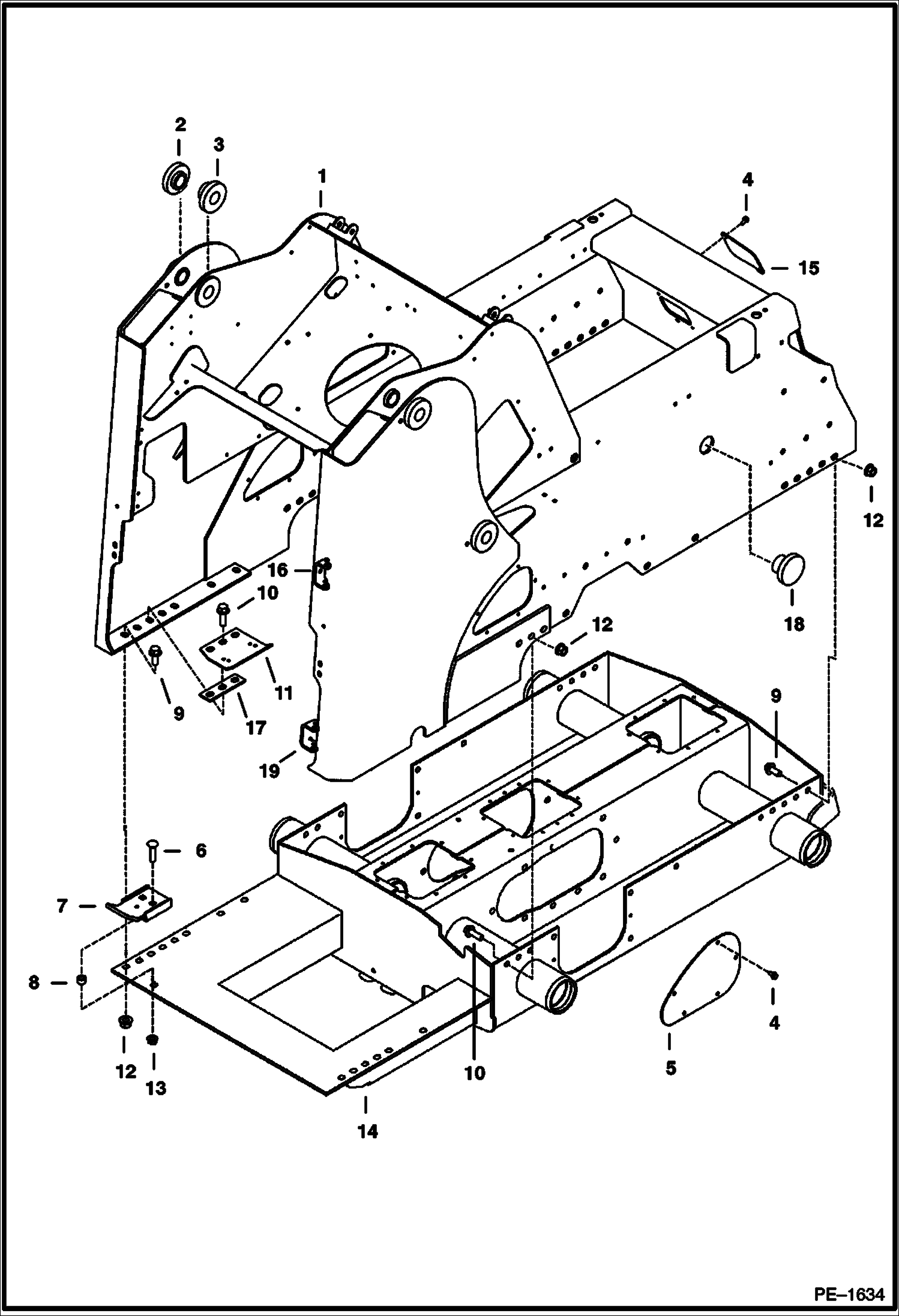

Запчасти Bobcat 900s MAIN FRAME & ATTACHING PARTS MAIN FRAME

1

6805582

MAIN FRAME

2

6597280

BUSHING

3

6597281

BUSHING

4

84G3712

BOLT 5

5

6805462

COVER

6

37C1040

BOLT

7

6806890

BRACKET

8

6807262

SPACER

9

31C1228

BOLT

10

31C1236

BOLT

11

6597595

BRACKET

12

53D12

NUT Was 83D000012B - B

13

53D10

NUT

14

CHAINCASE See Illustration DRIVE TRAIN/ B17209

15

6737088

COVER, ACCESS access - Was 6577812 - A

16

6708987

HINGE, WELD-ON

17

6806893

PLATE 3 hole spacer

18

6718796

PLUG

19

6806563

BRACKET Weld On
