Запчасти Bobcat 900s SECONDARY AUXILIARY HYDRAULIC KIT (Right Side) ACCESSORIES & OPTIONS

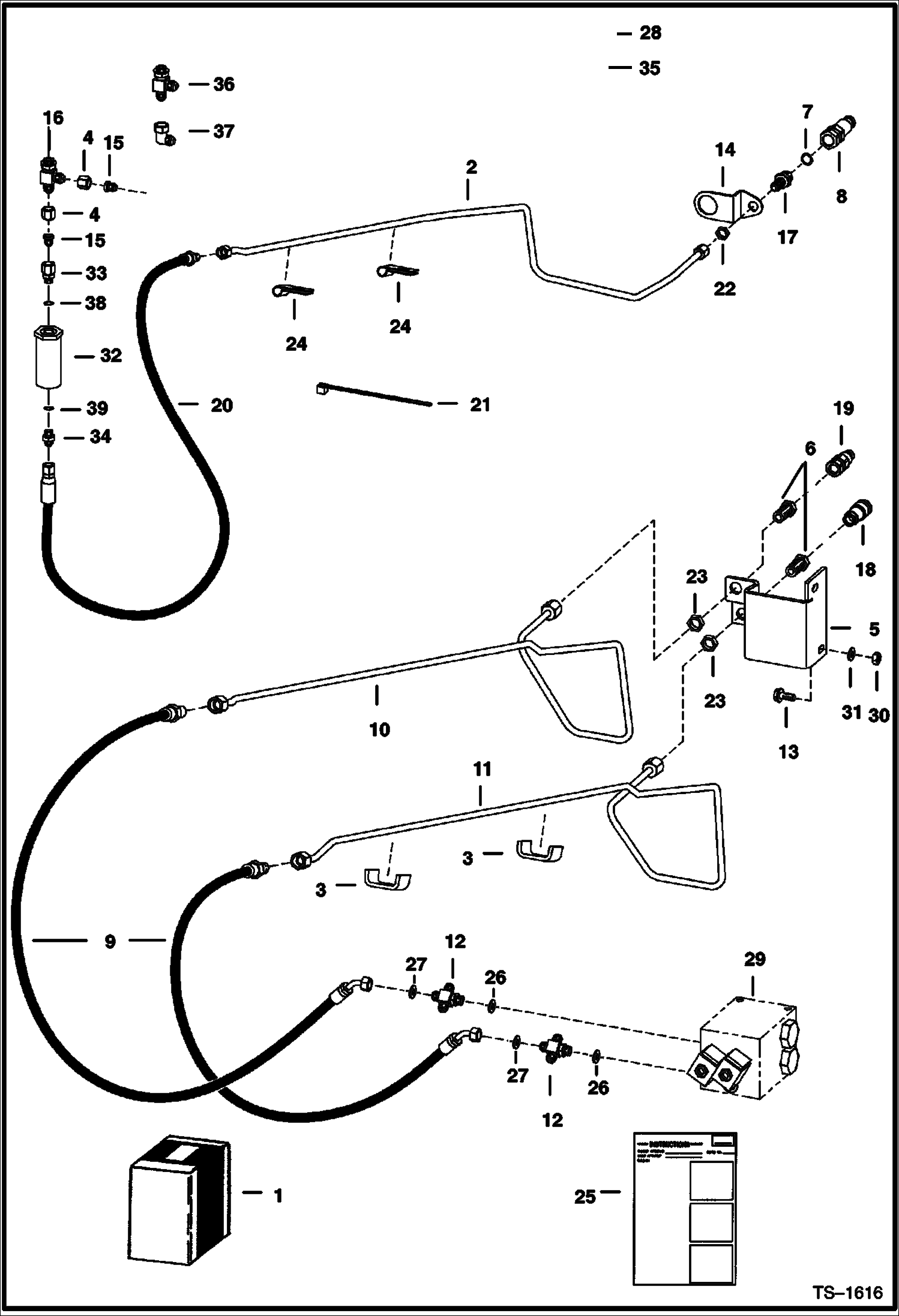

Схема запчастей Bobcat 900s - SECONDARY AUXILIARY HYDRAULIC KIT (Right Side) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6803596

KIT W/Ref. 2 - 24

2

6806046

TUBELINE Was 6803583 - A

3

6803571

CLAMP

4

80F6

NUT

5

6805463

BRACKET Was 6803528 - A

6

6804256

FITTING W/Ref. 7 - Was 6672186 - D

7

6669659

O-RING

8

6667806

COUPLER male - FF

9

6803534

HOSE

10

6803531

TUBELINE

11

6803532

TUBELINE

12

6803607

FITTING W/Ref. 26, 27

13

37C872

SCREW Was 84G003712B - B

14

6803585

BRACKET

15

9K3

REDUCER Was 9KV00003B - A

15

97K6

O RING flare end

16

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 22 - Was 21KV00006B - A

16

97K8

O-RING flare end

17

6726479

ADAPTER W/Ref. 35 - Was 6711628 - A

18

6667803

COUPLER, FF FEMALE

19

6667804

COUPLER, FF MALE

19

6669657

SEAL KIT

20

6803584

HOSE

21

6624289

STRAP, TIE

22

86F5

NUT

23

61E06

NUT

24

30H62

CLIP

25

6900515

INSTRUCTIONS

26

55K12

O'RING

27

75K6

O-RING

28

99K8

O-RING

29

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362 DIVERTER

30

95D8

NUT

31

25E21

WASHER 5

32

6661022

FILTER, OIL HYD IN-LINE

33

6673243

CONNECTOR W/Ref. 38

34

15KB0606

FITTING, HYD CONNECTOR W/Ref. 39

34

97K6

O RING flare end

35

79K8

O RING 10

36

21K5

TEE G-Series - W/Ref. 38

37

11K5

FITTING G-Series - Was 11KN00005B - A

37

97K6

O RING flare end

38

79K6

O RING 10

39

99K6

O RING

Выбрано товаров: 44
