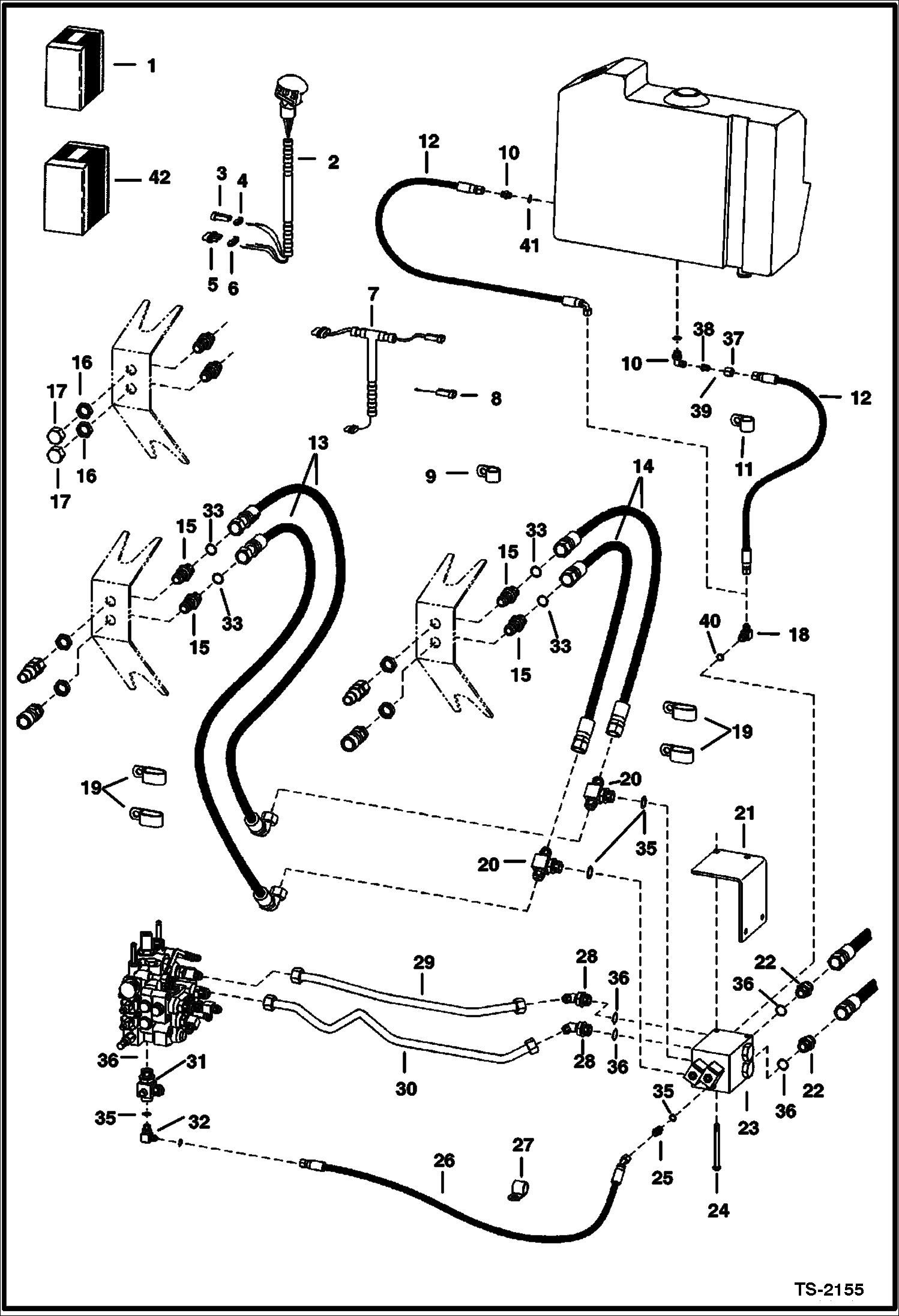

Запчасти Bobcat 900s REAR AUXILIARY HYDRAULIC KIT ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 2-14 & 19-32 - Order 6800087

2

6680414

HANDLE ASSY. 2-switch - Was 6705921 - A

3

6640699

CONNECTOR

4

6640700

LOCK

5

6641179

CONNECTOR 2-pin

6

6641180

LOCK Use W/ 2-pin connector

7

6710435

HARNESS

8

HARNESS NLA - ground wire - not required - Was 675729 - A

9

30H38

CLIP

10

17KB0808

FITTING, HYD ELBOW C-Series - Was 17KV00006B - A

10

15K5

FITTING G-Series

11

30H35

CLAMP 10

12

6802064

HOSE C-Series - Was 6628047 - A

12

6708597

HOSE G-Series - Was 6714875 - A

13

6802377

HOSE

14

6802378

HOSE

15

6802043

FITTING W/face seal o-ring

15

58K012

O-RING 10 face seal

16

86F5

NUT jam

17

36K5

CAP

18

17KB0404

FTG HYD ELBOW 90 Was 17KV00003B - A

18

97K4

O'RING flare end

19

31H42

CLIP

20

43E606

FITTING W/Ref. 38

20

55K12

O'RING face seal

21

6627877

MOUNT

22

83K8

ADAPTER

23

6665572

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362 DIVERTER

24

17C680

BOLT

25

41E606

ADAPTER

25

55K12

O'RING face seal

26

6802379

HOSE

27

30H23

CLAMP

28

44E1212

HYD FTG W/Ref. 39

28

55K18

O'RING

29

6803086

TUBELINE

30

6803087

TUBELINE

31

6803088

CROSS HYDR

32

42E606

FITTING

32

55K12

O'RING face seal

33

FITTING NLA - restrictor - Was 6672340 - A

34

6803999

KIT dump restrictor

35

6900421

INSTRUCTIONS

36

75K8

O RING 10

37

75K10

O RING 10

38

75K6

O-RING

39

75K12

O'RING 10

40

80F6

NUT

41

9K2

ADAPTER W/Ref. 42 - Was 9KV00002B - A

42

97K4

O'RING flared end

43

99K4

O'RING boss end
