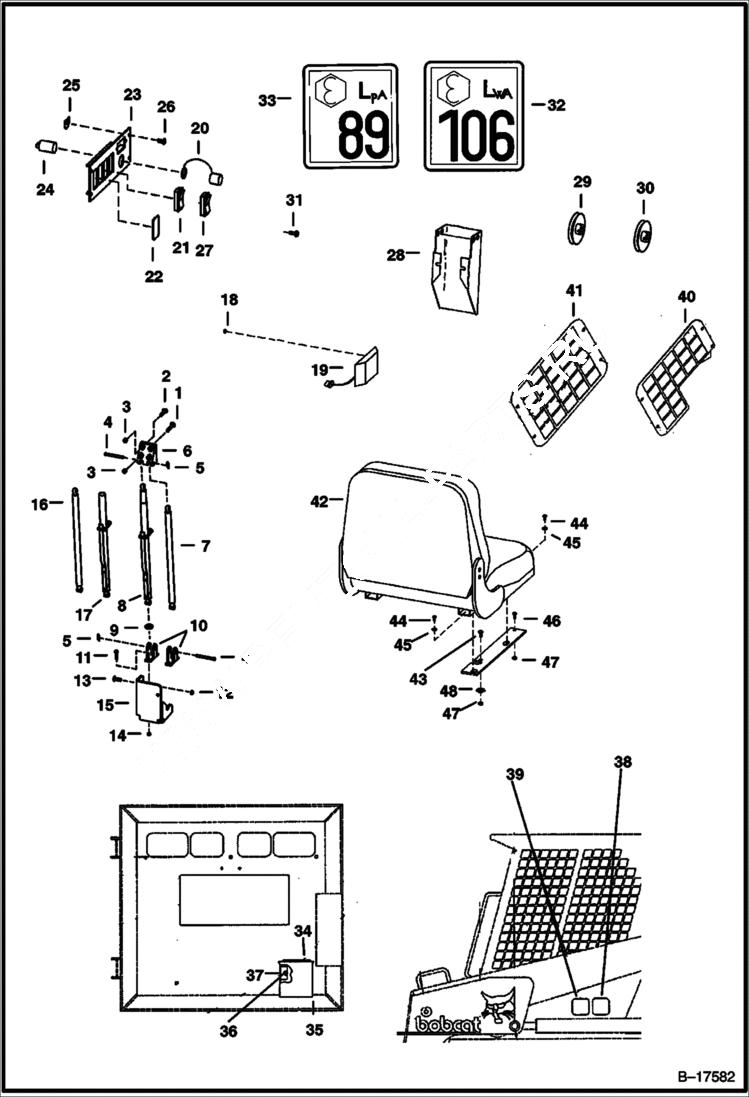

Запчасти Bobcat 900s EUROPEAN ACCESSORIES ACCESSORIES & OPTIONS

1

10C636

BOLT

2

10C624

BOLT

3

97D6

NUT 10

4

6586772

PIN

5

6631418

RING, RETAINING

6

6589814

BRACKET

7

6670730

GAS SPRING KIT includes clevis on both ends

8

GAS SPRING NLA

9

6701174

WASHER

10

6706349

MOUNT

11

35C516

BOLT 10

12

61D6

NUT 5

13

9G620

BOLT 5

14

87D5

NUT

15

6802958

BRACKET

16

6664205

GAS SPRING also order 6675257, clevis

16

6675257

CLEVIS

17

6708189

TUBE

18

6664221

RETAINER

19

6680326

LIGHT Was 6664368 - A

19

6665367

BULB

19

6665353

SWITCH

20

6664224

CAP

21

6668742

SWITCH travel control

22

6665314

PLUG Was 6719038 - A

23

6710527

PANEL

24

6664223

OUTLET

25

6669091

CLIP

26

6669224

BOLT

27

6665315

SWITCH headlight

28

6804249

TOOL HOLDER

29

6672764

PULLEY gear pump

30

6672765

PULLEY fan drive

31

84G3712

BOLT 5

32

6579406

DECAL noise warning

33

6579385

DECAL noise warning

34

6700743

SPRING

35

6804249

TOOL HOLDER storage

36

37C620

BOLT

37

57D6

NUT 5 Was 55D000006B - B

38

6579406

DECAL noise warning

39

6579385

DECAL noise warning

40

6804412

SCREEN fan R.H.

41

6804413

SCREEN fan L.H.

42

SEAT See Illustration SEAT & SEAT BAR/ B17571

43

37C516

BOLT

44

17C508

BOLT

45

25E16

WSHR

46

17C512

BOLT 5

47

61D5

NUT

48

6571991

GUIDE
