Запчасти Bobcat 900s DECALS ACCESSORIES & OPTIONS

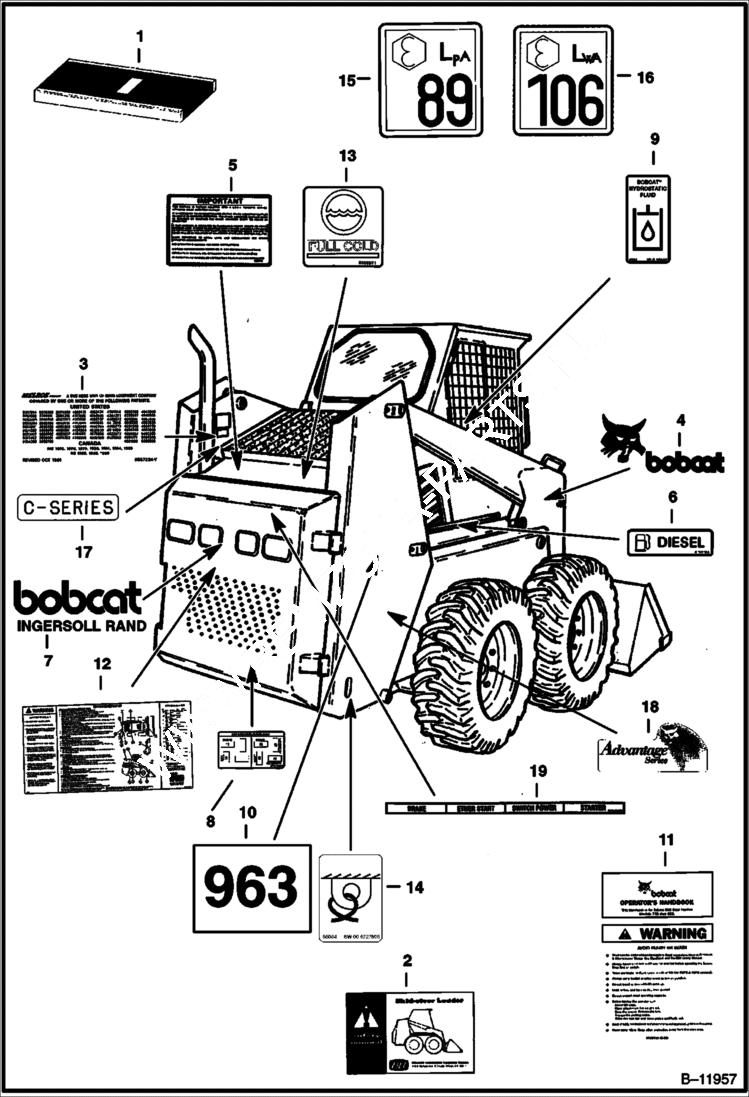

Схема запчастей Bobcat 900s - DECALS ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6900514

KIT See Illustration DECALS/ B11949 - Ref. 2-16 & Ref. 3-17 on this page

1

6804129

KIT translation

1

6804130

KIT See Illustration DECALS/ B11949 - Ref. 3-6, 8-12, 14, 15 & 20 & Ref. 8, 9, 12, 13, 15, 16 & 18 on this page

2

6556500

MANUAL EMI SAFETY - LOADER not in kit

3

DECAL NLA - patent - Was 6557224 - C

4

6559070

DECAL bobcat - R.H.

4

6559071

DECAL bobcat - L.H.

5

6560573

DECAL spark arrestor

6

6700388

DECAL diesel

7

DECAL NLA - Logo - Was 6727311 - A

8

6803593

DECAL Fuse - NON-AHCS, model

8

6804769

DECAL Fuse - AHCS

9

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

10

6627802

DECAL model 963

11

6708154

HANDBOOK, OPERATOR'S W/WIRE ROPE

11

6708154ES

KIT handbook - w/wire rope - spanish

11

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

11

6558310

SLEEVE wire rope

12

6804345

DECAL service & filters

13

6708929

DECAL, COOLANT propylene glycol

14

6727595

DECAL Was 6595014 - B

15

6578368

DECAL, OPERATION push to release stop

16

6706558

DECAL, OPERATION lift arm support

17

6708207

DECAL C-Series

18

6718273

DECAL Advantage Series R.H. - not on kit - Was 6718272 - D

Выбрано товаров: 25
