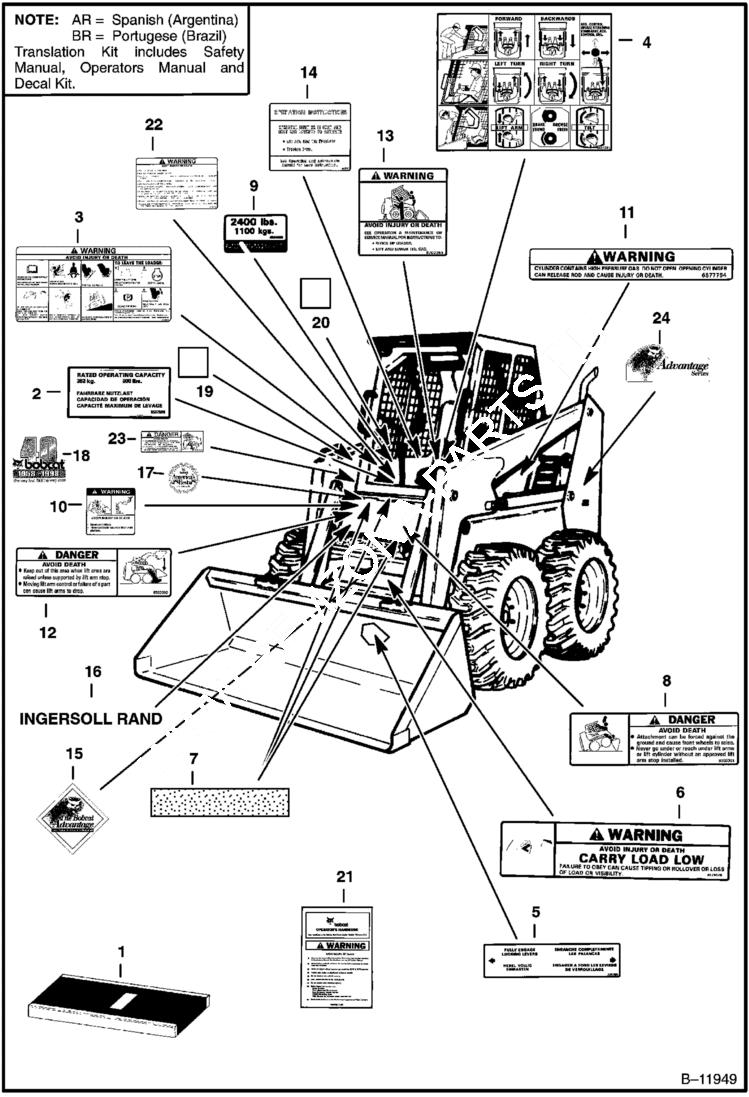

Запчасти Bobcat 900s DECALS ACCESSORIES & OPTIONS

1

6900514

KIT See Illustration DECALS/ B11957 - W/Ref. 3-17 & W/Ref. 2-16 on this page

1

6804129

KIT translation

1

6804130

KIT See Illustration DECALS/ B11957 - W/Ref. 8, 9, 12, 13, 15, 16 & 18 & W/Ref. 3-6, 8-12, 14, 15 & 20 on this page

1

6804130AR

KIT decal - SEE NOTE

1

6804130BR

KIT decal - SEE NOTE

1

6804130JP

KIT decal - SEE NOTE

1

6804129AR

KIT translation - SEE NOTE

1

6804129BR

KIT translation - SEE NOTE

2

6735140

DECAL, THROTTLE Was 6557565 - A

3

6579510

DECAL warning

4

6703723

DECAL operations

5

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

6

6579528

DECAL, WARNING carry load low

7

6567651

SAFETY TREAD 3.5'' (88,9mm) x 25'' (635mm) - Main Frame

7

6800009

SAFETY TREAD 10'' (254mm) x 25.5'' (647,7mm) - Pedal Mount

7

6567653

SAFETY TREAD 8.85'' (244,8mm) x 21.65 (549,9mm) Lift Arm Stop

7

6805923

SAFETY TREAD 7.4'' (187,9mm) x 20.0 (508mm) Lift Arm Stop

7

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

8

6702301

DECAL, DANGER

9

7177809

DECAL, ROC 1361 kg (3000 lbs) - Was 6732698 - A

9

6806947

DECAL counterweight kit

10

6710358

DECAL warning - no riders

11

6577754

DECAL, WARNING 5 gas spring

12

6702302

DECAL, DANGER

13

6706809

DECAL lift lock

14

6707255

DECAL seat & seat bar operating - W/ seat sensor - Was NLA - D

14

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

14

6717639

DECAL seat & seat bar operating - AHC - Was 6717043 - A

15

6718275

DECAL Bobcat Advantage

16

DECAL NLA - Ingersoll Rand - Was 6727310 - A

17

6705088

DECAL America's best

18

6715912

DECAL 40th Anniversary

19

6711840

DECAL bypass lift lock valve

20

6703727

DECAL horn/aux

21

6708158

HANDBOOK, OPERATOR'S W/WIRE ROPE instruction - AHCS

22

6803932

DECAL warning - brake

23

6717343

DECAL, DANGER

24

6718274

DECAL Advantage Series - L.H.- not in kit - Was 6718271 - D
