Запчасти Bobcat 900s COUNTERWEIGHT KIT (3650 lb. - Side Mounting) ACCESSORIES & OPTIONS

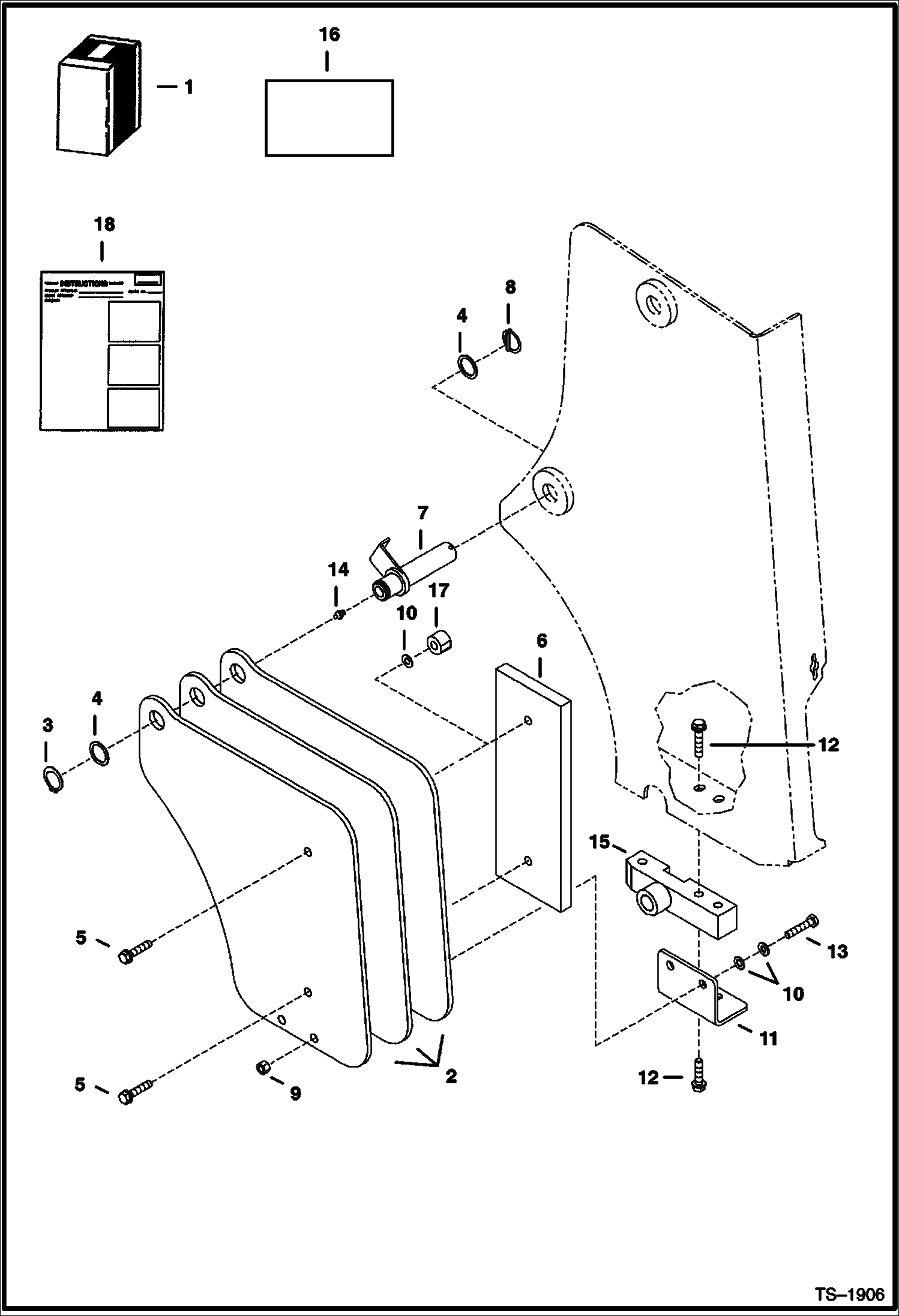

Схема запчастей Bobcat 900s - COUNTERWEIGHT KIT (3650 lb. - Side Mounting) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT NLA - counterweight - Order components - Was SALES (6805760) - A

2

6805763

WEIGHT 78.5 lbs (34,5 kg)

3

6668787

RING retaining

4

6803046

SHIM

5

31C1236

BOLT 3500 lb capacity

5

31C1236

BOLT 3650 lb capacity

6

6806430

PLATE 62 lbs (27,3 kg)

7

6715876

PIN ASSY

8

6510020

LOCK PIN

9

53D12

NUT Was 83D000012B - B

10

27E12

WASHER

11

6805761

MOUNT L.H.

11

6805762

MOUNT R.H.

12

31C1228

BOLT

13

17C1248

BOLT

14

10H25

FITTING, GREASE 5

15

6803245

BUSHING

16

6807724

DECAL 3650 lb capacity - Was 6806947 - A

16

6806071

DECAL 3500 lb capacity

17

6805764

BUSHING 3500 lb capacity

18

6900833

INSTRUCTIONS

Выбрано товаров: 21
