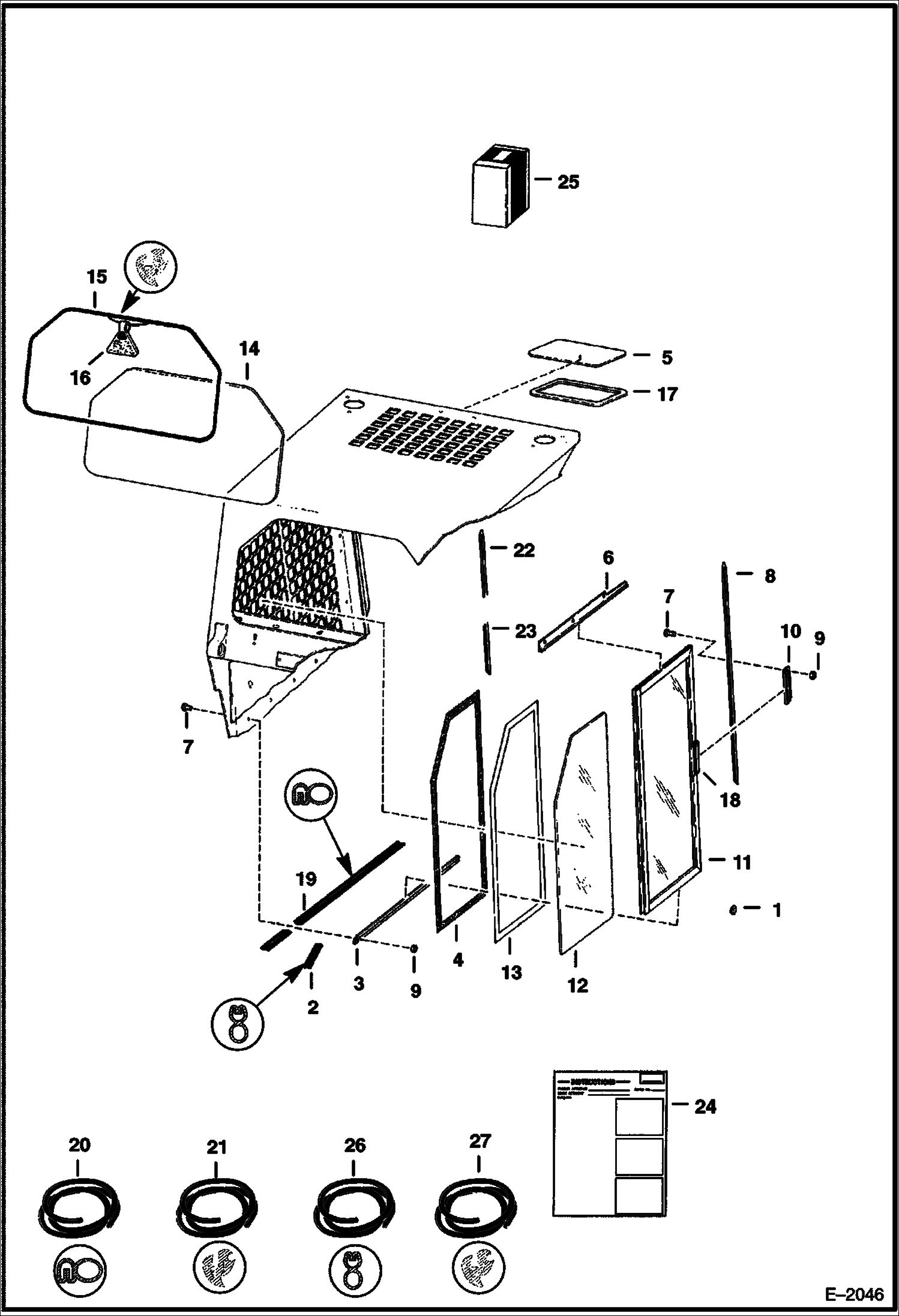

Запчасти Bobcat 900s CAB WINDOWS ACCESSORIES & OPTIONS

1

6632265

PLUG button

2

SEAL NLA - 8''(203,2 mm) long - Order Ref. 26

3

6661689

TRACK LH

3

6661690

TRACK RH

4

6631549

HOOK scotchmate

5

6705735

WINDOW Use W/Ref. 17 - 8.6'' x 15.5'' (218,4 mm x 393,7 mm) opening in cab

6

6703160

TRACK LH

6

6703159

TRACK RH

7

35C410

BOLT 5

8

6630919

TRACK R.H.

8

6630918

TRACK L.H.

9

83D4

NUT 10

10

6630924

BRACKET

11

6658143

WINDOW LH

11

6658142

WINDOW RH

12

6702731

WINDOW, CAB

13

6631548

LOOP scotchmate

14

WINDOW NLA - rear - .25'' thick safety glass - 15'' x 27.5 (381 mm x 698,5 mm) - Order 6729730 Window & Ref. 27 extrusion - Was 6701651 - A

14

6729730

WINDOW rear - .25'' thick safety glass - 14.4''x26.84''(365,8mm x 681,7mm)

15

SEAL NLA - 81.5'' (2070 mm) long - Order Ref. 21 or 27

15

CORD NLA - 81.5'' (2070 mm) long - Order Ref. 21 or 27 - Also Order Ref. 16 (6731875 exit tag)

16

6731478

EXIT TAG Was 6559515 - A

17

6664351

SEAL Use W/cab headliner

17

6665012

SEAL Use W/O cab headliner

18

6659949

LATCH

19

SEAL NLA - 24.5''(622mm)long - Order Ref. 20

20

6555351

SEAL bulk - sold per foot

21

6665568

EXTRUSION bulk - sold per foot - Use W/Ref. 14 (NLA/6701651 window) - Was 6658352 - B

21

6554149

CORD, BULK/FT bulk - sold per foot

22

6706744

TRACK LH - top half

23

6706745

TRACK LH - bottom half

24

6566957

INSTRUCTIONS Side Windows

24

6720320

INSTRUCTIONS rear window

24

6720598

INSTRUCTIONS top window

25

KIT SALES #6706993 - Side Window

25

KIT SALES #6702953 - Top Window

25

KIT SALES #6701514 - Rear Window

26

6513152

SEAL bulk - sold per foot

27

6675387

EXTRUSION bulk - sold per foot - Use W/Ref. 14 (6729730 window)

27

6554149

CORD, BULK/FT bulk - sold per foot
