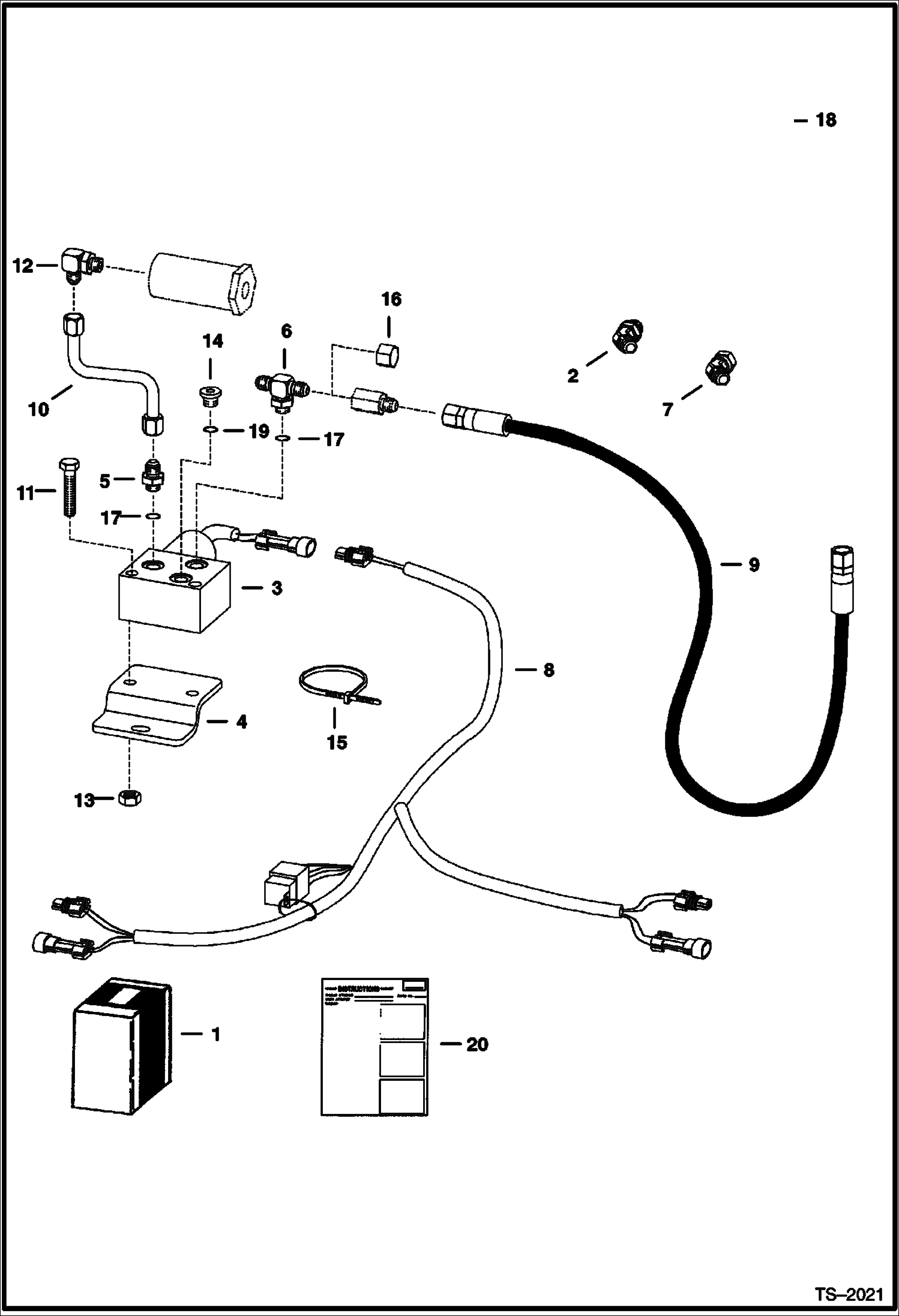

Запчасти Bobcat 900s BRAKE CONTROL KIT ACCESSORIES & OPTIONS

1

6807135

KIT Ref. 2 - 16 & 20

2

18KB0606

FITTING, HYD ELBOW W/Ref. 18 - Was 18KV00005B - A

2

97K6

O RING flared end

3

VALVE See Illustration BRAKE CONTROL VALVE/ PE1017 - NLA - W/ .4375'' threaded ports - Order Ref. 3 (6678150 valve), 15KV00005B ADAPTER, 19KV00005B TEE AND 90KV00005B PLUG - WAS 6674372 - A

3

6678150

VALVE See Illustration BRAKE CONTROL VALVE/ PE1017 W/.5625'' THREADED PORTS

4

6717384

BRACKET relief valve

5

ADAPTER NLA - W/Ref. 17 (99K-4 O-ring) - Use W/Ref. 3 (NLA/6674372 valve) - Was 6718109 - A

5

97K6

O RING flared end

5

15KB0604

FTG HYD S CONNECTOR W/Ref. 17 (99K4 O-ring)

5

ADAPTER NLA - W/Ref. 17 (99K-6 O-ring) - Use W/Ref. 3 (6678150 valve) - Was 15KV-5 - A

5

97K6

O RING flared end

5

15KB0606

FITTING, HYD CONNECTOR W/Ref. 17 (99K6 O-ring)

6

6718183

TEE W/Ref. 17 (99K-4 O-Ring) - W/Ref. 3 (NLA/6674372 valve)

6

19KB0606

TEE W/Ref. 17 (99K-6 O-Ring) - Use W/Ref. 3 (6678150 valve) - Was 19KV00005B - A

6

97K6

O RING flared end

7

12K5

ADAPTER Was 12KN00005B - A

7

97K6

O RING flared end

8

6807072

HARNESS brake

9

6807136

HOSE

10

6807137

TUBELINE

11

17C840

BOLT

12

17KB0606

FITTING W/Ref. 18 - Was 17KV00005B - A

12

97K6

O RING flared end

13

57D6

NUT 5

14

90K3

PLUG W/Ref. 19 (95K-4 O-Ring) - Use Ref. 3 (NLA/6674372 valve) - Was 90KV3 - D

14

90KV5

PLUG W/Ref. 19 (95K-5 O-Ring) - Use W/Ref. 3 (6678150 valve)

15

6665527

TIE

16

36K5

CAP

17

99K4

O'RING tapered boss face

17

99K6

O RING tapered boss face

18

99K6

O RING tapered boss face

19

95K4

O-RING tapered boss face

19

95K5

O-RING tapered boss face

20

6900973

INSTRUCTIONS
